Commercial All-in-One Touch Kiosk Solution with Integrated PC and Internal Locker

LCD Touchscreen Kiosks

(43"-55")

3 Years Warranty
Battery Powered Display
24/7 Usage
Battery Powered Display
Dual OS
Battery Powered Display
Anti Fingerprint/ Smooth Gestures
Battery Powered Display
Commercial Grade IPS panel
Battery Powered Display
Internal Locker
Battery Powered Display
No External PC Required
Battery Powered Display
Landscape/Portrait Orientation
Battery Powered Display
Rear Connections
Battery Powered Display
Integrated Speakers
Battery Powered Display
Lifetime Technical Support
Battery Powered Display
10 Touch Points
Battery Powered Display
PCAP Touch
Battery Powered Display
Integrated WI-Fi
Battery Powered Display
No items found.

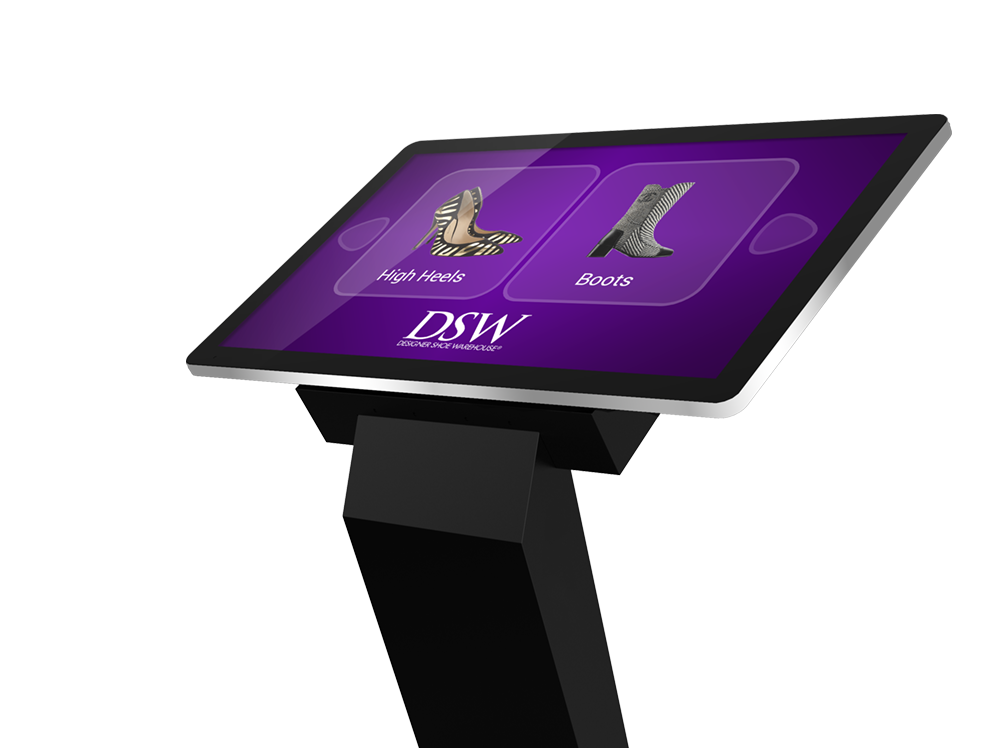

All-in-One Touch Kiosk

This all-in-one interactive display combines the best in PCAP Touch Screen technology with a stylish and secure kiosk. The screen resembles a giant tablet with the edge to edge glass tempered front and aluminium bezel. Designed for use in commercial applications the easy to use ergonomic design allows users to interact with the screen perfectly. The striking design, along with the built in dual OS PC, sets this solution apart from other touch screens on the market both in terms of functionality and aesthetics.

Dual OS

Experience the most versatile commercial touch screen kiosk on the market. With both Android and Windows operating systems built in to the integrated PC it cannot be beaten on flexibility; this screen has it all in one convenient package.

PCAP Touch

State of the art Projected Capacitive interactive technology offers the most responsive touch experience available while featuring sleek edge-to-edge glass. Designed for commercial applications, PCAP touch technology works by fixing a sensor grid between a layer of cover glass and the LCD panel, when a finger touches the glass the grid detects the coordinates of the touch point. Unlike other touch technologies PCAP is not affected by dust or debris on the screen surface. Our screens boast 10 touch points, allowing for smart phone-like touch gestures and multiple users, as well as offering superior optical quality.

Surface Plasma Treatment

Not only is the front glass face tempered, which makes it more durable and suitable for public use, but it is also plasma treated to give it an oleophobic coating. What this means is that it is more resistant to surface oil and moisture which Reduces the residue left by fingerprints. It also lowers the surface tension and friction, making touch gestures much smoother, improving the overall tactile experience for the user. All this is achieved without having an etched finish which means that the overall optical clarity is maintained to the maximum level.

IPS Panel

Accurately displays image quality and colour depth at a 178° ultra wide viewing angle. There is no fall-off in colour accuracy and no diversion in contrast ratio at wide angles. From bright sunlight to the most challenging lighting environments these displays are designed to reproduce and maintain the ultimate colour temperature for lifelike images. The panel is also optimised for mounting in either landscape or portrait orientation.

LED Backlight

The LED backlight used is not only eco-friendly but also ensures the display has enhanced brightness and contrast. This technology increases the lifespan and reduces the power consumption by around 30%. This form of light technology is mercury free; safeguarding this screen’s eco friendliness.

24/7 Usage

vBuilt with commercial grade panel and components these displays are designed to run 24/7 in constant use; unlike domestic tablets. The panel also has a lifespan of over 70,000 hours of continuous use.

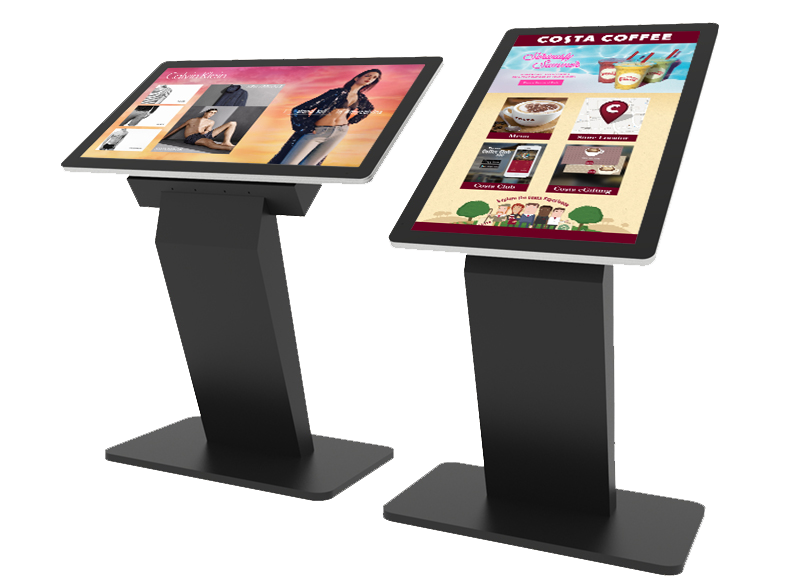

Landscape/Portrait Orientation

The 43” and 50” versions can be installed in portrait orientation as well as the standard landscape. This transforms the kiosk into an even more eye-catching display and makes it really stand out from the crowd.

Videos

Product specs

43 Inch - TAO43E3

  • Display Area
    942.5x530.5
  • Unit Size
    1048.9x1246x534.25
  • Power Consumption (w)
    65
  • Net Weight
    74kg
  • Gross Weight
    81.6kg
  • Package Size
    Box 1: 1003x678x435
    Box 2: 1180x772x230

50 Inch - TAO50E3

  • Display Area
    1076x606
  • Unit Size
    1186x1285x599.4
  • Power Consumption (w)
    75
  • Net Weight
    81.5kg
  • Gross Weight
    91.1kg
  • Package Size
    Box 1: 1003x678x435
    Box 2: 1350x865x260

55 Inch - TAO55E3

  • Display Area
    1211x682
  • Unit Size
    1319.6x1320x660.2
  • Power Consumption (w)
    85
  • Net Weight
    88.15kg
  • Gross Weight
    99kg
  • Package Size
    Box 1: 1003x678x435
    Box 2: 1480x950x250

Panel/Mechanical

  • Resolution
    1920x1080
  • Aspect Ratio
    16:9
  • Brightness (cd/m2)
    450
  • Viewing Angle
    178°

  • Contrast Ratio
    5000:1
  • Colour
    16.7M
  • Footprint
    800x500

Touch

  • Touch Technology
    Projected Capacitive
  • Touch Points
    10
  • Glass Hardness
    7H minimum

AV Inputs/Audio

  • Inputs (when used as monitor)
    HDMI, VGA, RS-232
  • Audio Input (when used as monitor)
    Audio Socket (3.5mm)
  • Audio Output (internal PC)
    Audio Socket (3.5mm)
  • Speaker Typ
    2W, 5Ω (x2)

Power

  • Input Voltage
    AC110~240V (50Hz~60Hz)

Environmental

  • Operating Temperature
    0°C to 50°C
  • Storage Temperature
    -30°C to 60°C
  • Operating Humidity
    10% to 80%
  • Storage Humidity
    5% to 95%

Computer

  • CPU
    Intel® Atom™ (Quad-core) x5-Z8350 Processor (2M Cache, up to 1.92 GHz)
  • RAM
    4GB (DDR3L-RS 1600MHz)
  • Instruction Set
    64-bit
  • Graphic Engine
    Intel® HD Graphics 400 (8th Gen, Supports DirectX11.2, OpenGL4.4 and OpenCL 2.0)
  • Hard Drive/Internal Memory (eMMC)
    64GB
  • USB
    2 x USB 2.0
  • LAN
    10/100/1000 Ethernet
  • Wi-Fi
    802.11b/g/n
  • OS
    Android 5.1.1
    Windows® 8 /8.1 64-bit, Windows® 10 Pro 64-bit
  • Other
    No accessible buttons or controls

Accessories

  • Included
    Remote Control, User Manual, Power Cable,
    USB to USB Cable, Wi-Fi Aerial
