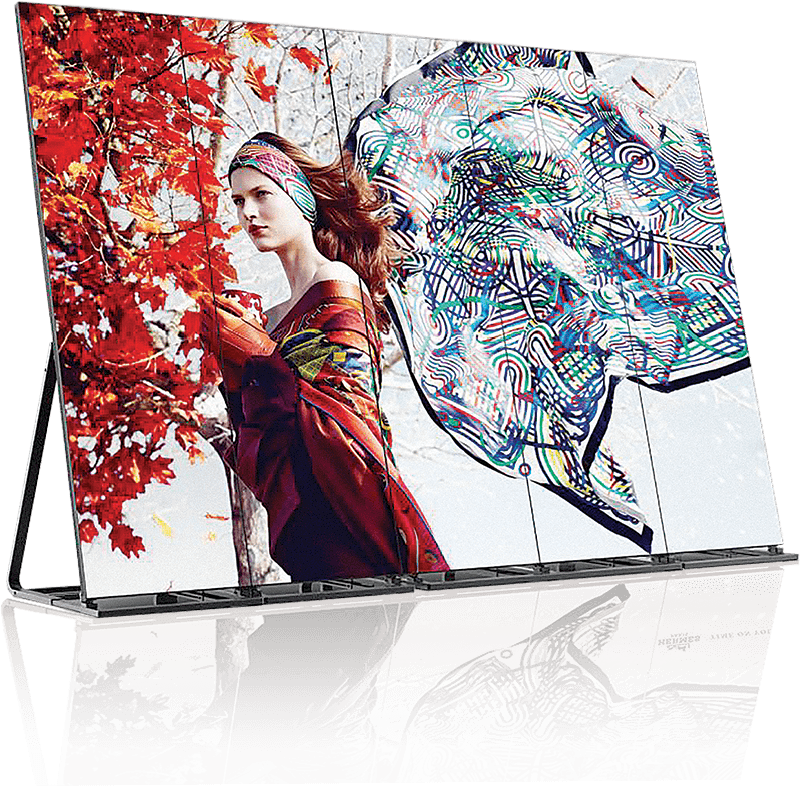

LED Freestanding Digital Poster

Digital directory boards are electronic displays that show directories, maps, or other information to help people navigate a building or campus. They are commonly used in hospitals, schools, office buildings, and other large facilities. Digital directory boards can be used in place of traditional paper directories, or as an additional display in addition to paper directories.

Digital directory boards can be created and managed using specialized software that allows the user to easily update and change the content, such as adding new locations or updating directions. They can also be programmed to display different information at different times of the day, such as office hours or emergency information. Digital directory boards may also include additional features, such as the ability to display images or interactive maps, or to provide real-time information, such as the location of available parking spaces.

Digital directory boards have several advantages over traditional paper directories, including cost-effectiveness, flexibility, and the ability to easily update and change the content. They can also be more engaging and visually appealing, which can help improve the user experience and reduce the burden on staff who would otherwise have to provide directions or answer questions.

Key Features

  • Integrate R&D, design, manufacturing, sales and service.
  • Providing LED poster solutions with unique design and stable performance
  • Light Weight & Ultra-thin Frame
  • Smart Control & Multiple-unit Cascade
  • Wide Applicability, Indoor and Outdoor Models Available
  • Fast Delivery, in stock ready for shipment

Project Videos

Product specs

Product Specifications

Model Type DP2 DP2.5 DP3
Pixel pitch 2mm 2.5mm 3 mm
Destiny 250,000  dots /SQM 160,000 dots /SQM 111,111 dots /SQM
LED Type SMD1515 Mat Black SMD 2121 Mat Black SMD 2121 Mat Black
Pixel type(R / G / B) 1R1G1B (3 in 1) 1R1G1B (3 in 1) 1R1G1B (3 in 1)
Module size 256 x 128mm 160 x 160mm 192 x 192mm
Module Resolution 128*64pixel 64*64pixel 64*64 pixel
Screen Size (H*W) 768*1920mm 640*1920mm 576*1920mm
Feet Size 2.52 * 6.3 feet 2.10* 6.3 feet 1.88 * 6.3 feet
Screen Resolution 384 * 960 pixel 256 * 768 pixel 192 * 640 pixel
Frame Size 1930mm(H)*776mm(W)*45mm(T) 1930mm(H)*648mm(W)*45mm(T) 1930mm(H)*584mm(W)*45mm(T)
Case Material Aluminum Aluminum Aluminum
Weight 46kg/ unit 38kg/ unit 35kg/ unit
Viewing Distance ≥ 2 M ≥ 2.5 M ≥ 3 M
Brightness ≥ 1,000 cd/m² ≥ 1,000 cd/m² ≥ 1,000 cd/m²
Viewing Angle 140° (H)/140°(V) 140° (H)/140°(V) 140° (H)/140°(V)
Refresh rate ≥1,920 Hz (3840HZ optional) ≥1,920 Hz (3840HZ optional) ≥1,920 Hz (3840HZ optional)
Input voltage AC90-240V AC90-240V AC90-240V
Maximum Power Consumption 1170Wper unit 750Wper unit 600W per unit
Average Power Consumption 350Wper unit 220Wper unit 280W per unit
Control method Asynchronous(WIFI/USB/LAN/HDMI) Asynchronous (WIFI/USB/LAN/HDMI) Asynchronous (WIFI/USB/LAN/HDMI)
Temperature Operating (℃) -40°~+75° -40°~+75° -40°~+75°
Working Humidity 10%–95%RH 10%–95%RH 10%–95%RH
IP Rating IP20 IP20 IP20
Application Indoor/ Semi-Outdoor Indoor/ Semi-Outdoor Indoor/ Semi-Outdoor
