LED Indoor Video Wall, QH Series
Deliver seamless, modular LED video walls for large-format indoor enterprise display environments.
Overview
The QH Series is onQ's premium indoor LED video wall system, featuring an independent cabinet frame for precise panel alignment and seamless tiling. Available in fine pixel pitches from P1.5 to P2.5, the QH Series delivers high-brightness, high-resolution LED video wall performance for premium retail, corporate, and hospitality enterprise installations.
Key Features
.avif)
.avif)
Product features
.png)

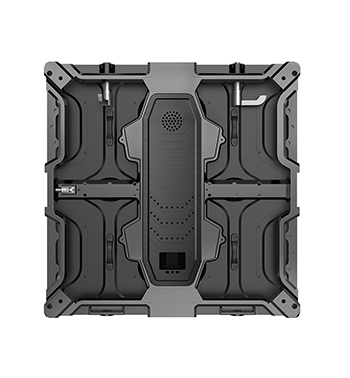

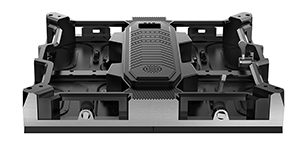

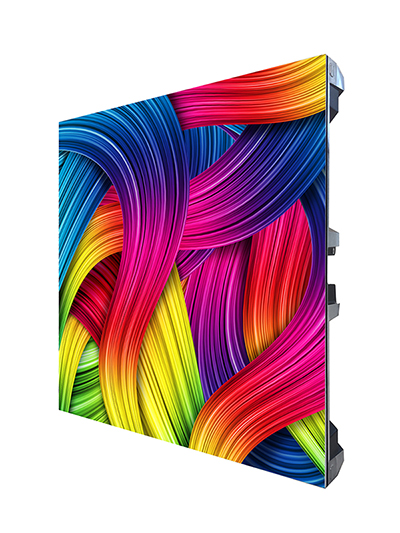

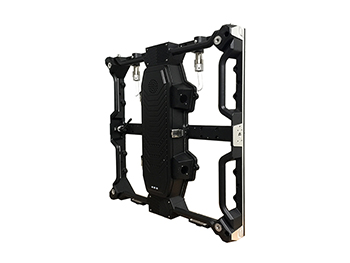

Independent Cabinet Frame for Precise LED Video Wall Alignment
The QH Series features an independent cabinet frame system that enables precise panel alignment during installation and simplifies ongoing maintenance. The independent frame allows individual panels to be removed and replaced without disturbing adjacent panels, reducing maintenance downtime and simplifying the process of panel servicing in installed video wall configurations.
Fine Pixel Pitch for Premium Image Quality
Available in pixel pitches from P1.5 to P2.5, the QH Series delivers the fine pixel density required for close-viewing-distance applications in premium retail, corporate reception areas, and hospitality environments. At these pixel pitches, the display produces smooth, detailed imagery with no visible pixel structure, even at viewing distances of less than one metre.
.avif)
High Brightness for Demanding Lighting Environments
The QH Series delivers high brightness levels that maintain vivid, legible content in brightly lit retail and corporate environments. Automatic brightness adjustment ensures optimal display performance throughout the day, while advanced thermal management maintains consistent brightness and colour accuracy over the full operational life of the display.

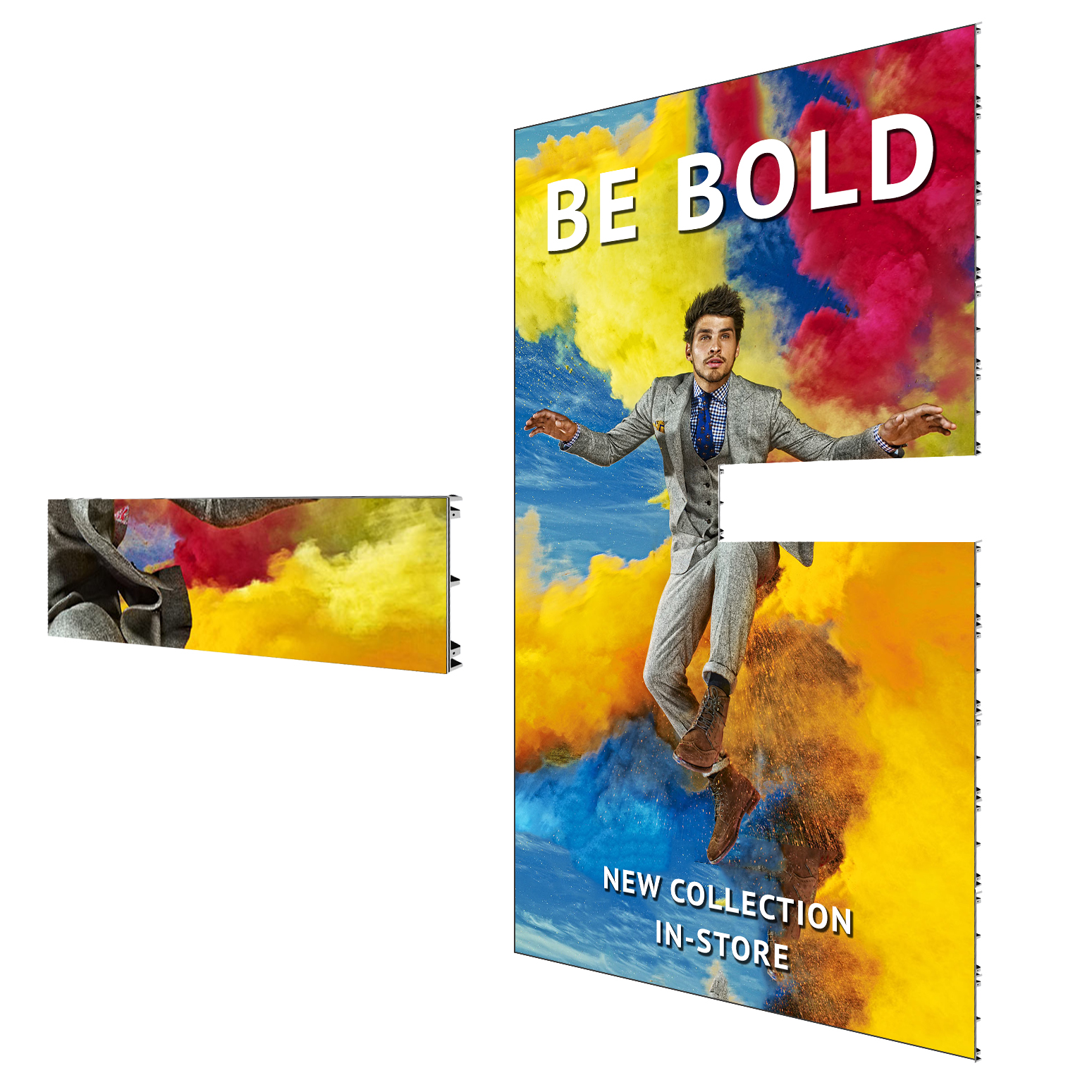

Seamless Modular Tiling for Any Configuration
The QH Series modular cabinet design enables seamless tiling to create video walls of virtually any size and aspect ratio. Each cabinet tiles precisely with its neighbours, eliminating visible seams and creating a continuous display surface. This scalability makes the QH Series suitable for everything from compact 2x2 configurations to large-format video walls spanning entire retail facades.
Applications for QH Series LED Video Walls

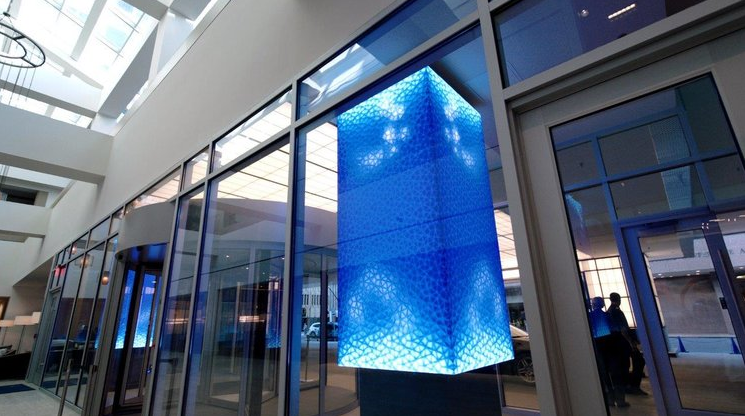

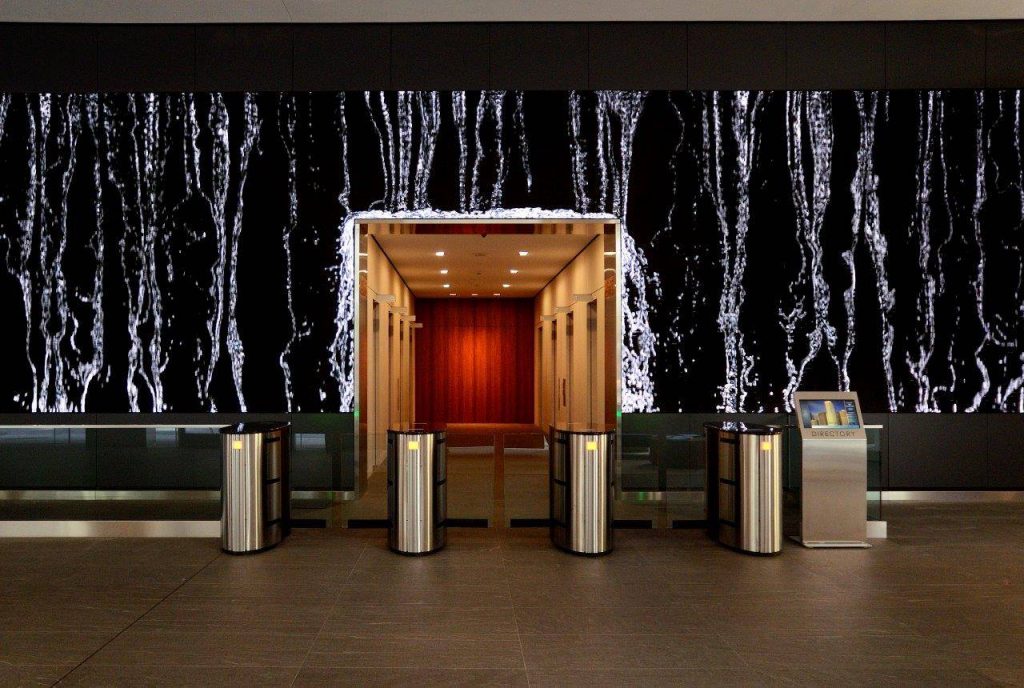

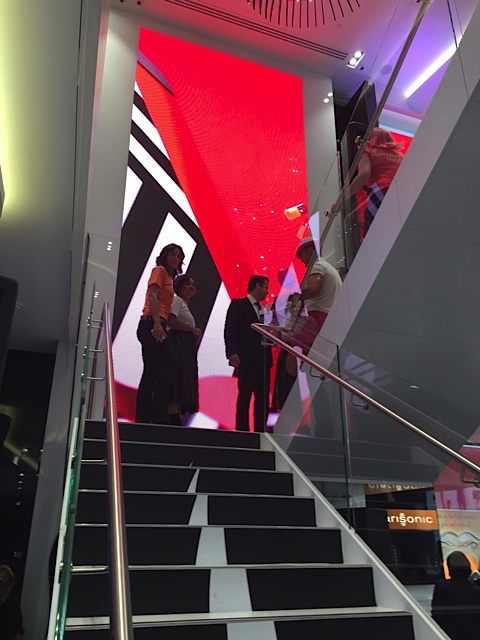

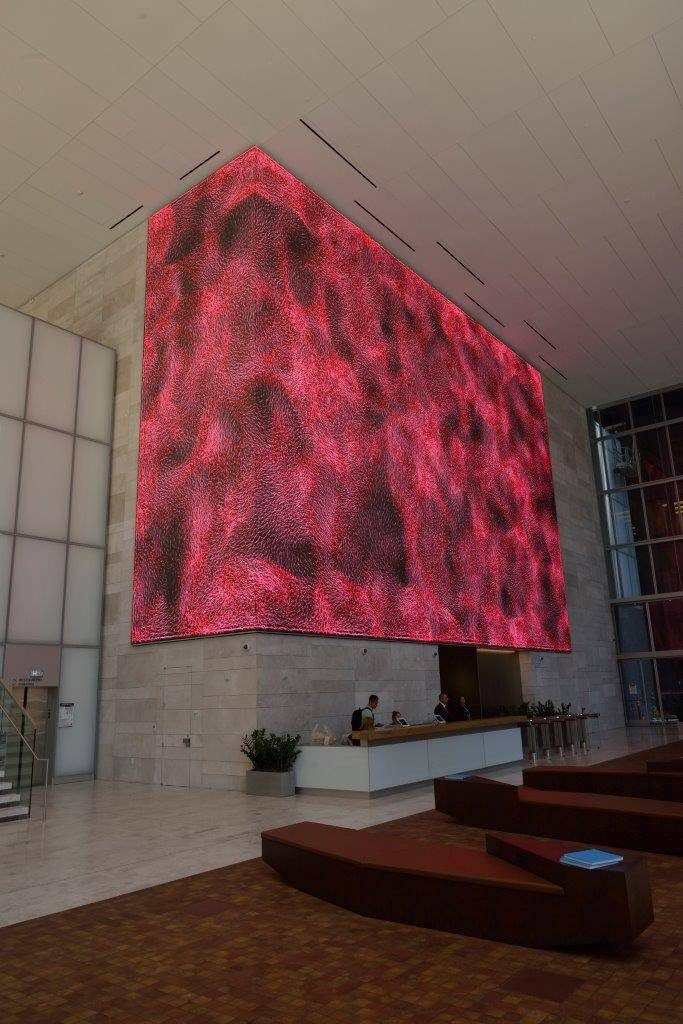

The QH Series is deployed in flagship retail stores and luxury brand environments, corporate reception areas and boardrooms, hotel lobbies and premium hospitality venues, broadcast studios and media environments, museum and gallery installations, and any environment requiring fine-pitch LED quality with the installation precision and maintenance accessibility of an independent cabinet frame system.
iCOOL Heat Dissipation for Reliable LED Video Walls
Our iCOOL heat dissipation system ensures optimal thermal management for LED video walls, even under continuous operation. With a thermal conductivity of 237 W/m-°C, the system efficiently transfers and disperses heat, preventing overheating and maintaining consistent performance. This advanced cooling system is essential for environments that require reliable, long-lasting operation.
The iCOOL system features a zigzag special pattern design that maximises the surface area for heat exchange, allowing cool air to circulate more effectively around the display. This unique design enhances the efficiency of heat dissipation, protecting sensitive components and ensuring that your LED video wall performs flawlessly, even during extended use.
Specification
- Pixel Pitch (mm): 1.68
- Pixel (dot): 608×342
- Pixel Pitch: 1.68, 2.0, 2.66, 3.2
- LED Type: SMD2020
- Module Size(WxH): 256x288 mm
- Pixel Per Module: 80x90 Dots
- Module Weight: 0.5 Kg
- AC Operating Voltage: 100~240
- AC Input Frequency: 50/ 60 hz
- Power Consumption (Max./Avg.): 460/153 W/m²
- Storage Temperature: - 40 ~ + 60 ℃
- Operating Temperature: - 10 ~ + 40 ℃
- Storage Humidity: 10 % ~90 % RH
- Operating Humidity: 10 % ~90 % RH
- IP Rating (Front/Rear): IP30/IP30
- Module Maintenance: Front
- PSU & Others Maintenance: Front
- Panel Installation Type: Front Installation
- Size(WxHxT): 1024x576x56 mm
- Pixels: 320×180 Dots
- Material: Die casting aluminum
- Weight: 15 Kg
- Brightness: 800 nits
- Processing depth: 14 bit
- Display refresh rate: 3840 Hz
- Color Temperature: 3200~9300 k
- Viewing angle(H): 140 deg
- Viewing angle(V): 140 deg
- Drive type: 1/30 Scan
- Pixel Pitch (mm): 2.0
- Pixel (dot): 512×288
- LED Type: SMD2020
- Module Size(WxH): 256x288 mm
- Pixel Per Module: 80x90 Dots
- Module Weight: 0.5 Kg
- AC Operating Voltage: 100~240
- AC Input Frequency: 50/ 60 hz
- Power Consumption (Max./Avg.): 460/153 W/m²
- Storage Temperature: - 40 ~ + 60 ℃
- Operating Temperature: - 10 ~ + 40 ℃
- Storage Humidity: 10 % ~90 % RH
- Operating Humidity: 10 % ~90 % RH
- IP Rating (Front/Rear): IP30/IP30
- Module Maintenance: Front
- PSU & Others Maintenance: Front
- Panel Installation Type: Front Installation
- Size(WxHxT): 1024x576x56 mm
- Pixels: 320×180 Dots
- Material: Die casting aluminum
- Weight: 15 Kg
- Brightness: 800 nits
- Processing depth: 14 bit
- Display refresh rate: 3840 Hz
- Color Temperature: 3200~9300 k
- Viewing angle(H): 140 deg
- Viewing angle(V): 140 deg
- Drive type: 1/30 Scan
- Pixel Pitch (mm): 2.66
- Pixel (dot): 384×216
- LED Type: SMD2020
- Module Size(WxH): 256x288 mm
- Pixel Per Module: 80x90 Dots
- Module Weight: 0.5 Kg
- AC Operating Voltage: 100~240
- AC Input Frequency: 50/ 60 hz
- Power Consumption (Max./Avg.): 460/153 W/m²
- Storage Temperature: - 40 ~ + 60 ℃
- Operating Temperature: - 10 ~ + 40 ℃
- Storage Humidity: 10 % ~90 % RH
- Operating Humidity: 10 % ~90 % RH
- IP Rating (Front/Rear): IP30/IP30
- Module Maintenance: Front
- PSU & Others Maintenance: Front
- Panel Installation Type: Front Installation
- Size(WxHxT): 1024x576x56 mm
- Pixels: 320×180 Dots
- Material: Die casting aluminum
- Weight: 15 Kg
- Brightness: 800 nits
- Processing depth: 14 bit
- Display refresh rate: 3840 Hz
- Color Temperature: 3200~9300 k
- Viewing angle(H): 140 deg
- Viewing angle(V): 140 deg
- Drive type: 1/30 Scan
- Pixel Pitch (mm): 3.2
- Pixel (dot): 320×180
- LED Type: SMD2020
- Module Size(WxH): 256x288 mm
- Pixel Per Module: 80x90 Dots
- Module Weight: 0.5 Kg
- AC Operating Voltage: 100~240
- AC Input Frequency: 50/ 60 hz
- Power Consumption (Max./Avg.): 460/153 W/m²
- Storage Temperature: - 40 ~ + 60 ℃
- Operating Temperature: - 10 ~ + 40 ℃
- Storage Humidity: 10 % ~90 % RH
- Operating Humidity: 10 % ~90 % RH
- IP Rating (Front/Rear): IP30/IP30
- Module Maintenance: Front
- PSU & Others Maintenance: Front
- Panel Installation Type: Front Installation
- Size(WxHxT): 1024x576x56 mm
- Pixels: 320×180 Dots
- Material: Die casting aluminum
- Weight: 15 Kg
- Brightness: 800 nits
- Processing depth: 14 bit
- Display refresh rate: 3840 Hz
- Color Temperature: 3200~9300 k
- Viewing angle(H): 140 deg
- Viewing angle(V): 140 deg
- Drive type: 1/30 Scan
Download our full product specification brochure
Complete the form to download our spec sheet and get full details about this product
Ready to start a conversation?
Speak with our team about digital signage, CMS software, or retail media infrastructure. We’ll help you scope, design, and deploy the right solution.

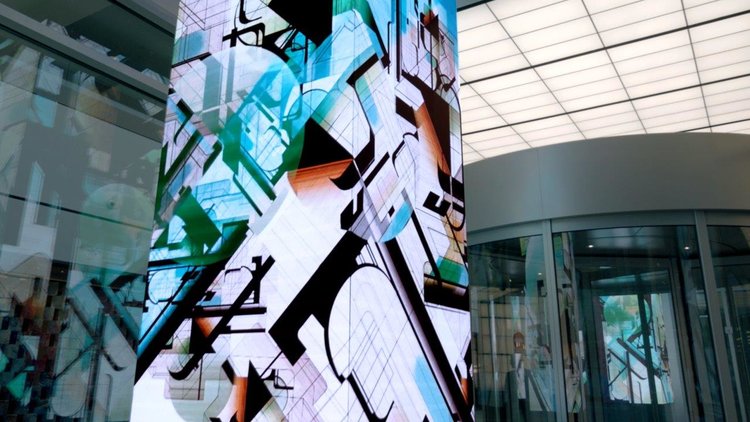

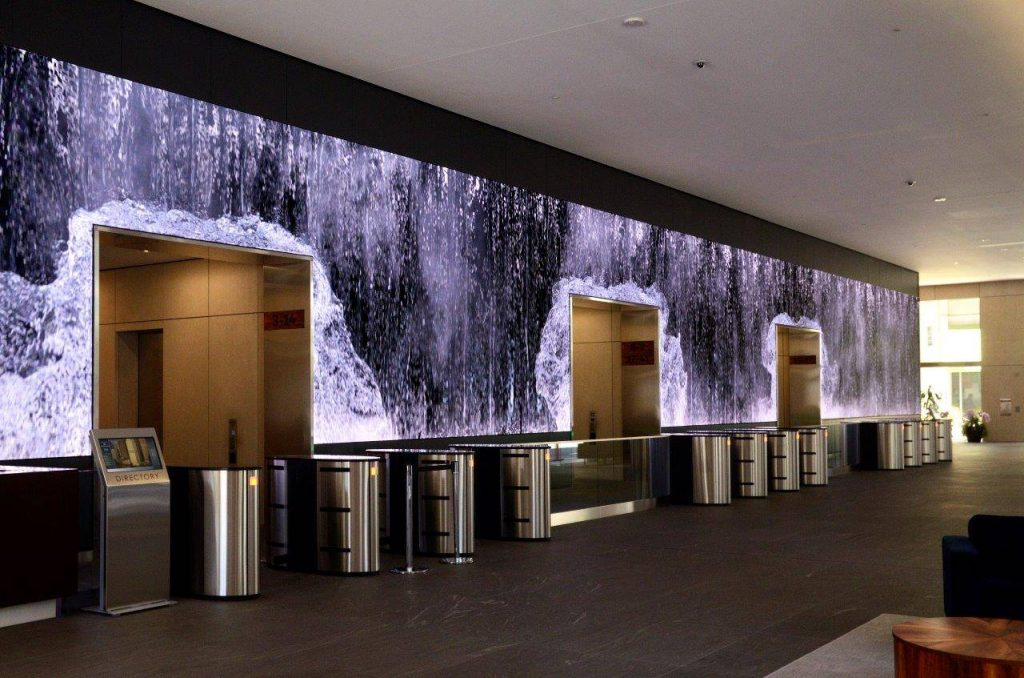

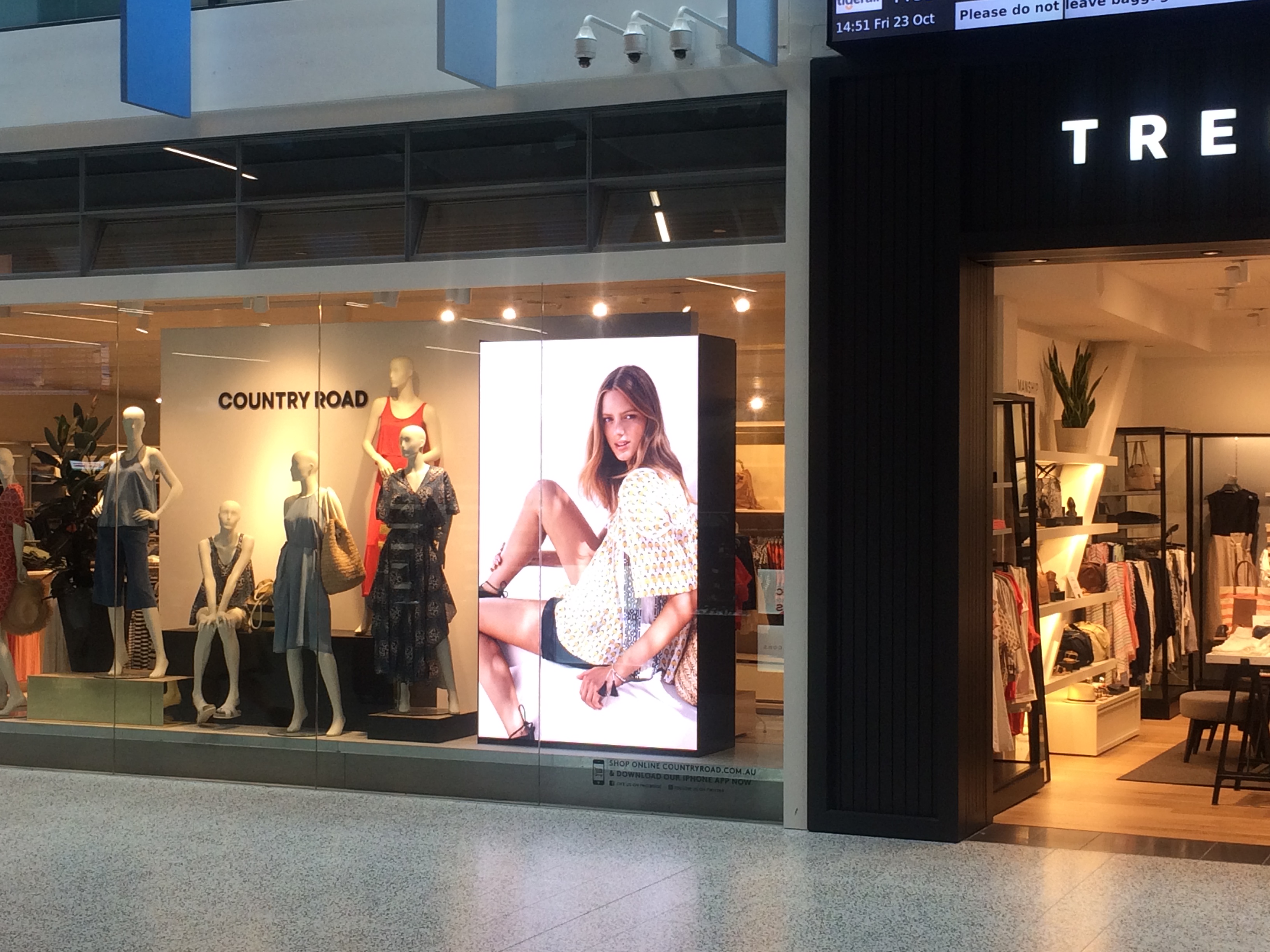

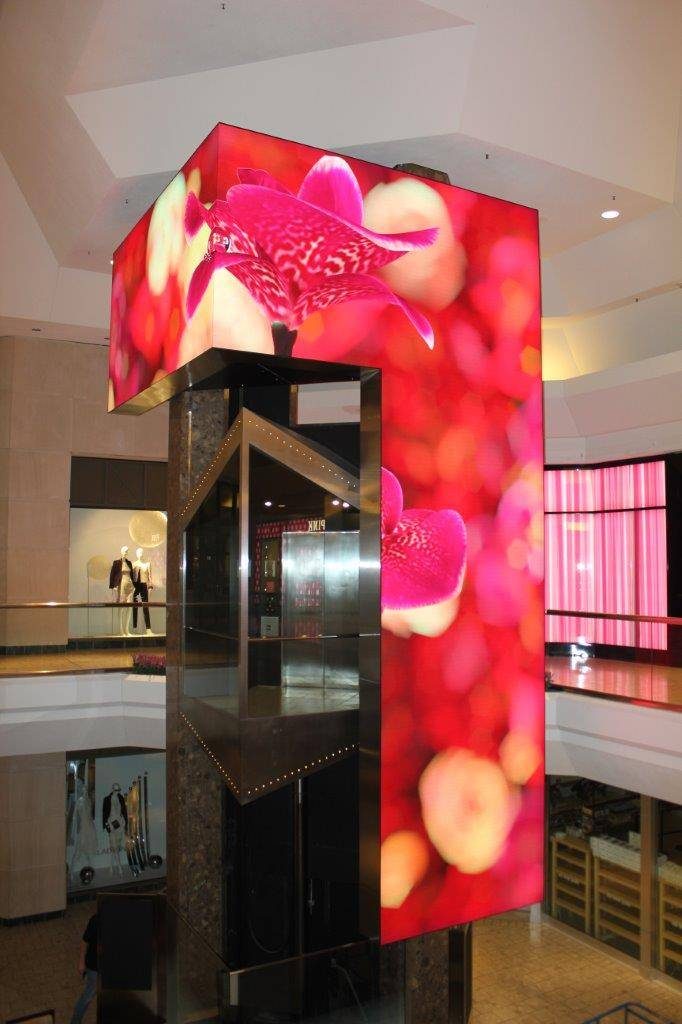

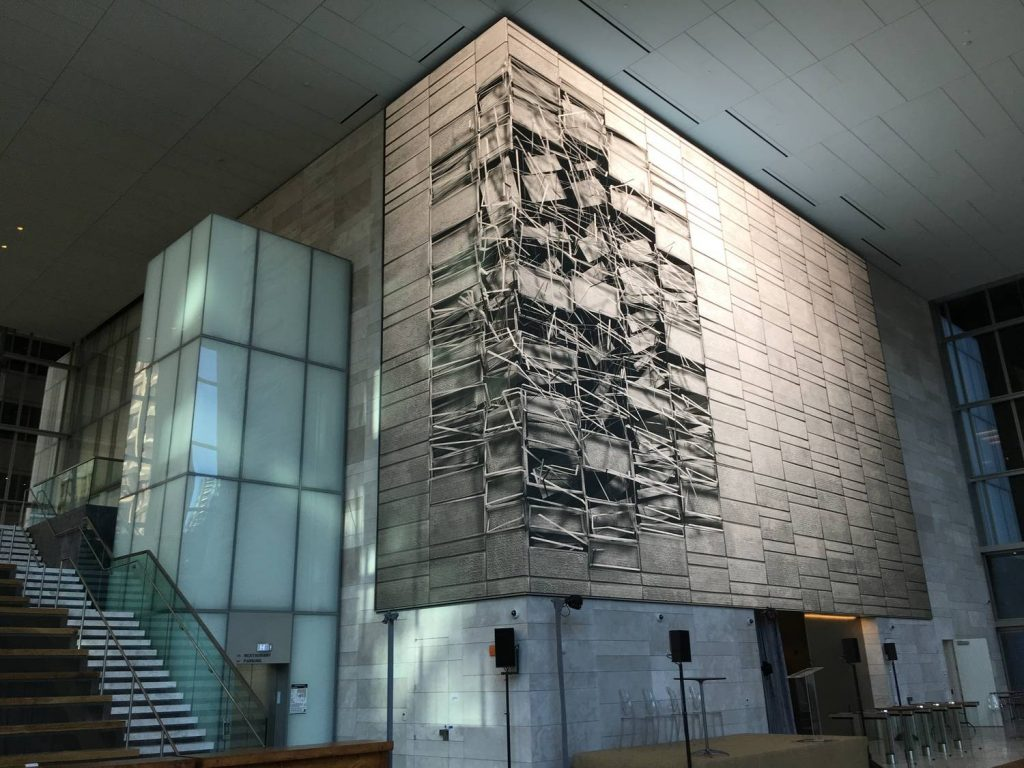

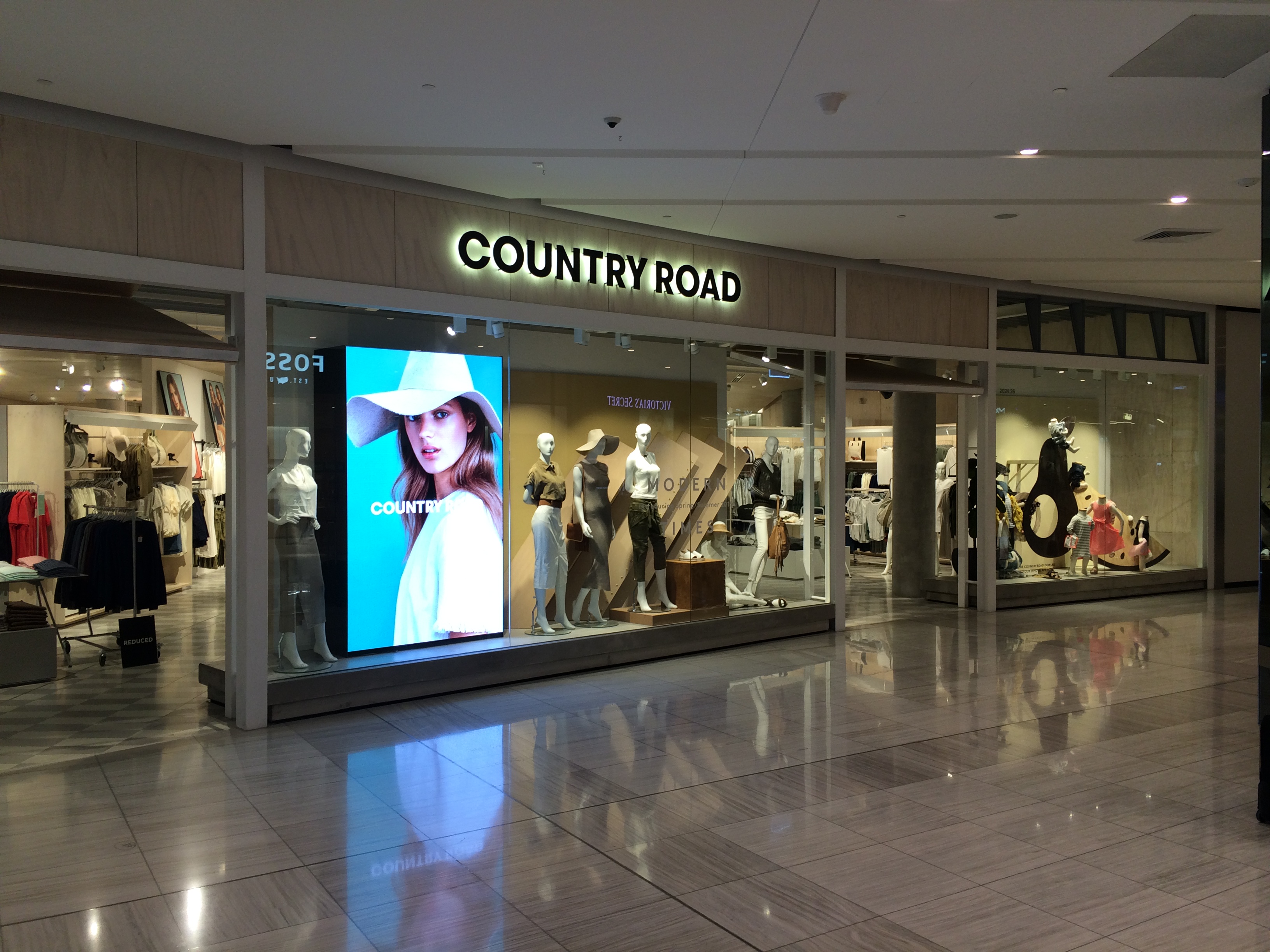

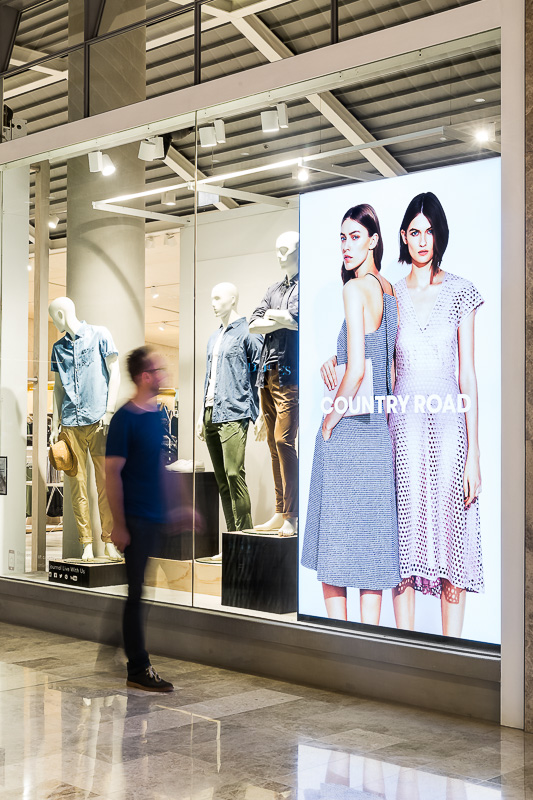

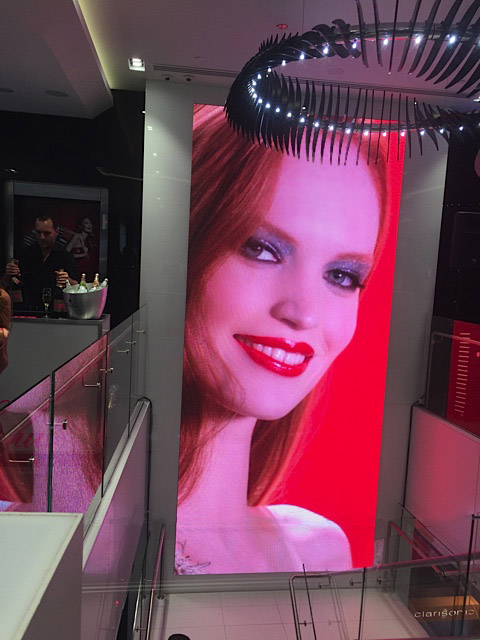

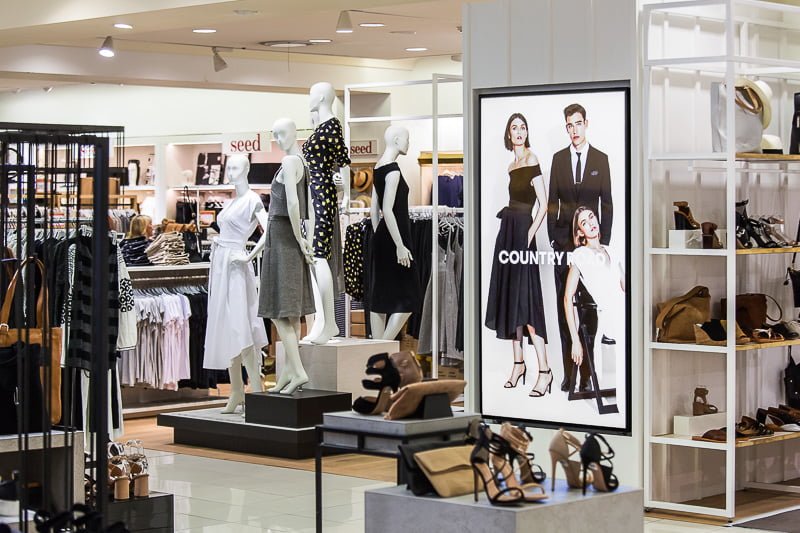

Gallery
Testimonials
"onQ's team went above and beyond for our first and flagship Australian 1R club. Our signs look incredible and feature heavily on social media - almost every Instagram post we see incorporates these. We are forever grateful to the team for suggesting we instal their transparent LED, and more so for proposing that we supersize this. Beyond the signs, what has impressed us the most is the team. onQ respond to our queries, however big or small, within minutes - even to this day (months after the project has completed). Communication is exceptional. The team is exceptional. We look forward to working with them for years to come."
Amanada Mclean
CEO, 1Rebel Australia
The outcome exceeded expectations and we could not have hoped for a better result. Over and above the fact that our screen looks fantastic, I would like to commend your team on the excellent work and timely manner in which you completed the installation.
Director
Biggin & Scott
"Myles and the OnQ Digital team have been key partners for Bunnings, supporting the launch of our retail media network, Hammer Media. The team delivered our initial screens roll out of 300 screens in 150 Warehouses, on schedule and to budget; their expertise and responsiveness made it a seamless process with minimal impact on store operations. We look forward to working with them as we continue to grow.
James Rogers
Retail Media Product Manager, Bunnings Group
David Jones has been working with onQ for over five years and more recently partnering with onQ on our Retail Media Strategy, with the launch of David Jones Amplify. Myles and the onQ team have been very strategic, responsive, flexible and resourceful in providing solutions for our Retail Media Strategy. I personally have found onQ a fantastic partner, providing excellent pricing and diligent service to all of the key teams at David Jones. I would highly recommend onQ as a partner for any instore digital solution.
James Hollerman
Chief Marketing Officer, David Jones
I would like to extend my appreciation to you and your team regarding the professionalism and overall workmanship displayed during the installation of our screens at Grand Prix Mazda Aspley. I truly believe these screens have provided an added dynamic to both our New Car Showroom and Service Reception areas. I have no hesitation in recommending enQ Digital Group to anybody requiring such services
Luke Camilleri
Dealer Principal, Mazda Australia
MMAL has been working with onQ Digital since early 2023 on the rollout of interactive screens and video walls in our national dealer network. During this time, we have always found onQ to be highly professional and responsive to deal with. onQ consistently meets delivery and installation targets within budget. I can highly recommend onQ Digital as a digital solutions provider.
Vince Lombardo
Manager National Franchise Operations Network Strategy & Operations, Mitsubishi Motors Australia Limited
onQ is a leading technology company to work with, having assisted us in getting our store network onto their digital management platform and a rollout of new digital screens across our business. Their elevated service continues to exceed our expectations, along with always catering to our business needs. All experiences with their friendly team are easy, and enjoyable. Recent times have amplified how powerful digital technology is, allowing our business to be super reactive - thanks for the support onQ!
Mathew Kouvas
POLITIX Marketing Specialist, Country Road Group
The onQ team have been exceptional to work with. Their expertise in retail digital signage and their ability to deliver a consistent, high-quality installation across our national network has been outstanding.
Retail Operations Manager
Witchery
Who's this for?

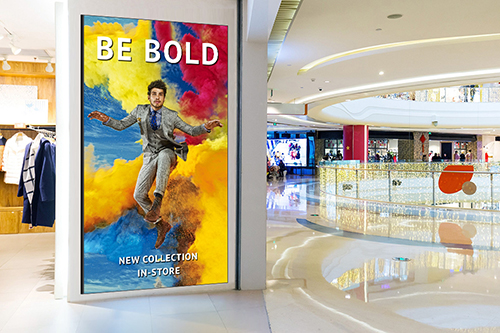

Retail Flagship Stores
Create a centrepiece brand installation with QH Series LED video walls that deliver seamless, high-resolution visuals across the full width of your retail environment.
Corporate Headquarters & Boardrooms
Command attention in executive spaces with QH Series LED walls that display brand content, live data dashboards, and presentation material at impressive scale.
Broadcast & Media Studios
Deploy QH Series LED walls as high-performance virtual production backdrops and studio set elements that deliver broadcast-quality visuals under studio lighting.
Hotels & Convention Centres
Transform event spaces and conference rooms with QH Series LED walls that adapt to keynote presentations, brand activations, and entertainment events.
Sports Clubs & Entertainment Venues
Engage fans and guests with large-format QH Series LED video walls in club lounges, hospitality areas, and entertainment precincts.
Control Rooms & Operations Centres
Monitor multiple data streams, CCTV feeds, and operational dashboards simultaneously on QH Series LED walls built for continuous 24/7 mission-critical use.
Frequesntly Asked Questions
The QH Series is available in fine pixel pitches from P1.25 to P2.5, delivering the high-resolution clarity needed for close-viewing applications. This makes it well suited to premium retail spaces, corporate receptions, and hospitality venues where detailed, vibrant digital signage is essential.
The independent cabinet frame in the QH Series enables precise alignment during installation and simplifies maintenance by allowing individual panels to be removed or replaced without affecting neighbouring units. This design reduces downtime and streamlines servicing, which is especially beneficial for large-scale LED video wall deployments.
Yes, the modular design of the QH Series allows for seamless tiling to create large-format video walls of virtually any size or aspect ratio. This flexibility supports impactful digital signage installations, from compact 2x2 configurations to expansive retail facades, all managed centrally via onQ CMS.
Yes, the QH Series is engineered for continuous 24/7 operation, featuring advanced thermal management to maintain consistent brightness and colour accuracy. This durability makes it ideal for demanding retail and corporate environments where reliable digital signage performance is essential around the clock.
