LED Displays
Indoor

Rolling LED Display

The series ranges from high-definition fine-pitch options down to standard creative resolutions

Intro

Overview

This product is tailored for creative indoor spaces, stages, exhibitions, and architectural integrations where curved, rolled, or unconventional display layouts are required without sacrificing high-resolution playback and easy front-maintenance access.

Details

Product features

Ultra-Flexible Rolling Design

Transform Any Space with Creative Freedom. The innovative rolling LED structure allows the display to curve, roll, and adapt to unique architectural environments. Perfect for immersive experiences, retail activations, exhibitions, and creative installations where traditional flat displays cannot be used.

Faster Maintenance, Less Downtime

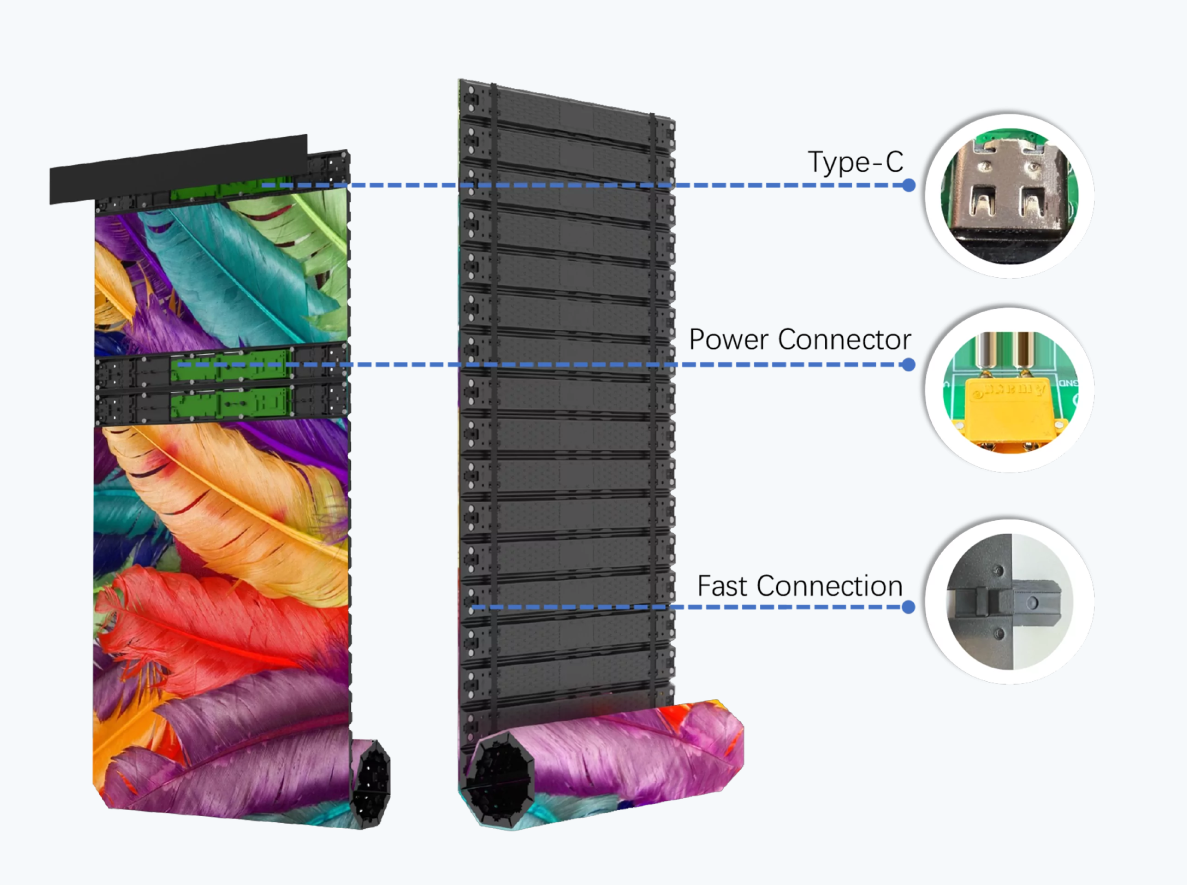

Designed with front-access maintenance, the Rolling Screen allows technicians to service modules quickly and efficiently without rear access. This simplifies installation planning and reduces operational disruptions in commercial environments.

Lightweight Magnesium Alloy Construction

Maximum Performance with Minimal Weight. Built using ultra-light magnesium alloy modules weighing only 550g each, the display is easier to transport, install, and integrate into suspended or complex structures while maintaining excellent durability and reliability.

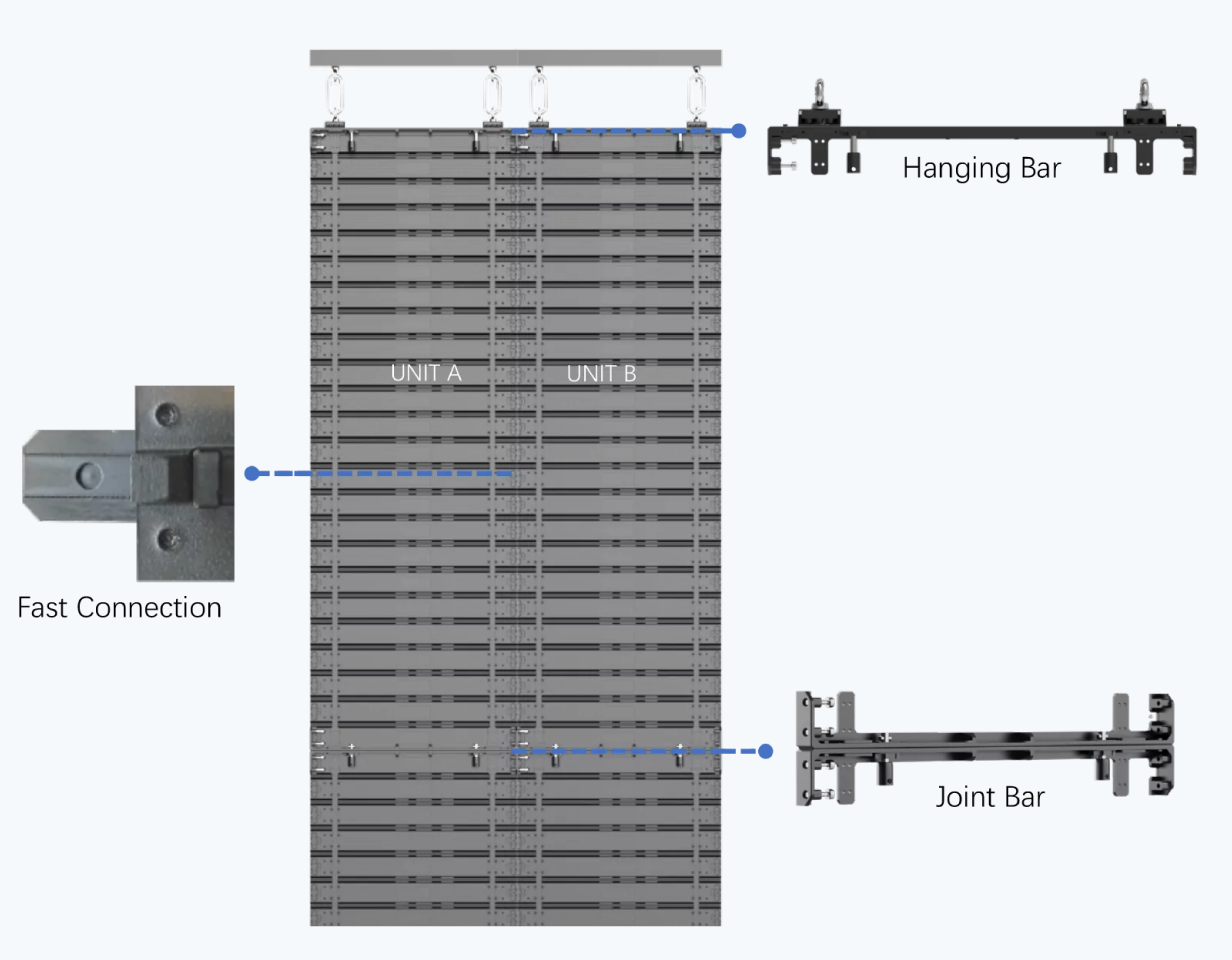

Versatile Mounting & Unlimited Scalability

Designed for Any Application. Whether mounted on walls, ceilings, floors, or suspended installations, the Rolling Screen adapts to virtually any environment. Its modular design supports large-scale configurations up to 16 meters high with no practical length limitation, enabling truly impactful visual experiences.

Compare technical details

Specification

  • Pixel Pitch: 1.25mm
  • LED Configuration: SMD3535
  • Pixel Density: 64,0000 dots/㎡

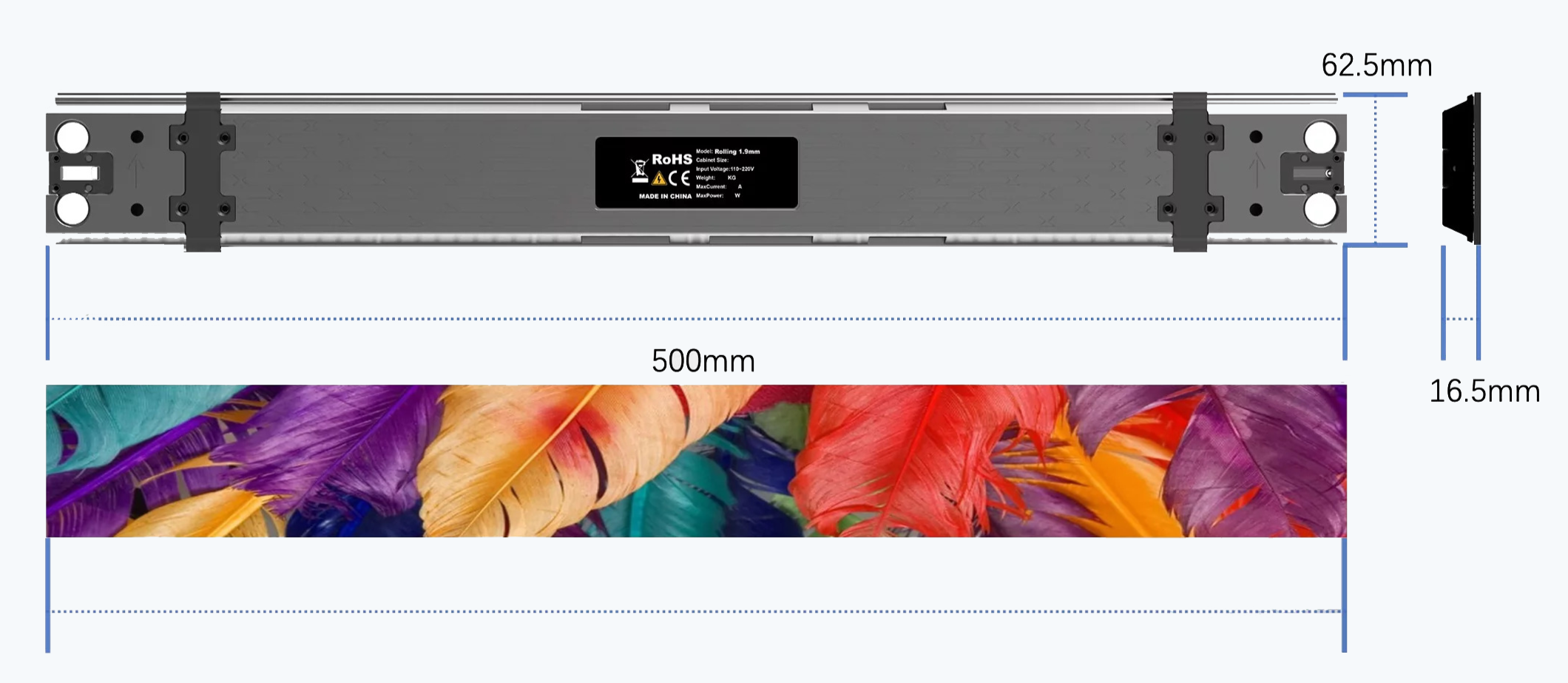

  • Module Size: W500 x H62.5 mm
  • Module Resolution: 400 x 50 dots
  • Scan Mode: 1/50 scan
  • Screen Weight: 12.5 kg/㎡
  • IP Rating: Front IP65 / Back IP21
  • Brightness Intensity: 600 nits
  • Viewing Angle: 140°
  • Color Depth: 12~16 bit
  • Colors: 4,096~65,536
  • Refresh Frequency: 3,840 Hz
  • Application: Indoor
  • Input Voltage: DC24 / 26V
  • Control Mode: Nova / Colorlight
  • Operation Power: AC110V / 220V-50HZ / 60HZ
  • Max. Power Consumption: 400 W/㎡
  • Ave. Power Consumption: 130 W/㎡
  • Lifespan: 100,000 Hours
  • Maintenance: Front Service
  • Pixel Pitch: 1.56mm
  • LED Configuration: SMD3535
  • Pixel Density: 40,9600 dots/㎡
  • Module Size: W500 x H62.5 mm
  • Module Resolution: 320 x 40 dots
  • Scan Mode: 1/40 scan
  • Screen Weight: 12.5 kg/㎡
  • IP Rating: Front IP65 / Back IP21
  • Brightness Intensity: 600 nits
  • Viewing Angle: 140°
  • Color Depth: 12~16 bit
  • Colors: 4,096~65,536
  • Refresh Frequency: 3,840 Hz
  • Application: Indoor
  • Input Voltage: DC24 / 26V
  • Control Mode: Nova / Colorlight
  • Operation Power: AC110V / 220V-50HZ / 60HZ
  • Max. Power Consumption: 400 W/㎡
  • Ave. Power Consumption: 130 W/㎡
  • Lifespan: 100,000 Hours
  • Maintenance: Front Service
  • Pixel Pitch: 1.953mm
  • LED Configuration: SMD 1212
  • Pixel Density: 26,2144 dots/㎡
  • Module Size: W500 x H62.5 mm
  • Module Resolution: 256 x 32 dots
  • Scan Mode: 1/32 scan
  • Screen Weight: 12.5 kg/㎡
  • IP Rating: Front IP65 / Back IP21
  • Brightness Intensity: 700 nits
  • Viewing Angle: 140°
  • Color Depth: 12~16 bit
  • Colors: 4,096~65,536
  • Refresh Frequency: 3,840 Hz
  • Application: Indoor
  • Input Voltage: DC24 / 26V
  • Control Mode: Nova / Colorlight
  • Operation Power: AC110V / 220V-50HZ / 60HZ
  • Max. Power Consumption: 400 W/㎡
  • Ave. Power Consumption: 130 W/㎡
  • Lifespan: 100,000 Hours
  • Maintenance: Front Service
  • Pixel Pitch: 2.5mm
  • LED Configuration: SMD 1515
  • Pixel Density: 16,000 dots/㎡
  • Module Size: W500 x H62.5 mm
  • Module Resolution: 200 x 25 dots
  • Scan Mode: 1/25 scan
  • Screen Weight: 12.5 kg/㎡
  • IP Rating: Front IP65 / Back IP21
  • Brightness Intensity: 750~1000 nits
  • Viewing Angle: 140°
  • Color Depth: 12~16 bit
  • Colors: 4,096~65,536
  • Refresh Frequency: 3,840 Hz
  • Application: Indoor
  • Input Voltage: DC24 / 26V
  • Control Mode: Nova / Colorlight
  • Operation Power: AC110V / 220V-50HZ / 60HZ
  • Max. Power Consumption: 400 W/㎡
  • Ave. Power Consumption: 130 W/㎡
  • Lifespan: 100,000 Hours
  • Maintenance: Front Service
