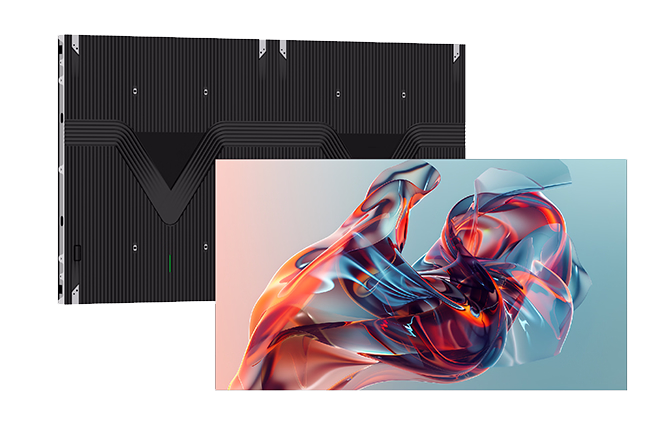

LED - MIP

Watch Video

Beyond Limits, Beyond Expectations

LED - MIP Panel

Ultra-large Size
900 Nits
Front and Rear Mounting
Ultra-thin 39mm
Front Maintenance Design
16:9 Display Ratio

Product Features

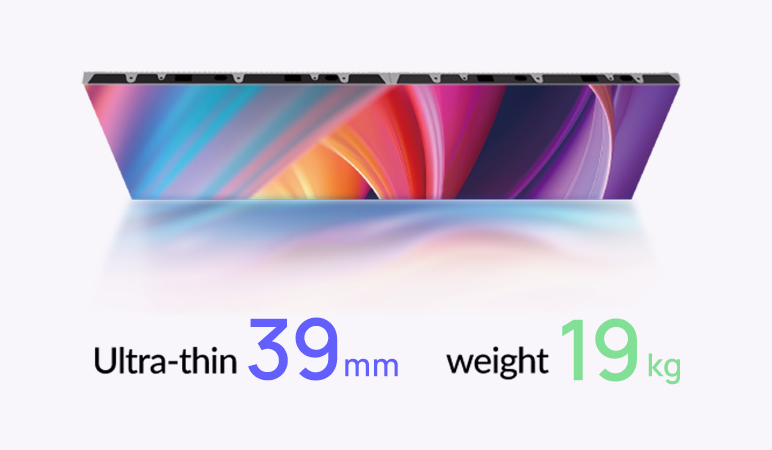

Ultra-large Size, Slim Design

1212x681.75mm Cabinet size, with 39mm thickness and 19kg in weight.

22bit+High Grayscale Resulting in More Natural Detail Transition

Adopting integrated row-column driver IC to ensure high-quality display at low brightness and higher grayscale up to 22bit+ in high grayscale mode.

MIP Technology Leads the Display Revolution

Ultimate color accuracy, flawlessly reproducing every authentic detail.

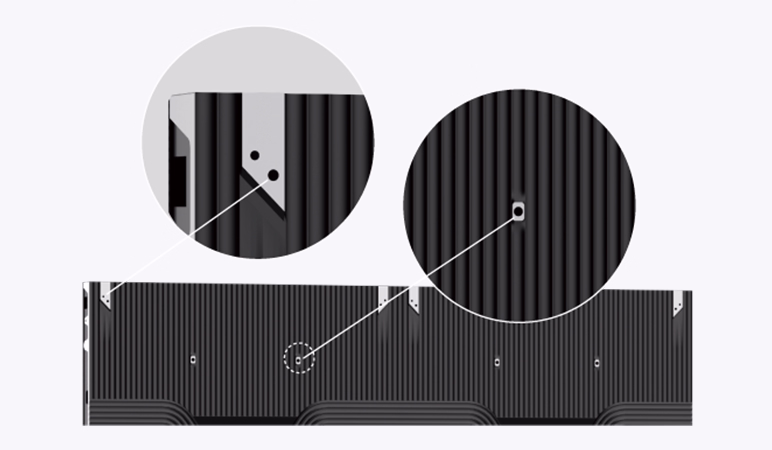

Three-axis Six-way Adjustment

The customized connectors combined with the magnets on the cabinet allow the module to adjust in three axes and six directions, ensuring a perfectly flat screen surface.

Bi-directional Front and Rear Mounting for Easy Installation

The cabinet supports front and rear bi-directional installation, suitable for various installation environments.

Receiver Card Backup, Multiple Protection

The receiver card supports dual backup. If the signal receiver fails, it will automatically switch to the backup receiver card to ensure normal display and provide protection for continuous display.

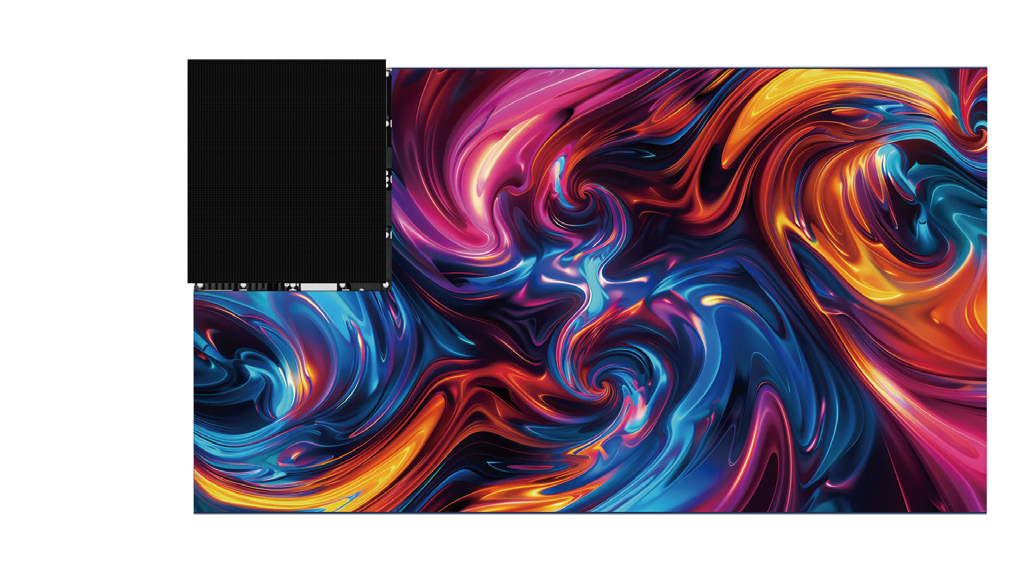

Full Front Maintenance Design

No need to reserve maintenance channel, saving installation space, more convenient installation and maintenance.

Three-axis Six-way Adjustment

The customized connectors combined with the magnets on the cabinet allow the module to adjust in three axes and six directions, ensuring a perfectly flat screen surface.

Gallery

No items found.

Specifications

onQMIP-55
  • Pixel Pitch(mm): P0.9469
  • Resolution: 1280*720‍
  • Panel Technology: MIP
  • Unit Size(W x H x Dmm): 1212 x681.75 x39
  • Surface Treatment: Matte black fnish
  • Brightness (nits): 900
  • Contrast Ratio: Up to 1, 000, 000:1
  • Color Temperature(K): 7500(Adjustable)‍
  • Frame Rate(Hz): 60
  • Refresh Rate(Hz): 3840
  • Working Voltage: AC:100~240V,50/60Hz
  • Power Consumption Max (W/m2): 320‍
  • Power Consumption AVG (W/m2): 110
  • Lifetime (Hours): 100000
  • Operating Temp(C): -10~+50
  • Humidity Range (%RH): 10-80(Non-condensing)
  • Unit Weight(kg): 19
    • ‍
See Full SpecsheetDownload Full Specsheet
