LED Flexible

Indoor Full-color Flexible LED Display Module

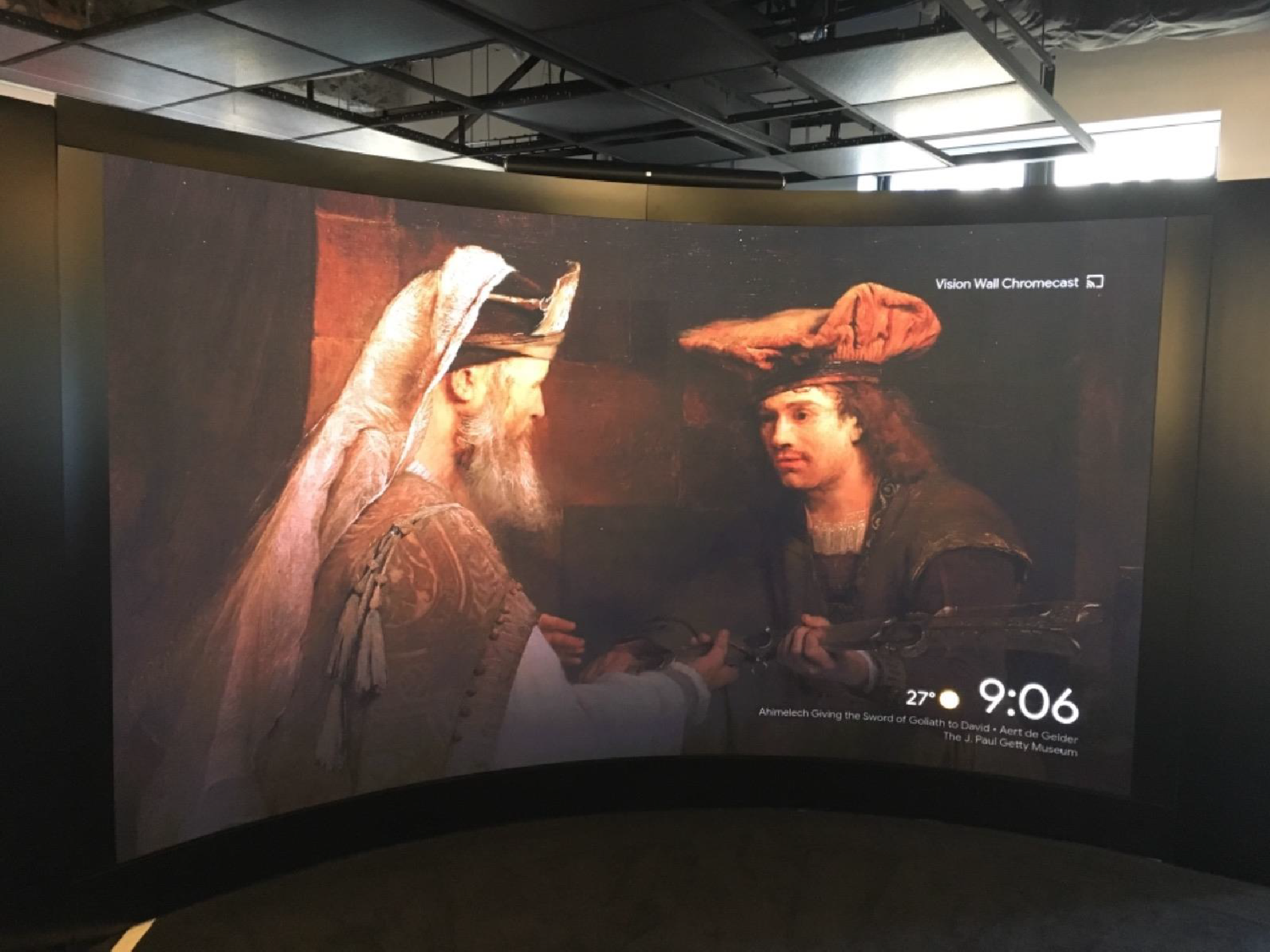

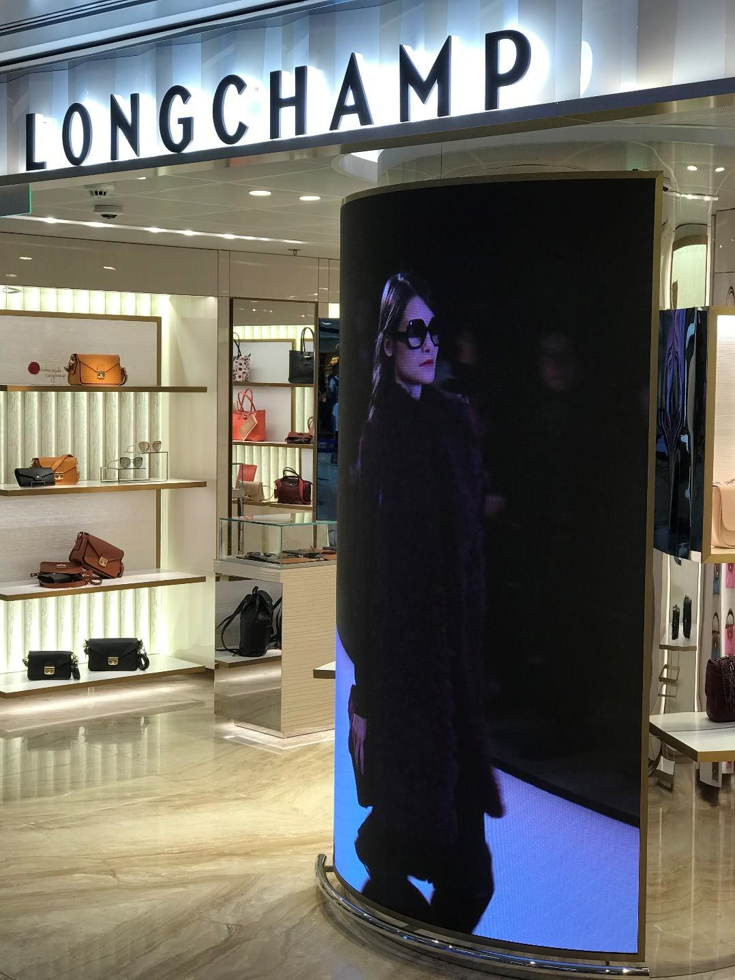

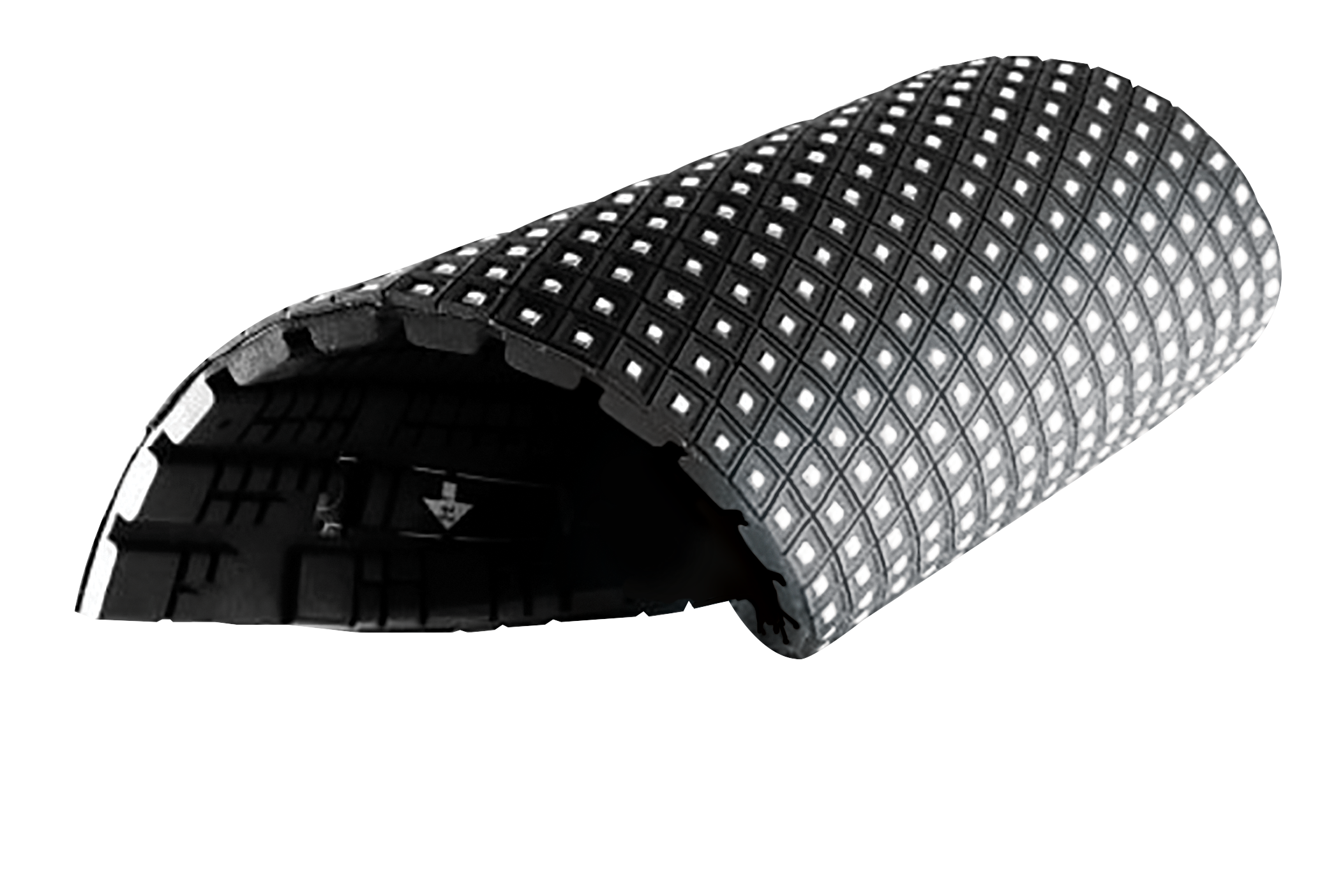

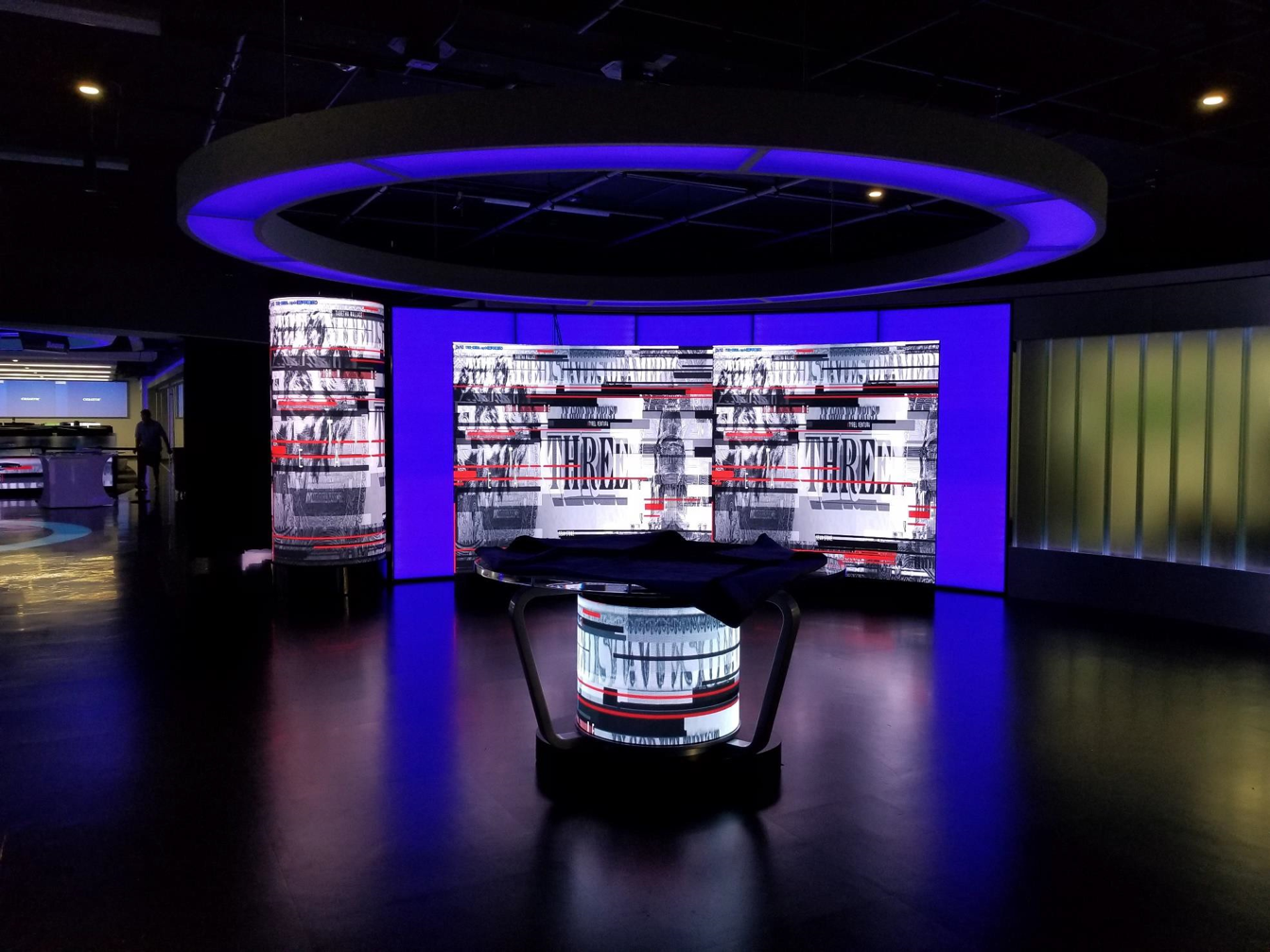

Leyard onQ QV soft flexible LED module is ultra-thin, ultra-light, ultra-flexible and convenient to use and its IDconnotationis flexible light strips. Having efficient installation method,which is magnetic column+steel structure. onQ QV soft flexible flexiblemodules can be spliced into creative displays such as curved screens, cylindrical screens, curved screens, etc.

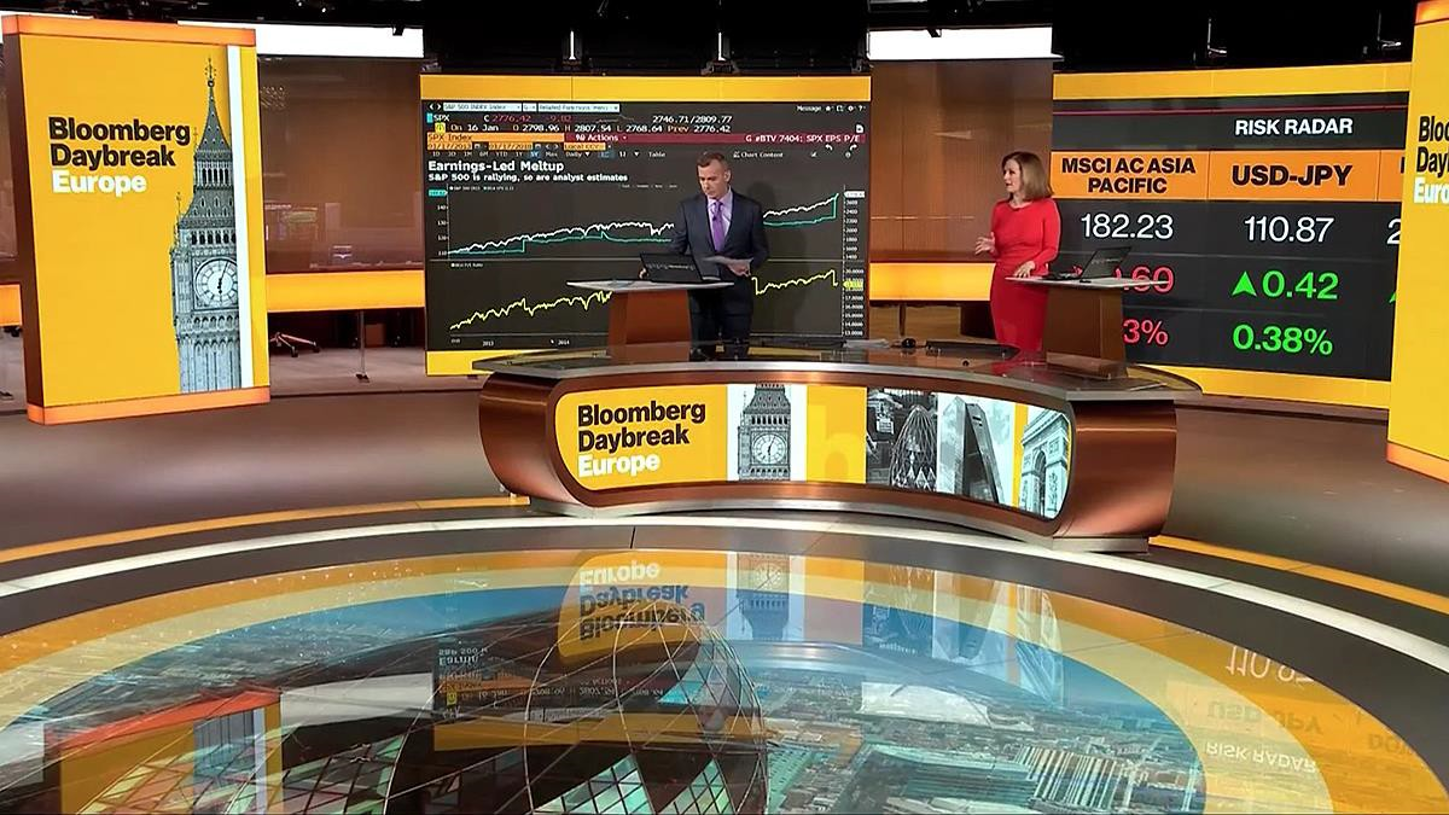

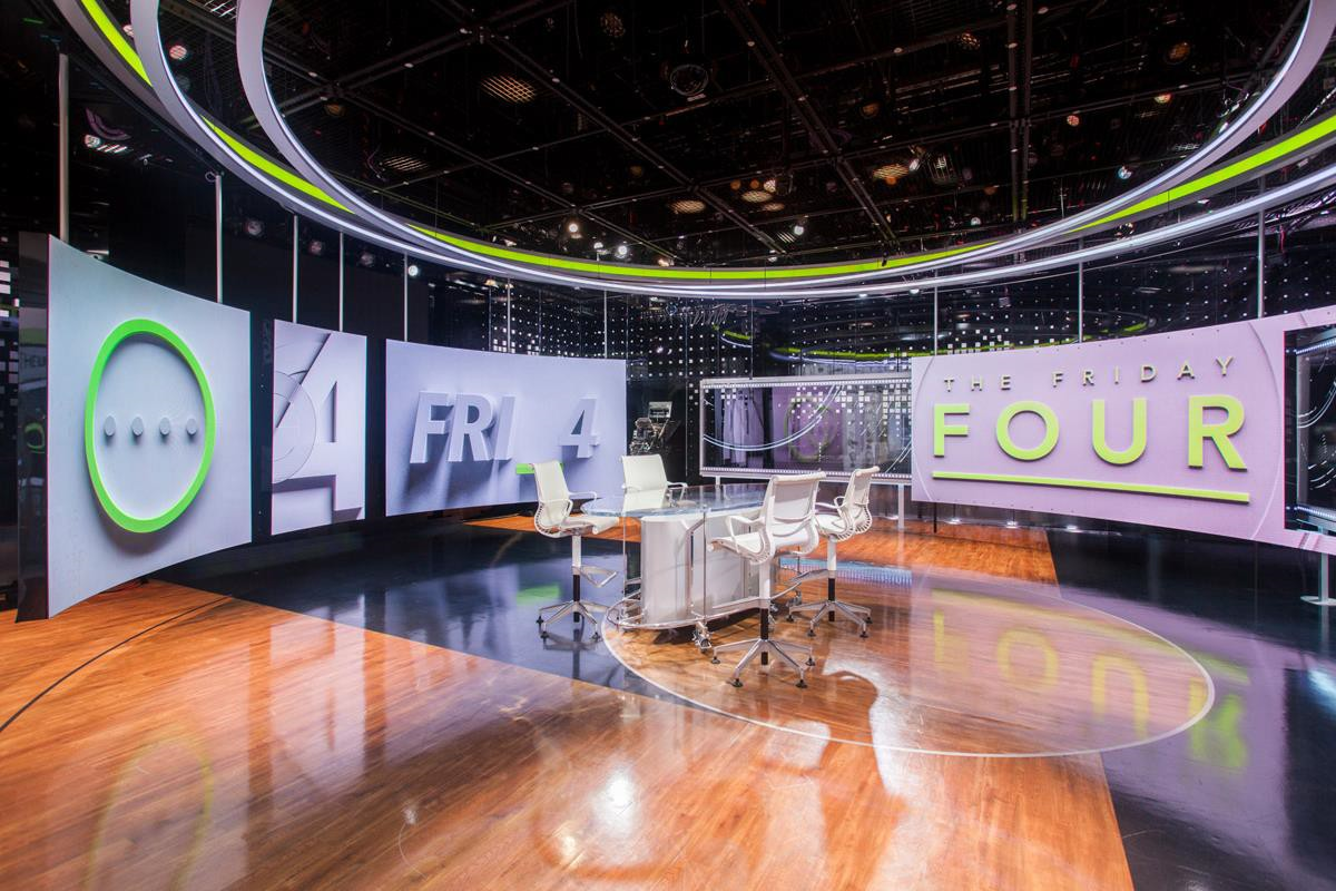

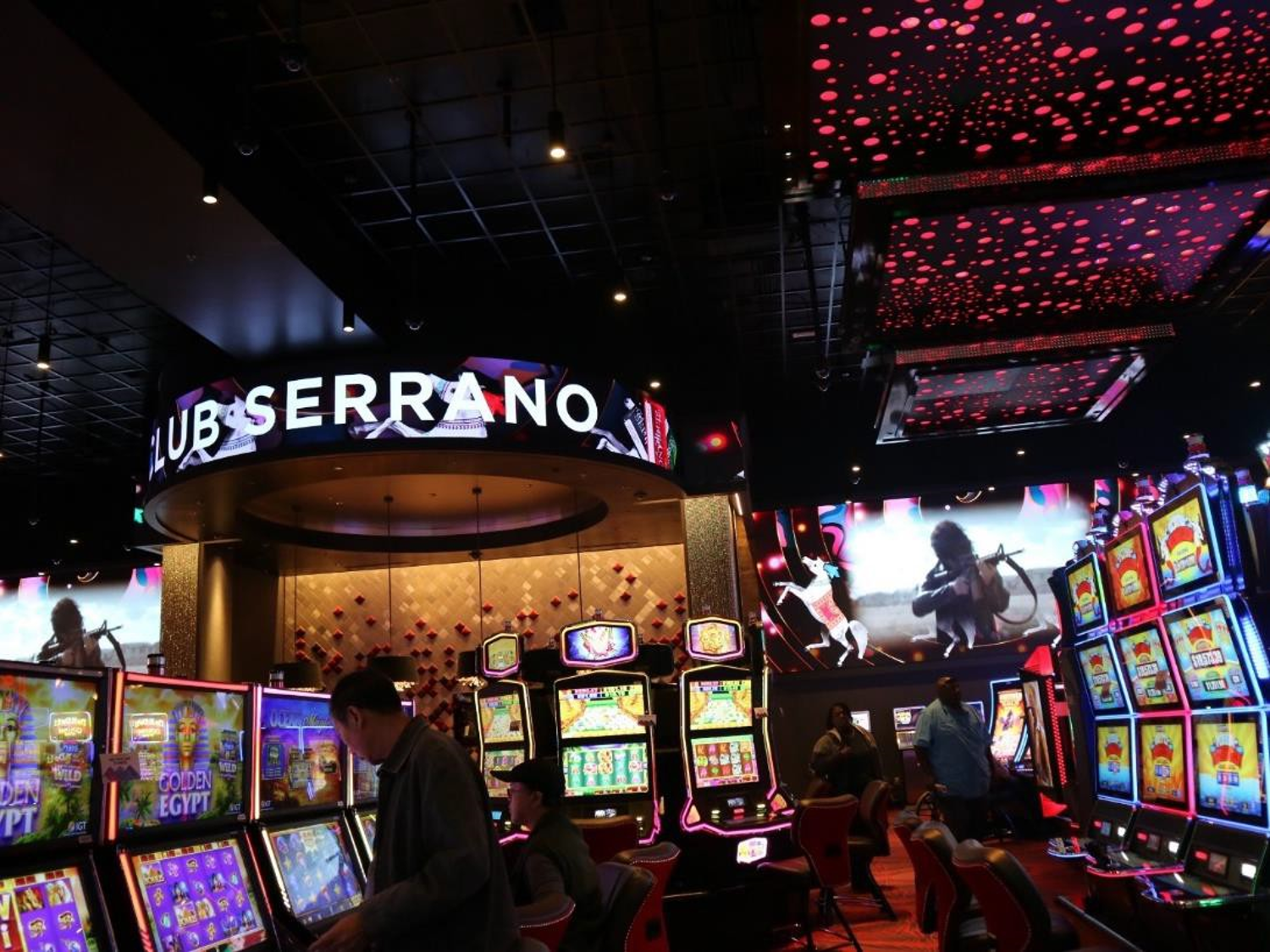

The view angle reach 160° vertically and 140° horizontally, which is suitable for creative curved surface display such as stage background, exhibition hall and shopping mall;
The flexible LED display adopts strong magnetic adsorption , which is directly adsorbed, convenient for installation and maintenance, and has high safety and stability;
Small footprint, and the maximum module thickness is only 10 mm;
Using distributed scanning and modular design technology, higher reliability and stability;
The grayscale can reach 16bit, and the color is richer;
The refresh rate can reach 1920-3840HZ, presenting images without delay and smear.

Items	onQ QV(soft)012B-X	onQ QV(soft)015B-X	onQ QV(soft)016B-X	onQ QV(soft)018B-X	onQ QV(soft)018C-X	onQ QV(soft)020B-X
Pixel pitch	1.25	1.579	1.667	1.875	1.86	2
LED configuration	SMD	SMD	SMD	SMD
Physical pixel density (pixels/㎡)	640000	401111	360000	284444	288906	250000
Module resolution (WxH)	192x96	152x76	114x72	128x64	172x86	120x60
Module dimension (WxHxD, mm)	240x120x8.6	240x120x8.6	240x120x8.6	240x120x8.6	320x160x8.6	240x120x8.6
Module weight (g)	215	203	195	216	300	205
Minimum diameter of composition cylinder and number of modules (piece) (mm)	6/458	6/458	6/458	6/458	5/509	4/305
Grayscale (bit)	12~16	12~16	12~16	12~16	12~16	12~16
Scanning mode	1/48	1/38	1/36	1/32	1/43	1/30
Working voltage (V)	110~220	110~220	110~220	110~220	110~220	110~220
Power interface	VH4	VH4	VH4	VH4	VH4	VH4
Signal interface	HUB75 16P	HUB75 16P	HUB75 16P	HUB75 16P	HUB75 16P	HUB75 16P
Brightness (CD/㎡)	≥600	≥600	≥600	≥750	≥650	≥750
Maximum voltage DC (V)	5	5	5	5	5	5
Maximum current DC (A)	3.8	3.5	3.2	3	5	3
Maximum power consumption of module(W/piece)	19	17.5	16	15	25	15
Peak power (W/㎡)	798	735	672	630	600	630
Average power (W/㎡)	266	245	224	210	200	210
Refresh rate (Hz)	≥3840	≥3840	≥3840	≥2880	≥3840	≥2880
Contrast Ratio	5000:1	5000:1	5000:1	5000:1	5000:1	5000:1
Color temperature (K)	3000~10000	3000~10000	3000~10000	3000~10000	3000~10000	3000~10000
Viewing angle (Horizontal)	≥160°	≥160°	≥160°	≥160°	≥160°	≥160°
Viewing angle (Vertical)	≥140°	≥140°	≥140°	≥140°	≥140°	≥140°
Operating temperature (°C)	-10~50	-10~50	-10~50	-10~50	-10~50	-10~50
Operating humidity (RH)	20~85%	20~85%	20~85%	20~85%	20~85%	20~85%
Storage temperature (°C)	-20~60	-20~60	-20~60	-20~60	-20~60	-20~60
Storage humidity (RH)	20~80%	20~80%	20~80%	20~80%	20~80%	20~80%

Items	onQ QV(soft)020C-X	onQ QV(soft)025B-X	onQ QV(soft)025C-X	onQ QV(soft)030B-X	onQ QV(soft)030C-X	onQ QV(soft)040B-X
Pixel pitch	2	2.5	2.5	3	3.076	4
LED configuration	SMD	SMD	SMD	SMD	SMD	SMD
Physical pixel density (pixels/㎡)	250000	160000	160000	111111	105625	62500
Module resolution (WxH)	160x80	96x48	128x64	80x40	104x52	60x30
Module dimension (WxHxD, mm)	320x160x8.6	240x120x8.6	320x160x8.6	240x120x8.6	320x160x8.6	240x120x8.6
Module weight (g)	315	175	269	175	252	170
Minimum diameter of composition cylinder and number of modules (piece) (mm)	5/509	4/305	5/509	4/305	5/509	4/305
Grayscale (bit)	12~16	12~16	12~16	12~16	12~16	12~16
Scanning mode	1/40	1/24	1/32	1/20	1/26	1/20
Working voltage (V)	110~220	110~220	110~220	110~220	110~220	110~220
Power interface	VH4	VH4	VH4	VH4	VH4	VH4
Signal interface	HUB75 16P	HUB75 16P	HUB75 16P	HUB75 16P	HUB75 16P	HUB75 16P
Brightness (CD/㎡)	≥900	≥750	≥750	≥900	≥750	≥850
Maximum voltage DC (V)	5	5	5	5	5	5
Maximum current DC (A)	5	3	5	3	4.5	3
Maximum power consumption of module(W/piece)	25	15	25	15	22.5	15
Peak power (W/㎡)	600	630	600	630	540	630
Average power (W/㎡)	200	210	200	210	180	210
Refresh rate (Hz)	≥3840	≥1920	≥1920	≥1920	≥1920	≥1920
Contrast Ratio	5000:1	5000:1	5000:1	5000:1	5000:1	5000:1
Color temperature (K)	3000~10000	3000~10000	3000~10000	3000~10000	3000~10000	3000~10000
Viewing angle (Horizontal)	≥160°	≥160°	≥160°	≥160°	≥160°	≥160°
Viewing angle (Vertical)	≥140°	≥140°	≥140°	≥140°	≥140°	≥140°
Operating temperature (°C)	-10~50	-10~50	-10~50	-10~50	-10~50	-10~50
Operating humidity (RH)	20~85%	20~85%	20~85%	20~85%	20~85%	20~85%
Storage temperature (°C)	-20~60	-20~60	-20~60	-20~60	-20~60	-20~60
Storage humidity (RH)	20~80%	20~80%	20~80%	20~80%	20~80%	20~80%

Items	onQ QV(soft)012A-Y	onQ QV(soft)015A-Y	onQ QV(soft)016A-Y	onQ QV(soft)018B-Y	onQ QV(soft)020B-Y	onQ QV(soft)025B-Y	onQ QV(soft)025C-Y	onQ QV(soft)030B-Y	onQ QV(soft)040B-Y
Pixel pitch	1.25	1.5625	1.667	1.875	2	2.5	2.5	3	4
LED configuration	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD
Physical pixel density (pixels/㎡)	640000	409600	359856	284444	250000	160000	160000	111111	62500
Module resolution (WxH)	160x120	128x96	120x90	128x64	120x60	96x48	128x64	80x40	60x30
Module dimension (WxHxD, mm)	200x150x 10	200x150x 10	200x150x 10	240x120x 9.5	240x120x 8.5	240x120x 9.5	320x160x 9.5	240x120x 9.5	240x120x9.5
Module weight (g)	125	125	125	190	220	200	285	200	200
Minimum diameter of composition cylinder and number of modules (piece) (mm)	20/1273	20/1273	20/1273	6/458	6/458	6/458	5/509	6/458	6/458
Grayscale (bit)	12~16	12~16	12~16	12~16	12~16	12~16	12~16	12~16	12~16
Scanning mode	1/60	1/48	1/45	1/32	1/30	1/24	1/32	1/20	1/15
Working voltage (V)	110~220	110~220	110~220	110~220	110~220	110~220	110~220	110~220	110~220
Power interface	VH4	VH4	VH4	VH4	VH4	VH4	VH4	VH4	VH4
Signal interface	HUB75 16P
Brightness (CD/㎡)	≥600	≥600	≥600	≥900	≥900	≥900	≥800	≥900	≥900
Maximum voltage DC (V)	5	5	5	5	5	5	5	5	5
Maximum current DC (A)	3	3	4	4.2	3	3	4	2.5	3.2
Maximum power consumption of module(W/piece)	15	15	20	21	15	15	20	12.5	16
Peak power (W/㎡)	594	594	594	794	630	630	480	525	672
Average power (W/㎡)	198	198	198	265	210	210	160	175	224
Refresh rate (Hz)	≥3840	≥3840	≥3840	≥2880	≥2880	≥1920	≥1920	≥1920	≥1920
Contrast Ratio	5000:1	5000:1	5000:1	5000:1	5000:1	5000:1	5000:1	5000:1	5000:1
Color temperature (K)	3000~9500K
Viewing angle (Horizontal)	≥160°	≥160°	≥160°	≥160°	≥160°	≥160°	≥160°	≥160°	≥160°
Viewing angle (Vertical)	≥140°	≥140°	≥140°	≥140°	≥140°	≥140°	≥140°	≥140°	≥140°
Operating temperature (°C)	-20~50	-20~50	-20~50	-20~50	-20~50	-20~50	-20~50	-20~50	-20~50
Operating humidity (RH)	10~80%	10~80%	10~80%	10~80%	10~80%	10~80%	10~80%	10~80%	10~80%
Storage temperature (°C)	-30~80	-30~80	-30~80	-30~80	-30~80	-30~80	-30~80	-30~80	-30~80
Storage humidity (RH)	20~80%	20~80%	20~80%	20~80%	20~80%	20~80%	20~80%	20~80%	20~80%
