All-in-One Network Package Digital Signage Solution

LCD Digital Menu Boards

(32"-55") Larger sizes available on request

Digital directory boards are electronic displays that show directories, maps, or other information to help people navigate a building or campus. They are commonly used in hospitals, schools, office buildings, and other large facilities. Digital directory boards can be used in place of traditional paper directories, or as an additional display in addition to paper directories.

Digital directory boards can be created and managed using specialized software that allows the user to easily update and change the content, such as adding new locations or updating directions. They can also be programmed to display different information at different times of the day, such as office hours or emergency information. Digital directory boards may also include additional features, such as the ability to display images or interactive maps, or to provide real-time information, such as the location of available parking spaces.

Digital directory boards have several advantages over traditional paper directories, including cost-effectiveness, flexibility, and the ability to easily update and change the content. They can also be more engaging and visually appealing, which can help improve the user experience and reduce the burden on staff who would otherwise have to provide directions or answer questions.

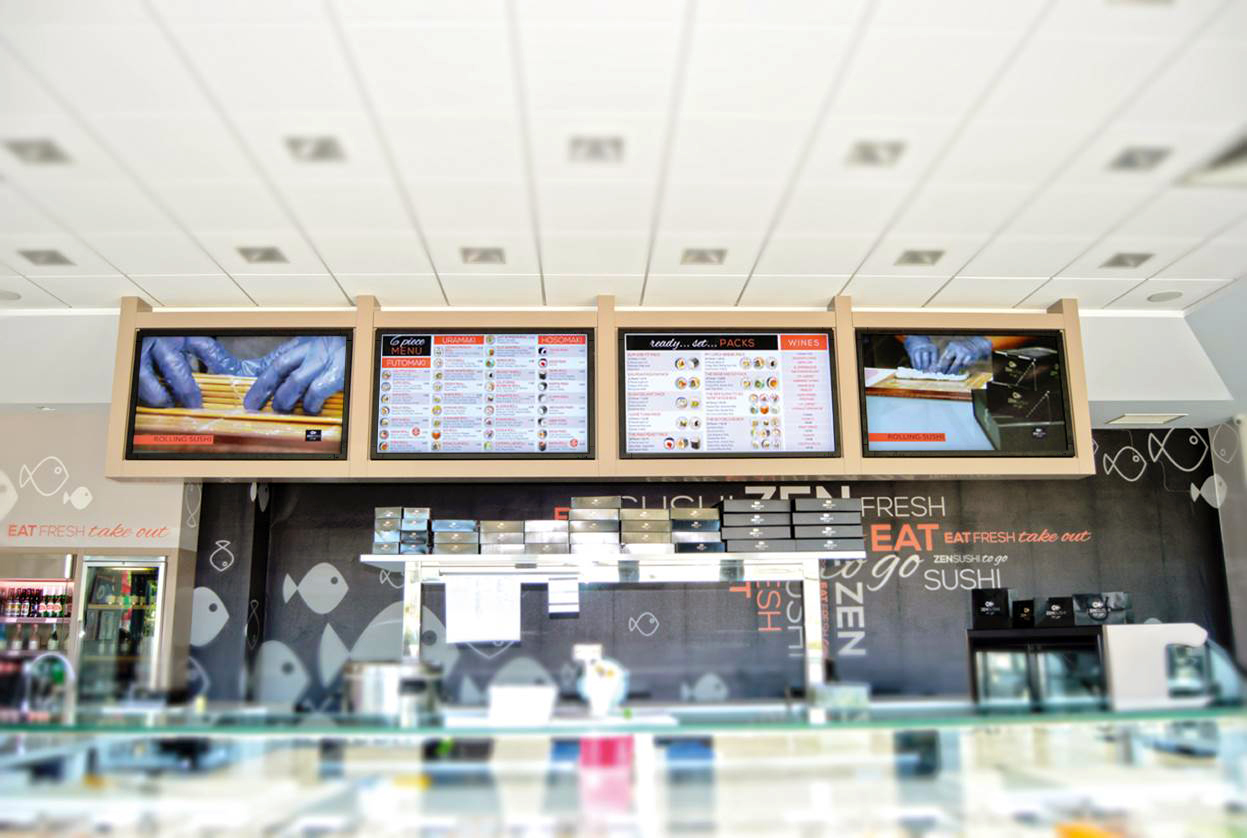

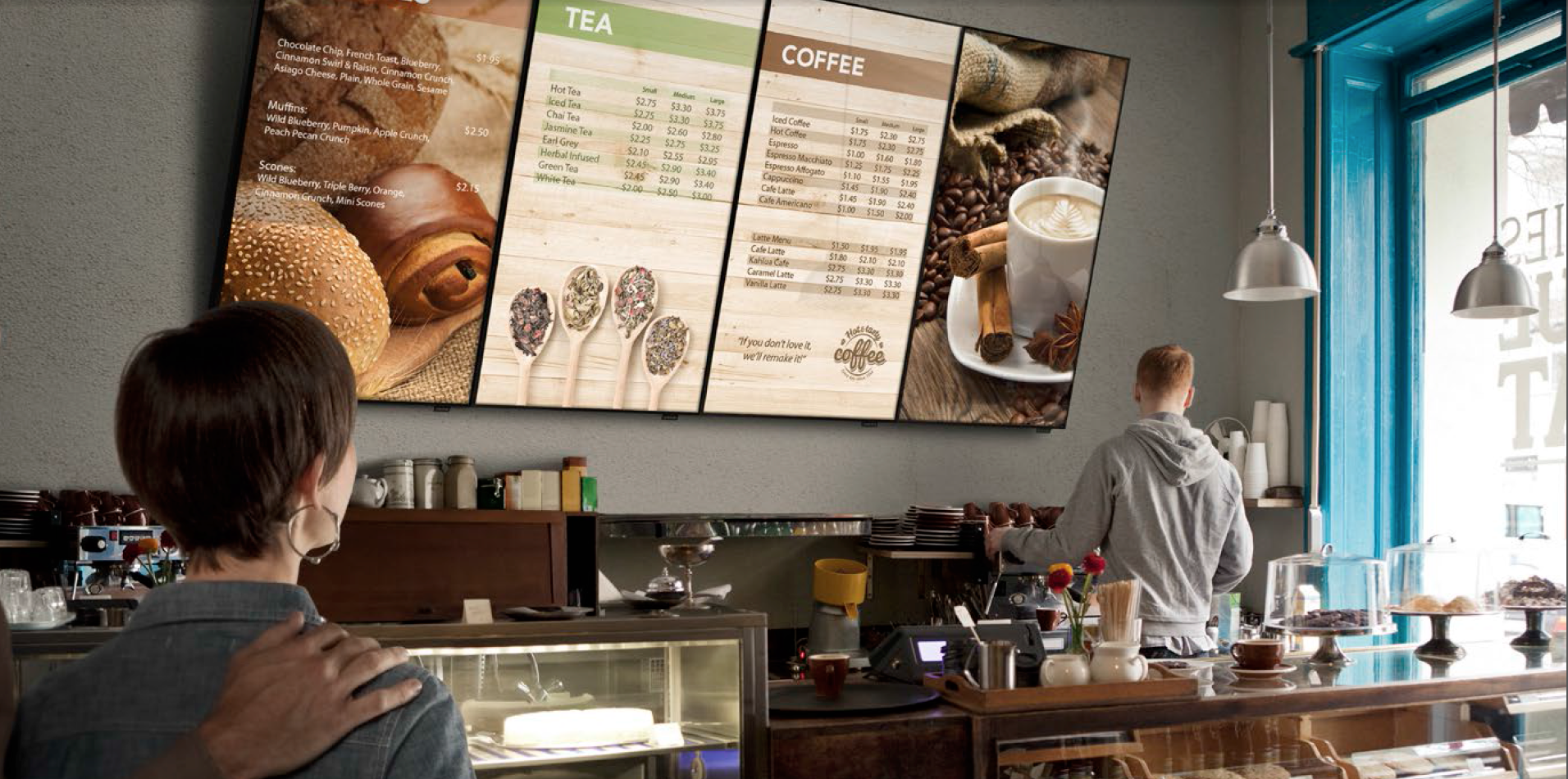

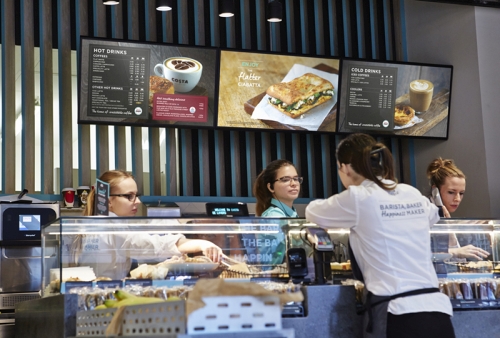

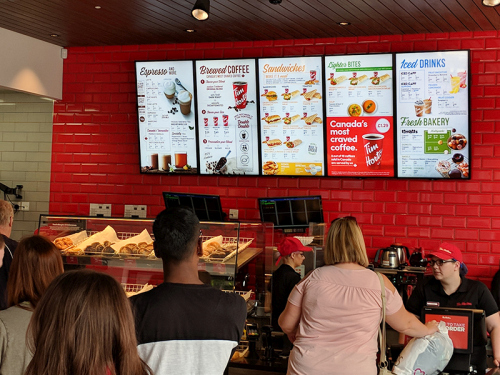

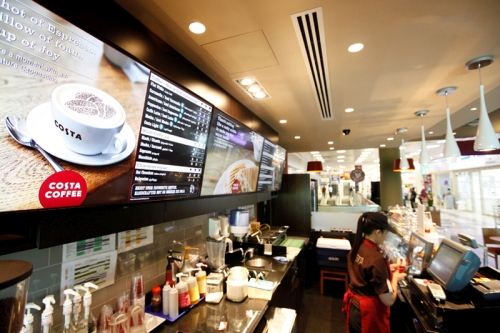

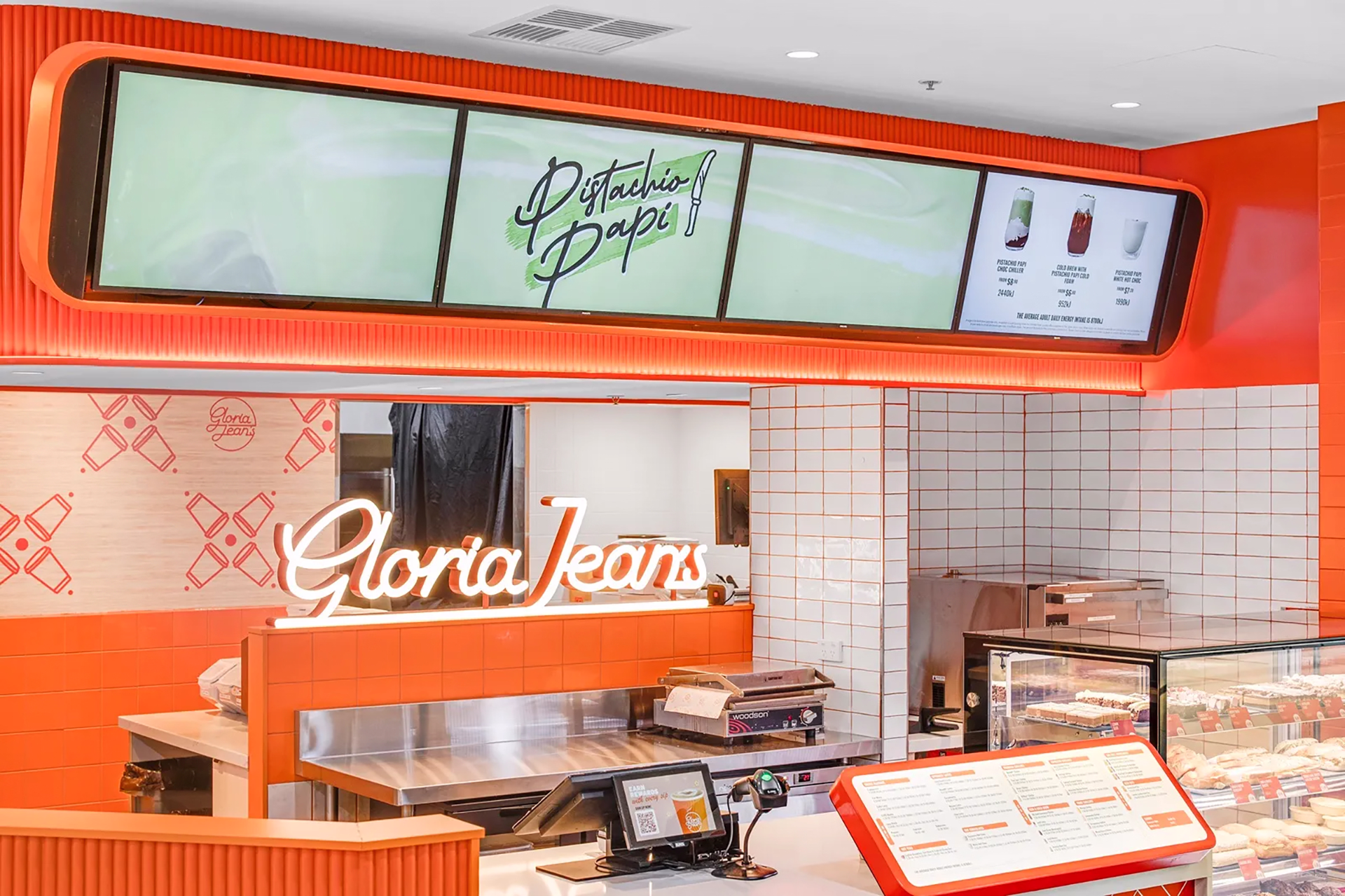

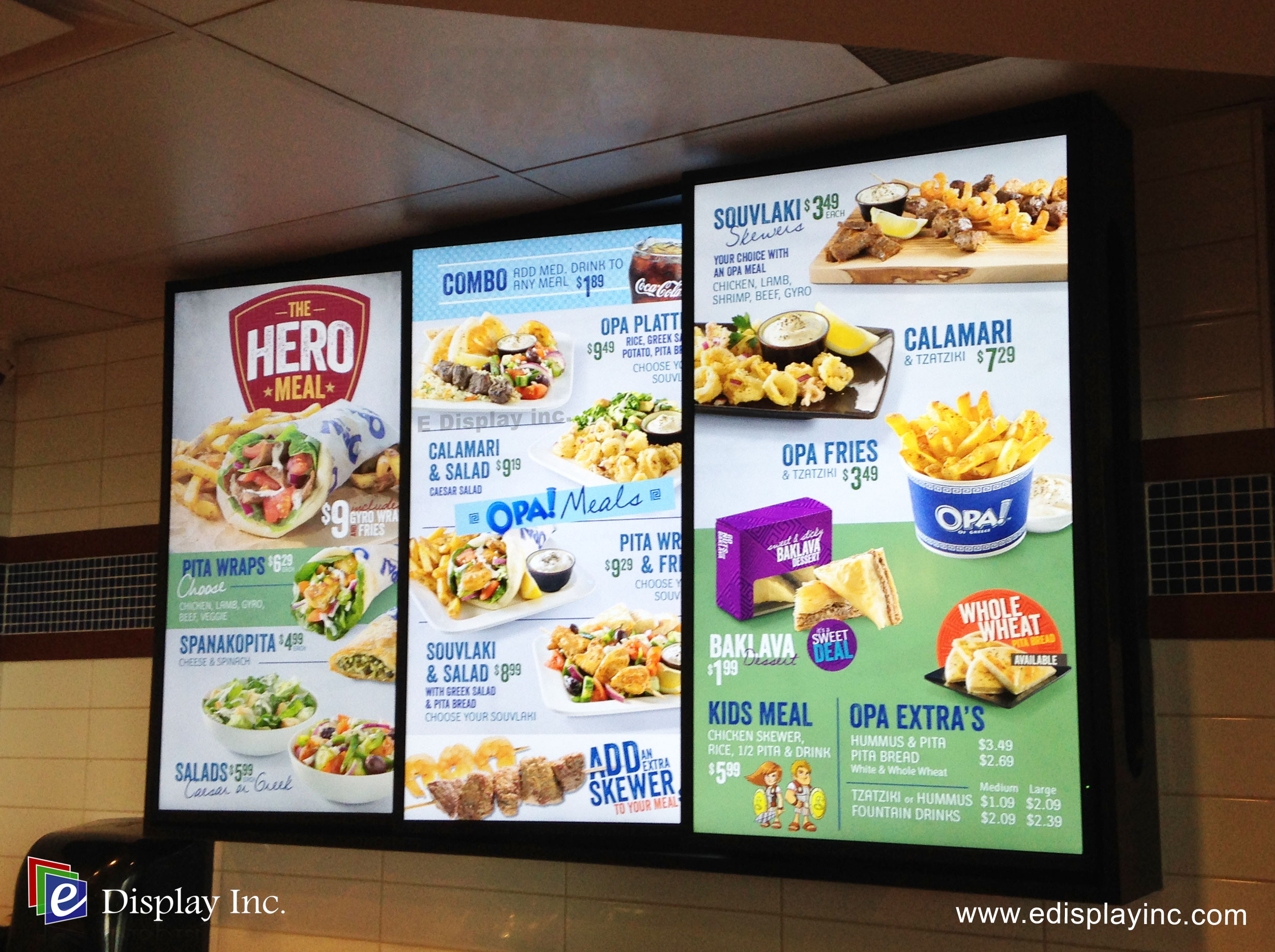

Digital menu boards are electronic displays that show a restaurant's menu items, prices, and other information. They are commonly used in fast food and quick-service restaurants, as well as other food and beverage establishments. Digital menu boards can be used in place of traditional paper menus, or as an additional display in addition to paper menus.

Digital menu boards can be created and managed using specialized software that allows the user to easily update and change the content, such as adding new menu items or updating prices. They can also be programmed to display different menus or specials at different times of the day, such as breakfast, lunch, and dinner. Digital menu boards may also include additional features, such as the ability to display images of the menu items, nutritional information, or promotions.

Digital menu boards have several advantages over traditional paper menus, including cost-effectiveness, flexibility, and the ability to easily update and change the content. They can also be more engaging and visually appealing, which can help increase sales and customer satisfaction.

Update Over the Internet

It's never been easier to update your Digital Menu Boards.  Simply connect  your screen to a network using the integrated Wi-Fi or using an Ethernet cable. Login to www.MySignagePortal.com to choose from our expansive template library, upload various media, curate playlists and schedule content to your preference.You’ll have ultimate remote control over your content, and will be able to manage your boards from anywhere in the world.


1 Year Free Software Licence

With our package the first year of using our cloud based content management system is absolutely free. You don’t pay anything for 12 months and get full unrestricted access to the software as well as lifetime technical support. You can also purchase 3 additional year’s access at the point of purchase or make a one off payment to have access for life.

Template Library

Integrate your brand seamlessly into our exclusive library of digital signage templates. Each predesigned template allows you to upload your own media, branding and customised info. You can also change almost every design aspect of the templates to your desire, layout sizes to fonts and color schemes.

Multi-Screen Synchronisation

Easily synchronise your Digital Menu Boards across multiple screens via the same network. This is especially ideal for restaurant and menu-board displays

24/7 Commercial Grade IPS Panel

Our video screens boast an IPS grade panel, reaching brightness levels of 450cd/m2 - twice that of the average home television. Our digital menu boards maintain ultimate color temperature for ultra lifelike imagery, even in the harshest environments. Screens can be used 24/7 for up to 50’000 with zero loss in image quality, and there are no external controls to allow for tampering.


Narrow Bezel

Let your menu boards take centre-stage with our narrow bezel designs. Aligned screens create seamless displays side-by-side, due to their thinner edges and sharp image quality.


Portrait or Landscape

Screens can be orientated to either landscape or portrait mode to suit any custom display requirements.


Integrated Speakers

Each display carries two integrated stereo speakers for any application that requires audio.


Plug and Play

Screens can be updated via simple USB connection for instances where there is no network option. Compile your playlists onto a USB flash drive, and insert the drive into the USB port on the screen. All playlists, schedules and media should automatically upload and initiate


Eco Power Timer

Set custom automatic running times on your screen to save battery life using our eco power timer. Times can be scheduled weekly or daily, and screens will automatically power down when they are not required.


Scrolling Text Message

Curate a custom RSS feed banner that runs below your primary displays. You can also adjust the font, size, speed and direction of your RSS feed


Project Videos

Product specs

32 Inch - DM32B

  • Display Area
    703.4x397.9
  • Unit Size
    723.4x422.9x71
  • Package Size
    865x555x210
  • VESA Holes
    500x200/400x200
  • Net Weight
    11.65kg
  • Gross Weight
    15.05kg
  • Power Consumption (w)
    38

43 Inch - DM43B

  • Display Area
    945.8x534
  • Unit Size
    963.6x557.9x60.2
  • Package Size
    150x700x210
  • VESA Holes
    400x200
  • Net Weight
    15.1kg
  • Gross Weight
    19kg
  • Power Consumption (w)
    45

50 Inch - DM50B

  • Display Area
    1073x604
  • Unit Size
    1096x632x60
  • Package Size
    1238x760x195
  • VESA Holes
    400x400/400x300/400x200
  • Net Weight
    23kg
  • Gross Weight
    28.9kg
  • Power Consumption (w)
    55

55 Inch - DM55B

  • Display Area
    1209.6x680.4
  • Unit Size
    1232x708.9x59.3
  • Package Size
    1385x845x190
  • VESA Holes
    400x400/400x300/400x200
  • Net Weight
    28kg
  • Gross Weight
    34.4kg
  • Power Consumption (w)
    65

Panel

  • Resolution
    1920x1080
  • Aspect Ratio
    16:9
  • Brightness (cd/m2)
    450
  • Colour
    16.7M
  • Viewing Angle
    178°
  • Contrast Ratio
    4000:1

AV Inputs

  • Video
    HDMI, VGA
  • Audio
    Audio Socket (3.5mm)
  • Speaker Type
    5W, 8Ω (x2)

Environmental

  • Operating Temperature
    0°C to 50°C
  • Storage Temperature
    -30°C to 60°C
  • Operating Humidity
    10% to 80%
  • Storage Humidity
    5% to 95%

Computer

  • Media Formats
    Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
  • Media Resolution
    1920x1080/1080x1920
  • Internal Memory
    6GB
  • CPU
    Quad-Core [email protected]
  • GPU
    Mali-T760 MP4 @600MHz
  • RAM
    2GB DDR3
  • ROM
    8GB NAND
  • USB
    USB2.0 HOST (x2)
  • LAN
    10/100M Ethernet (Network version screen only)
  • Wi-Fi
    802.11b/g/n (Network version screen only)
  • OS
    Android 5.1.1
  • Graphic Engine
    OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1

Accessories

  • Included
    Scheduling Software, Remote Control, User Manual
  • Optional
    Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand
