Dual-Sided Digital Signage Window Displays

LCD Ultra High Brightness Double-Sided Window Displays

(49" & 55") 3,000 Nits Outward-Facing; 1,000 Nits Inward-Facing

Digital directory boards are electronic displays that show directories, maps, or other information to help people navigate a building or campus. They are commonly used in hospitals, schools, office buildings, and other large facilities. Digital directory boards can be used in place of traditional paper directories, or as an additional display in addition to paper directories.

Digital directory boards can be created and managed using specialized software that allows the user to easily update and change the content, such as adding new locations or updating directions. They can also be programmed to display different information at different times of the day, such as office hours or emergency information. Digital directory boards may also include additional features, such as the ability to display images or interactive maps, or to provide real-time information, such as the location of available parking spaces.

Digital directory boards have several advantages over traditional paper directories, including cost-effectiveness, flexibility, and the ability to easily update and change the content. They can also be more engaging and visually appealing, which can help improve the user experience and reduce the burden on staff who would otherwise have to provide directions or answer questions.

Maximise window displays by broadcasting content inwards and outwards, even in direct sunlight

brightness icon
Double Sided Display
brightness icon
3000 Nits & 700 Nits Brightness
blackening icon
24/7 Usage
plugandplay icon
Plug and Play
Easy Install icon
Easy Install
Wide Viewing icon
Wide Viewing Angle
Integrated Ceiling icon
Integrated Ceiling Mount
Ultra Resistant icon
Ultra Resistant Blackening 110°C
ambient-sensor icon
Ambient Light Sensor
Temperature Control System icon
Temperature Control System
Lightweight Aluminium Enclosure icon
Lightweight Aluminium Enclosure
multipleinputs icon
Freestanding Version Available
3yearwarranty icon
3-Year Warranty
icon-network-01 icon
Optional Network Upgrade
techsupport icon
Lifetime Technical Support
left image
Ultra Resistant

Exceptional Blackening Resistance

Featuring ultra-high brightness panels, these displays can endure surface temperatures up to 110˚C without succumbing to blackening defects. This makes them ideal for outward-facing window displays that are exposed to direct sunlight.

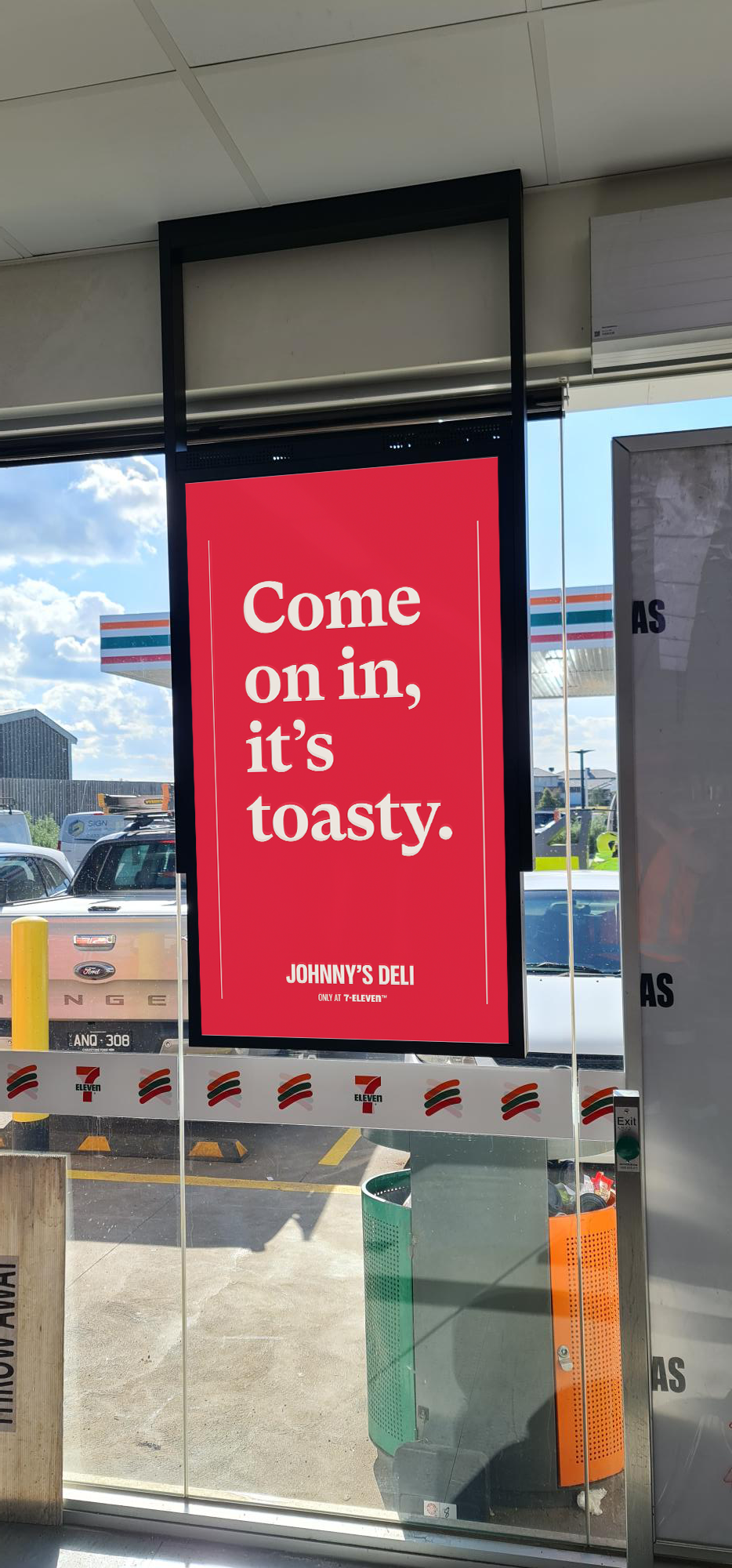

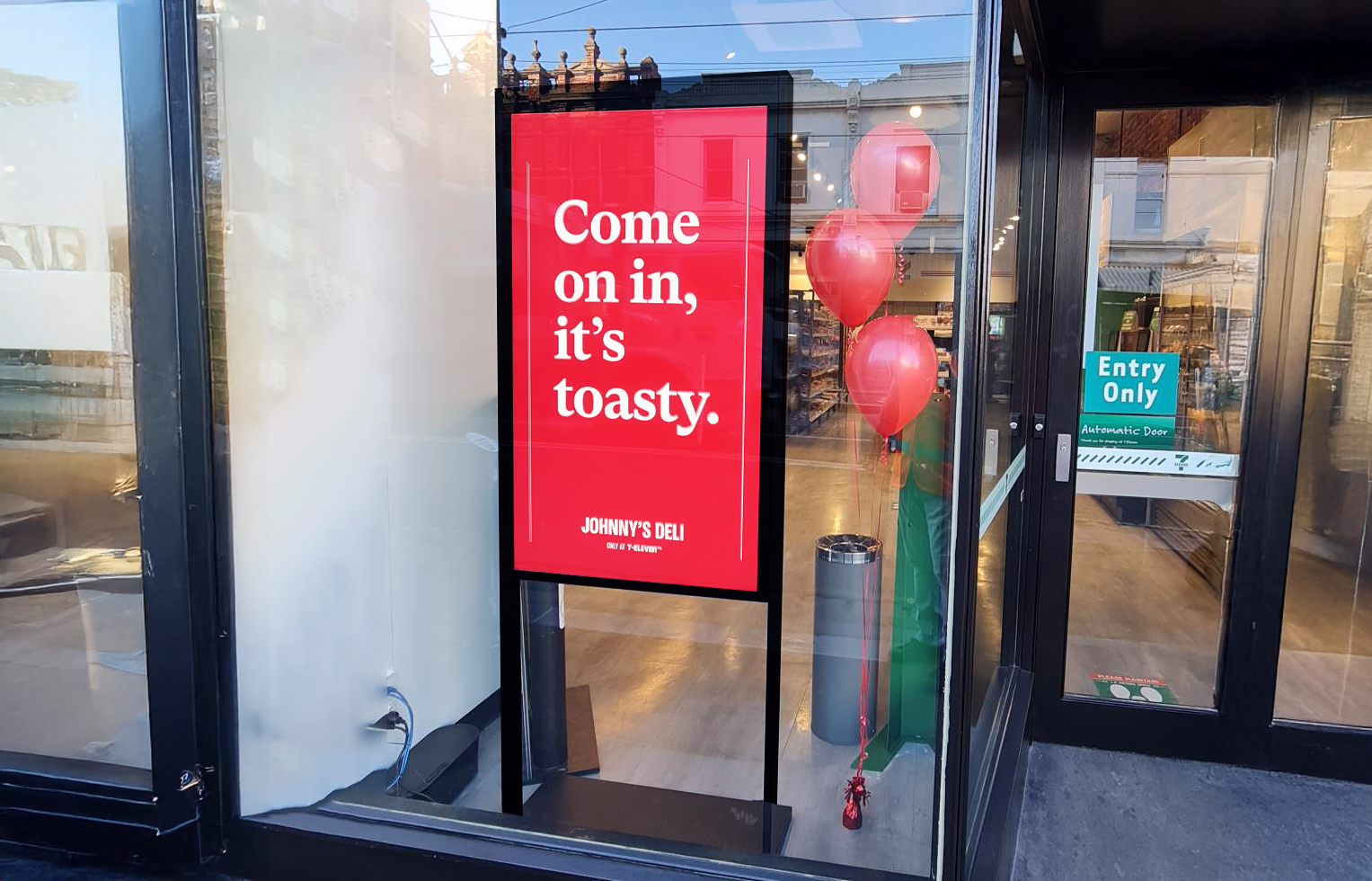

Perfect for Window Displays

With a 3,500cd/m² outward-facing screen to combat direct sunlight and a 1,000cd/m² inward-facing screen to combat brightly-lit indoor spaces, these dual-sided displays are designed for shopfront windows. On top of this, they are also ultra resistant to blackening defect up to 110°C.

Different Content on Each Side

When using our user-friendly online CMS software, you can really capitalise on the duality of these displays by broadcasting different content on each side. Tailor your messaging to people inside and outside the building for maximum effectiveness.

Sleek Lightweight Design

These innovative displays boast a slim profile, minimal cable clutter, and high energy efficiency, thanks to their streamlined design. The aluminium enclosure is not only remarkably lightweight for effortless installation, but it also provides excellent thermal conductivity, promoting rapid heat dissipation, enhancing performance, and extending lifespan.

Built-in Android Media Player

The integrated Android media player enables straightforward content updates via USB plug and play. You can also upgrade your screen for network access without additional hardware, unlocking our cloud-based CMS software, or you can opt for third-party software if desired.

Intelligent Temperature Regulation

A responsive internal airflow system maintains the panel and other internal components at the optimal working temperature. This ensures a long and reliable life for your screen, even during continuous use in outward-facing windows.

Discreet Yet Accessible Ports

To deter tampering, the AV ports are subtly recessed into the top of the enclosure, while remaining easily accessible for content updates via USB plug and play. This design strikes the perfect balance between user convenience and commercial applications.

Customizable Color Options

While the standard crisp white displays offer a clean, modern aesthetic suitable for environments like retail stores and pharmacies, the enclosure can also be customized to any color of your choice.

Versatile Freestanding Alternative

If hanging installation isn't feasible for your project, these adaptable displays can be converted into a freestanding solution using the optional floor stand. Whichever mounting option you choose, a hassle-free installation is guaranteed.

Project Videos

Product specs

49 Inch - UDS49HD8

  • Display Area
    1073.78x604
  • Unit Size
    1855x717x74 (Shortest Mounting Range)
  • Package Size
    1550*240*900
  • Hanging Height Adjustable Range (mm)
    Unlimitedfrom 1855 to 2375
  • Net Weight - Screen and Ceiling Mount (kg)
    27.5
  • Gross Weight
    38.5
  • Power Consumption (w)
    510

55 Inch - UDS55HD8

  • Display Area
    1209.6x680.4
  • Unit Size
    2010x740x74 (Shortest Mounting Range)
  • Package Size
    1490*320*1110
  • Hanging Height Adjustable Range (mm)
    Unlimited from 2010 to 2530
  • Net Weight - Screen and Ceiling Mount (kg)
    34
  • Gross Weight
    44
  • Power Consumption (w)
    750

Panel

  • Resolution
    1920x1080
  • Aspect Ratio
    16:9
  • Side A Brightness (cd/m²)
    3,500
  • Side B Brightness (cd/m²)
    1,000
  • Viewing Angle
    178°
  • Colour
    16.7M
  • Blackening Defect Free
    Up to 105°C (221°F)

AV Inputs

  • Video Inputs
    HDMI, VGA
  • Audio
    Audio Socket (3.5mm)
  • Speaker Type
    5W, 8Ω (x2)

Environmental

  • Surface Panel Temperature
    105°C
  • Operating Temperature
    -10°C to 60°C
  • Storage Temperature
    -30°C to 80°C
  • Operating Humidity
    10% to 80%
  • Storage Humidity
    5% to 95%

Computer

  • Media Formats
    Video (Support AVI(H.264、DIVX、DIVX、XVID), rm,rmvb,MKV(H.264、DIVX、DIVX、XVID),WMV,MOV,MP4(.H.264、MPEG、DIVX、XVID),DAT(VCDformat),VOB(DVD format),PMP,MPEG,.MPG,, FLV(H.263,H.264),ASF ,TS, TP,3GP,MPGetc. and other 30 kinds of formats), Audio (MP3,WMA,WAV, APE, FLAC, AAC,OGG,M4A,3GPP and other formats), Image (JPG, GIF, BMP, PNG)
  • Media Resolution
    1920x1080/3840x21604K Decode
  • CPU
    Dual-Core Cortex-A72 + Quad-Core Cortex-A53 1.8GHz
  • GPU
    Six-Core ARM Mali-T864
  • RAM
    4GB
  • ROM(storage)
    64GB eMMC
  • USB
    1 x USB (HOST), 1 x USB (OTG)
  • LAN
    100M/1000M Ethernet (Network Version Only)
  • Wi-Fi
    802.11b/g/n/ac (Network Version Only)
  • OS
    Android 10.0
  • Graphic Engine
    1 x USB (HOST), 1 x USB (OTG)

Accessories

  • Included
    Scheduling Software, Remote Control, User Manual
  • Optional
    CeilingMount, Floor Mount, Mobile Floor Stand, Floor Stand
