Super-Slim Dual Sided Display for Windows with Integrated Ceiling Mounting Solutions

LCD Hanging Double Sided Displays

(43" & 55") Other sizes available on request

Digital directory boards are electronic displays that show directories, maps, or other information to help people navigate a building or campus. They are commonly used in hospitals, schools, office buildings, and other large facilities. Digital directory boards can be used in place of traditional paper directories, or as an additional display in addition to paper directories.

Digital directory boards can be created and managed using specialized software that allows the user to easily update and change the content, such as adding new locations or updating directions. They can also be programmed to display different information at different times of the day, such as office hours or emergency information. Digital directory boards may also include additional features, such as the ability to display images or interactive maps, or to provide real-time information, such as the location of available parking spaces.

Digital directory boards have several advantages over traditional paper directories, including cost-effectiveness, flexibility, and the ability to easily update and change the content. They can also be more engaging and visually appealing, which can help improve the user experience and reduce the burden on staff who would otherwise have to provide directions or answer questions.

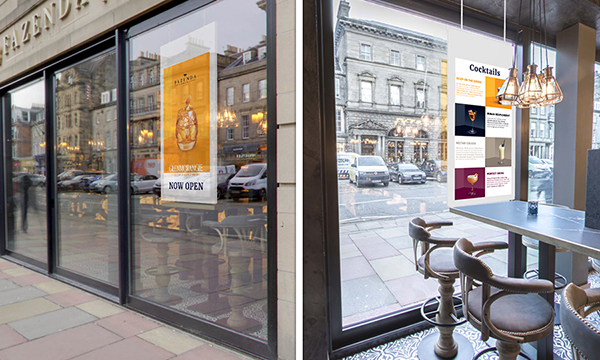

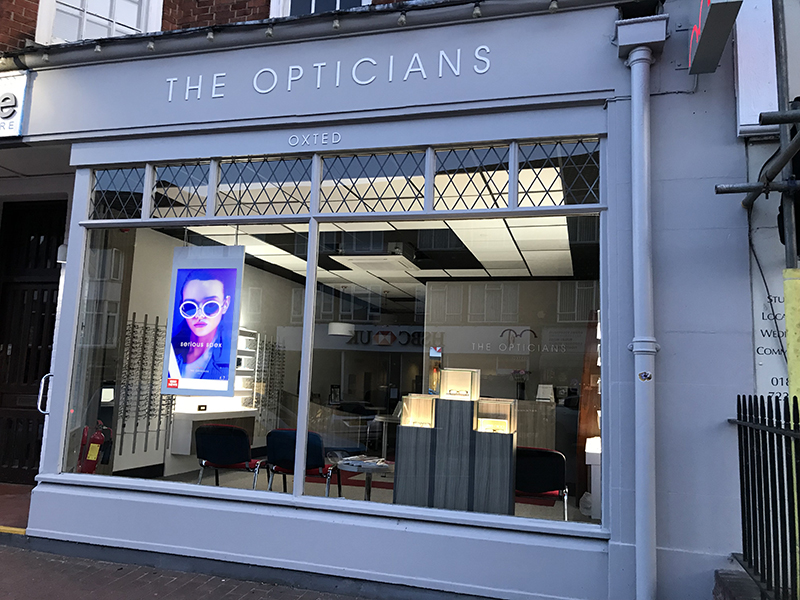

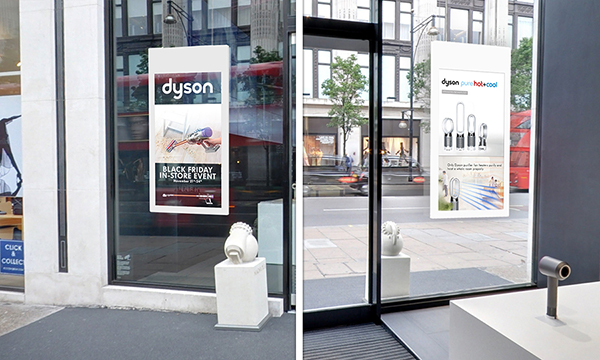

Double Sided Window Display

Use our dual sided window display to double up on your marketing power. Create eye capturing campaigns on the window side to draw customers into your store from your window, and then drive your message home using the inward facing display.


Window Displays (700cd/m²)

Brightness is one of your greatest assets with outward facing displays. Our LCD displays emit up to 700cd/m2 of brightness, more than double that of your standard home tv set. Increased brightness means maximised usability, and will allow your campaigns to be seen by more customers.


Plug and Play

Our Double Side Hanging Displays allow you to effortlessly load and compile media for fluid visual campaign management. Every display comes with a built in HD Android Media Player, that lets users quickly upload, store and arrange media for their campaign playlists. Our displays support various media formats, and all files can be uploaded using a simple USB memory stick.

Optional Network Upgrade

For a minimal cost, you can upgrade your screen to include some incredibly handy wireless network capabilities. Our LCD displays are able to operate over LAN, WiFi or 4G network for seamless remote operation.


Ultra Resistant to Blackening

Most standard LCD panels are not equipped to withstand intense direct sunlight. Many LCD units will experience blackening on the display panel after consistent exposure to UV rays. We’ve taken this into consideration and have integrated an unique ultra-high brightness panel that can withstand temperatures of up to 110 C with zero blackening. This level of durability is exactly what makes our LCD displays a top choice for harsh environmental conditions

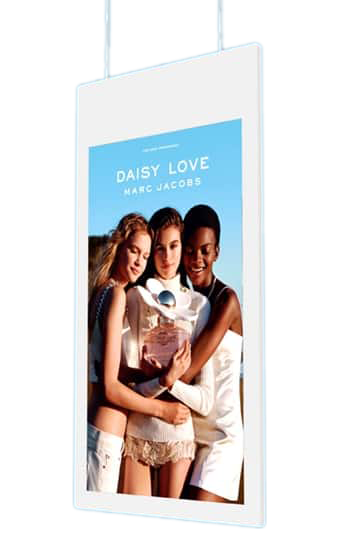

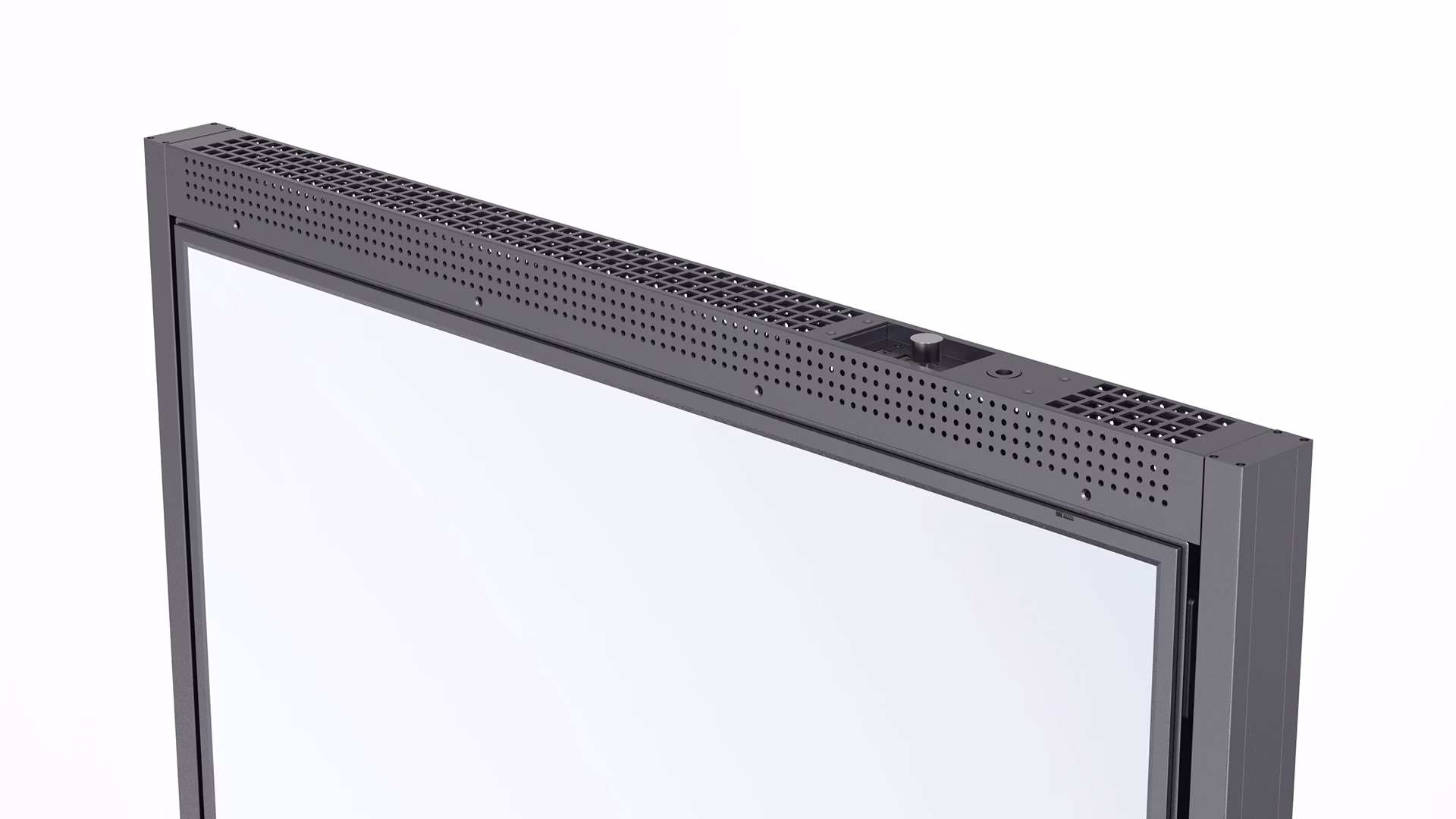

Integrated Ceiling Mount

Installing our LCD displays is a smooth, painless procedure and requires minimal intrusion. Every screen includes an integrated wire hanging mounting solution, which saves you the pain of finding the right ceiling mount. In addition to the mounting system, we have included cover tubes to hide any unsightly power or data cables.

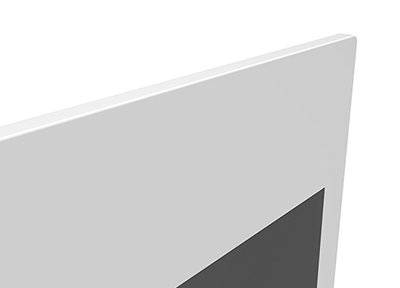

Super Slim Design

Even with their dual-screen design, our LCD displays still feature some of the slimmest profiles on the current market. Both displays combine to create only 23mm of depth, allowing for stylish and diverse window display options.


Project Videos

Product specs

43 Inch

  • Display Area
    943x536
  • Unit Size (WxHxD mm)
    1180x635x23
  • Package Size (WxHxD mm)
    1280x760x160
  • Net Weight (kg)
    16.9
  • Gross Weight (kg)
    22.5
  • Power Consumption (w)
    150

55 Inch

  • Display Area
    1209.6×680.4
  • Unit Size (WxHxD mm)
    1573x828x23
  • Package Size (WxHxD mm)
    1705x960x150
  • Net Weight (kg)
    26.1
  • Gross Weight (kg)
    34.4
  • Power Consumption (w)
    220

Panel

  • Resolution
    1920x1080
  • Aspect Ratio
    16:9
  • Side A Brightness (cd/m2)
    700
  • Side b Brightness (cd/m2)
    450
  • Viewing Angle
    178°
  • Contrast Ratio
    1200:1
  • Colour
    16.7M
  • Blackening Defect Free
    Up to 110°C (230°F)

AV Inputs

  • Video Inputs
    HDMI, VGA
  • Audio
    Audio Socket (3.5mm)
  • Speaker Type
    2W, 5Ω (x2)

Environmental

  • Operating Temperature
    0°C to 40°C
  • Storage Temperature
    -20°C to 60°C
  • Operating Humidity
    10% to 90%
  • Storage Humidity
    0% to 95%

Computer

  • Media Formats
    Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
  • Media Resolution
    1920x1080/1080x1920
  • Internal Memory
    6GB
  • CPU
    Quad-Core [email protected]
  • GPU
    Mali-T760 MP4 @600MHz
  • RAM
    2GB DDR3
  • ROM
    8GB NAND
  • USB
    USB2.0 HOST (x2)
  • LAN
    10/100M Ethernet (Network version screen only)
  • Wi-Fi
    802.11b/g/n (Network version screen only)
  • OS
    Android 5.1.1
  • Graphic Engine
    OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1

Accessories

  • Included
    Installation Kit, Scheduling Software, Remote Control, User Manual
