Freestanding LCD Digital Kiosks

.avif)

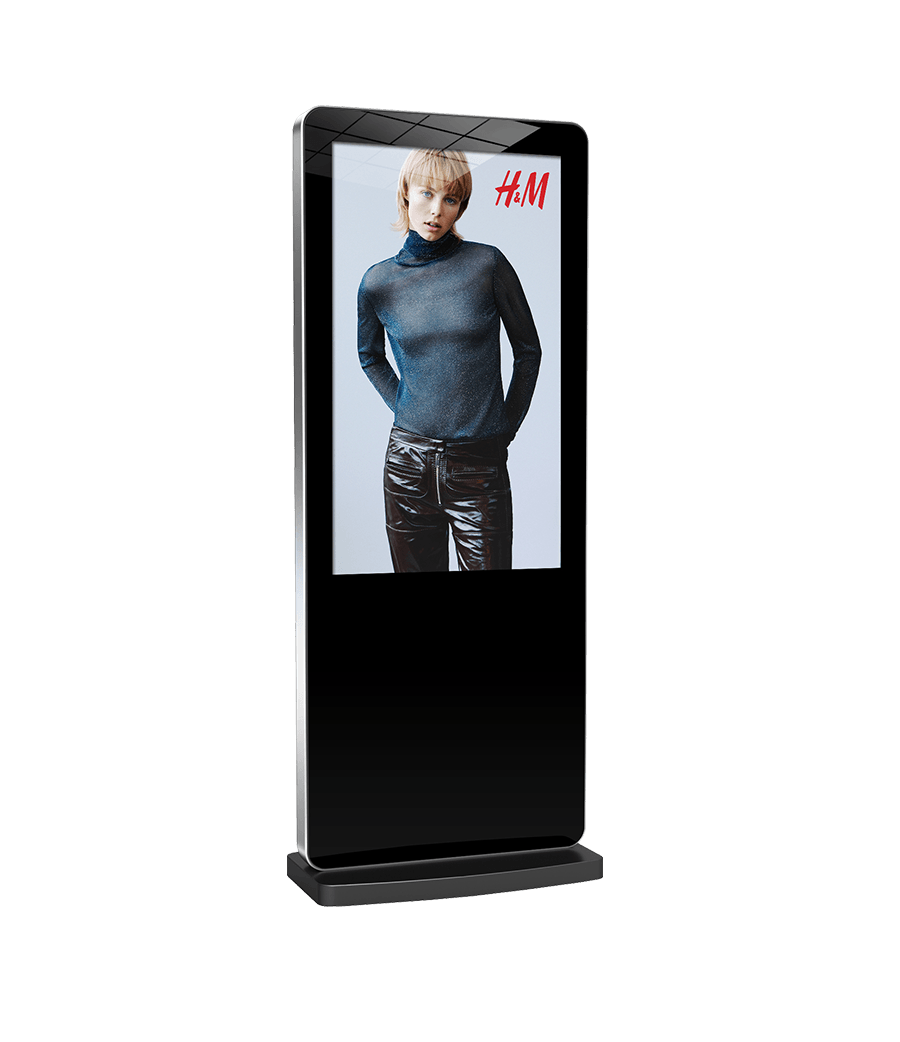

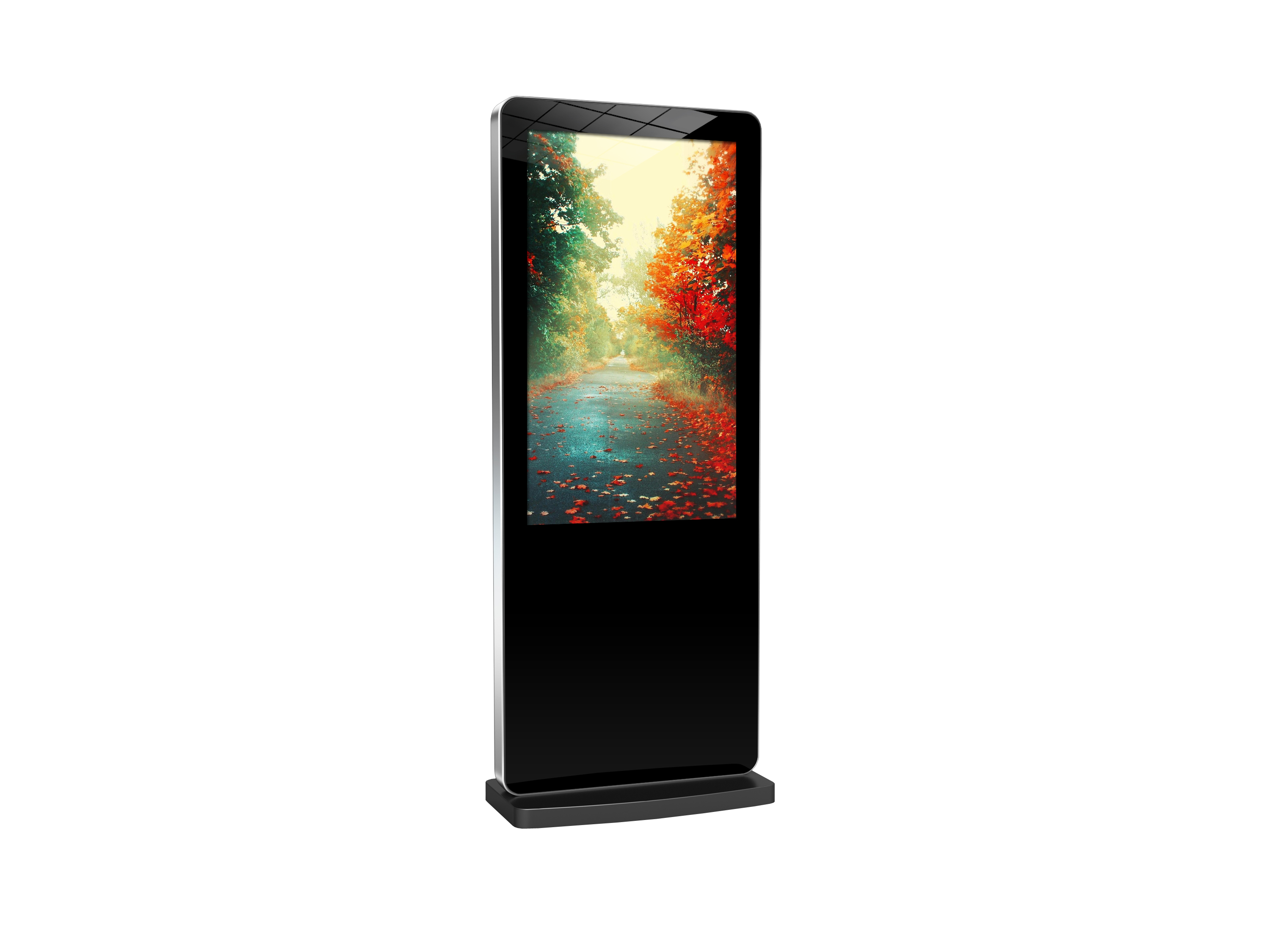

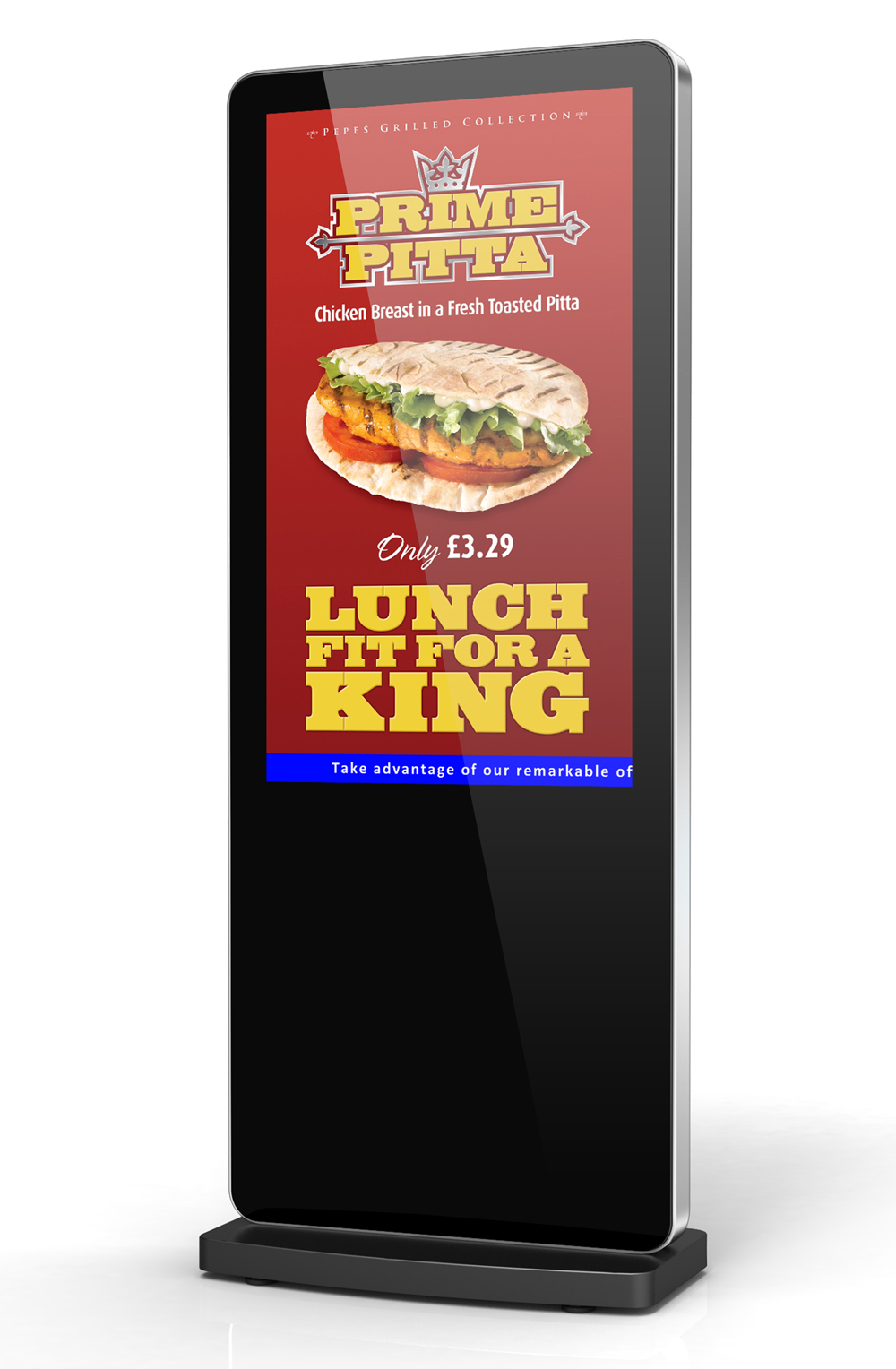

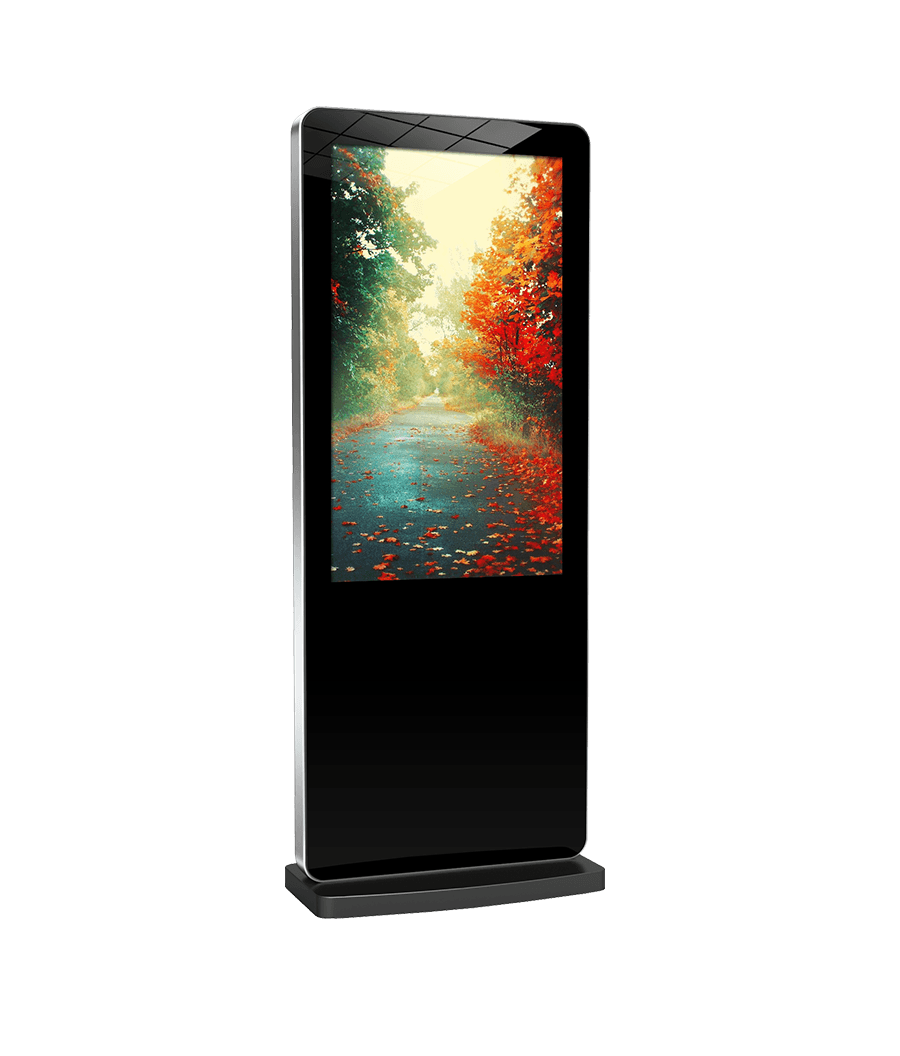

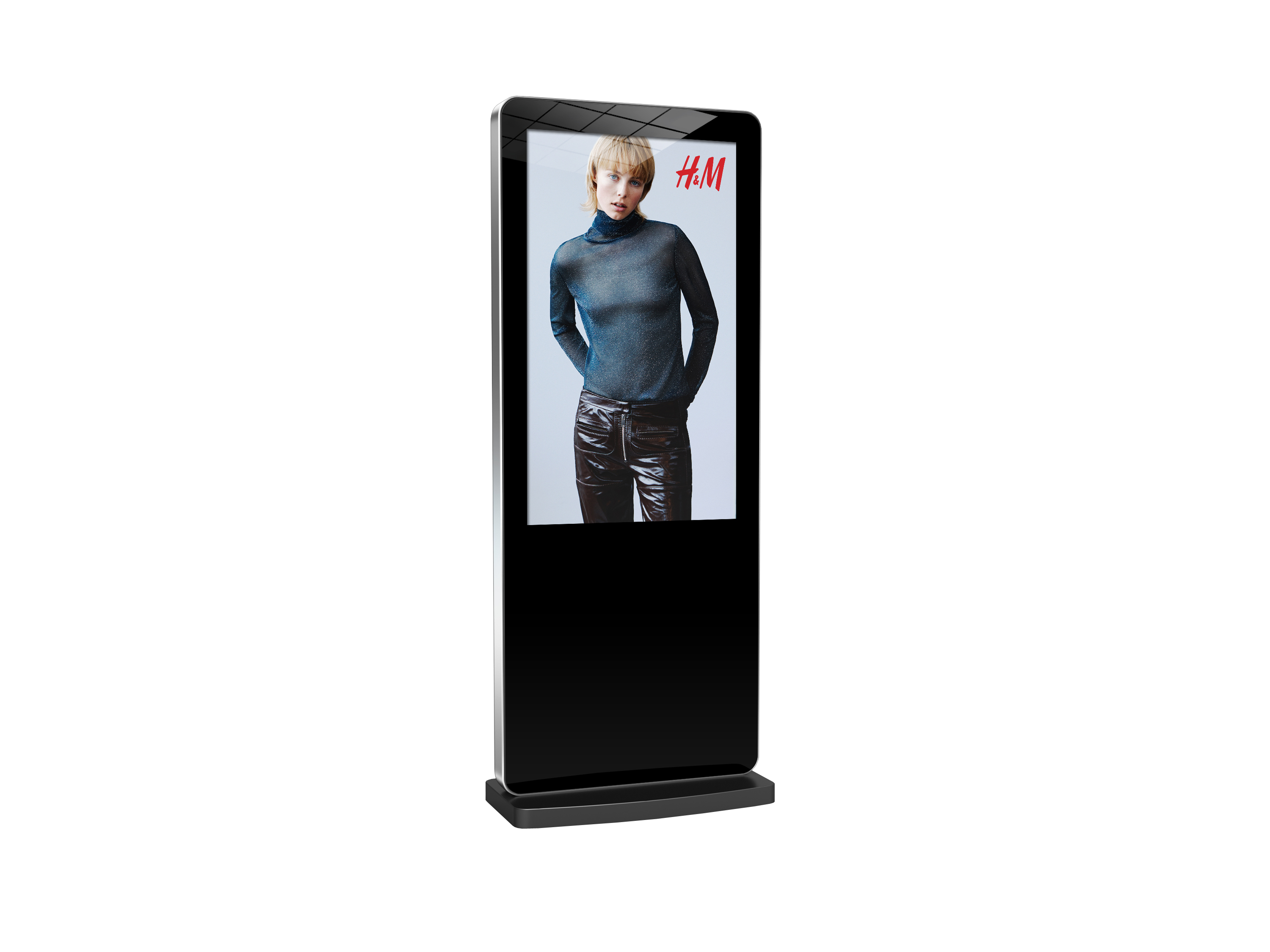

LCD Indoor Freestanding Digital Kiosks
.avif)
.avif)



.avif)


Product Features

Android and Windows Operating Systems for Maximum Flexibility
onQ's freestanding LCD digital kiosks are available with Android or Windows operating systems, enabling compatibility with a wide range of content management platforms, interactive applications, and enterprise software environments. Android configurations offer a cost-effective, reliable platform for digital signage and basic interactive applications. Windows configurations support complex interactive applications, enterprise integrations, and advanced self-service functionality.
Commercial-Grade Panels Built for 24/7 Operation
Every onQ freestanding LCD kiosk is built around a commercial-grade IPS panel rated for continuous 24/7 operation, delivering consistent image quality and reliability that consumer-grade displays cannot match. With high brightness, wide viewing angles, and robust thermal management, these kiosks maintain optimal performance in demanding high-traffic environments throughout the day and night.
Optional Touch Screen for Interactive Applications
onQ's freestanding LCD kiosks are available with multi-touch PCAP touch screen capability, enabling interactive applications including wayfinding, product browsing, self-service ordering, loyalty registration, and customer information services. Touch-enabled kiosks transform passive digital signage into active customer engagement tools that drive measurable business outcomes.
Flexible Content Management with onQ CMS
All onQ freestanding LCD kiosks integrate with onQ CMS for remote content management, enabling real-time updates, dynamic scheduling, and centralised management of all kiosks across your network from a single cloud-based dashboard. Push content updates, manage playlists, and monitor device health from anywhere, at any time.


Applications for Freestanding LCD Digital Kiosks

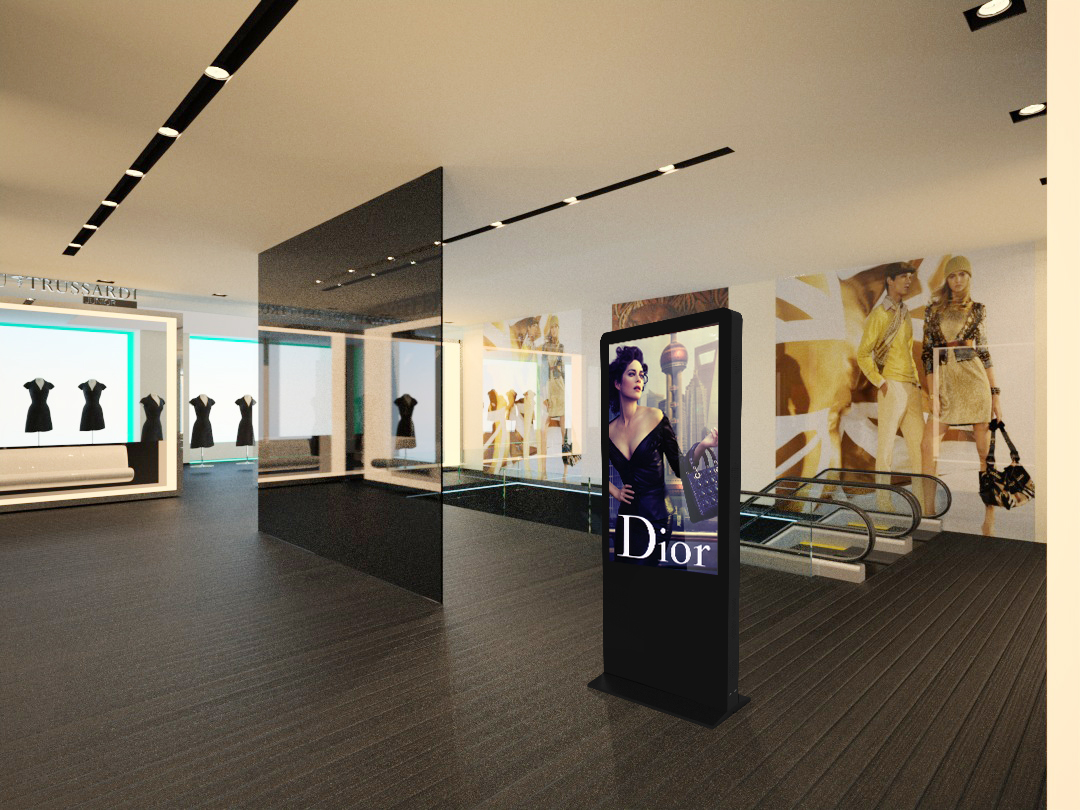

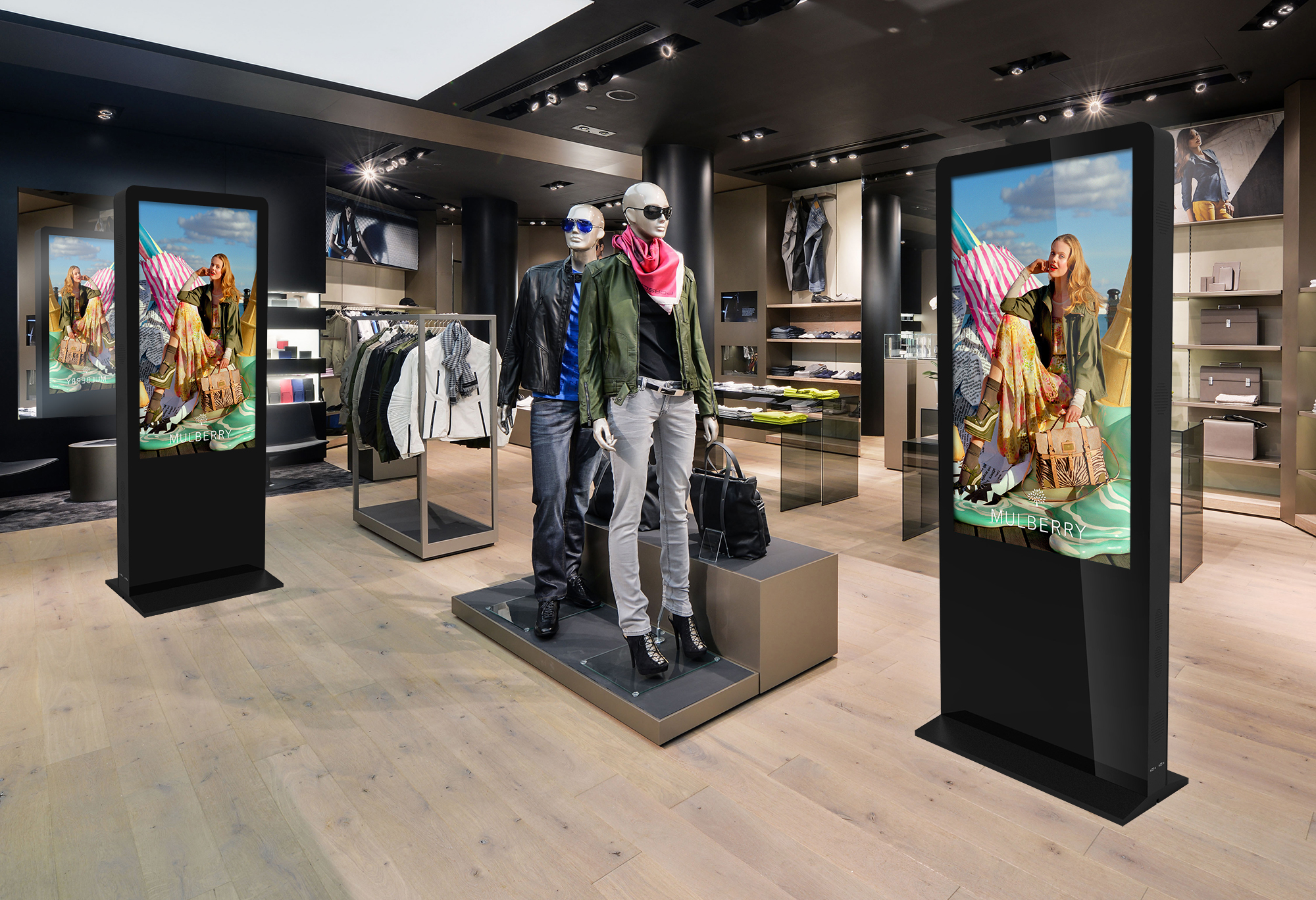

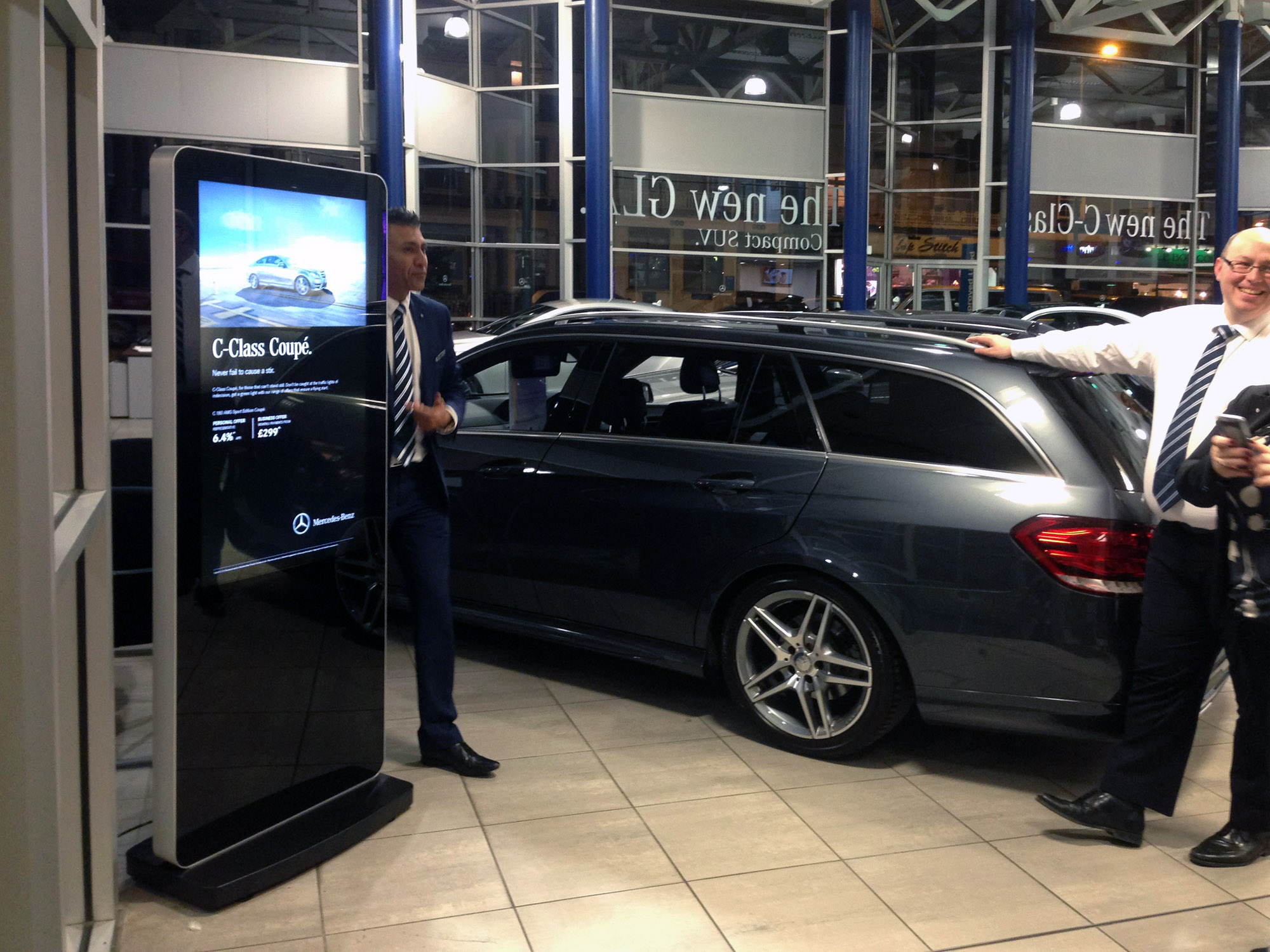

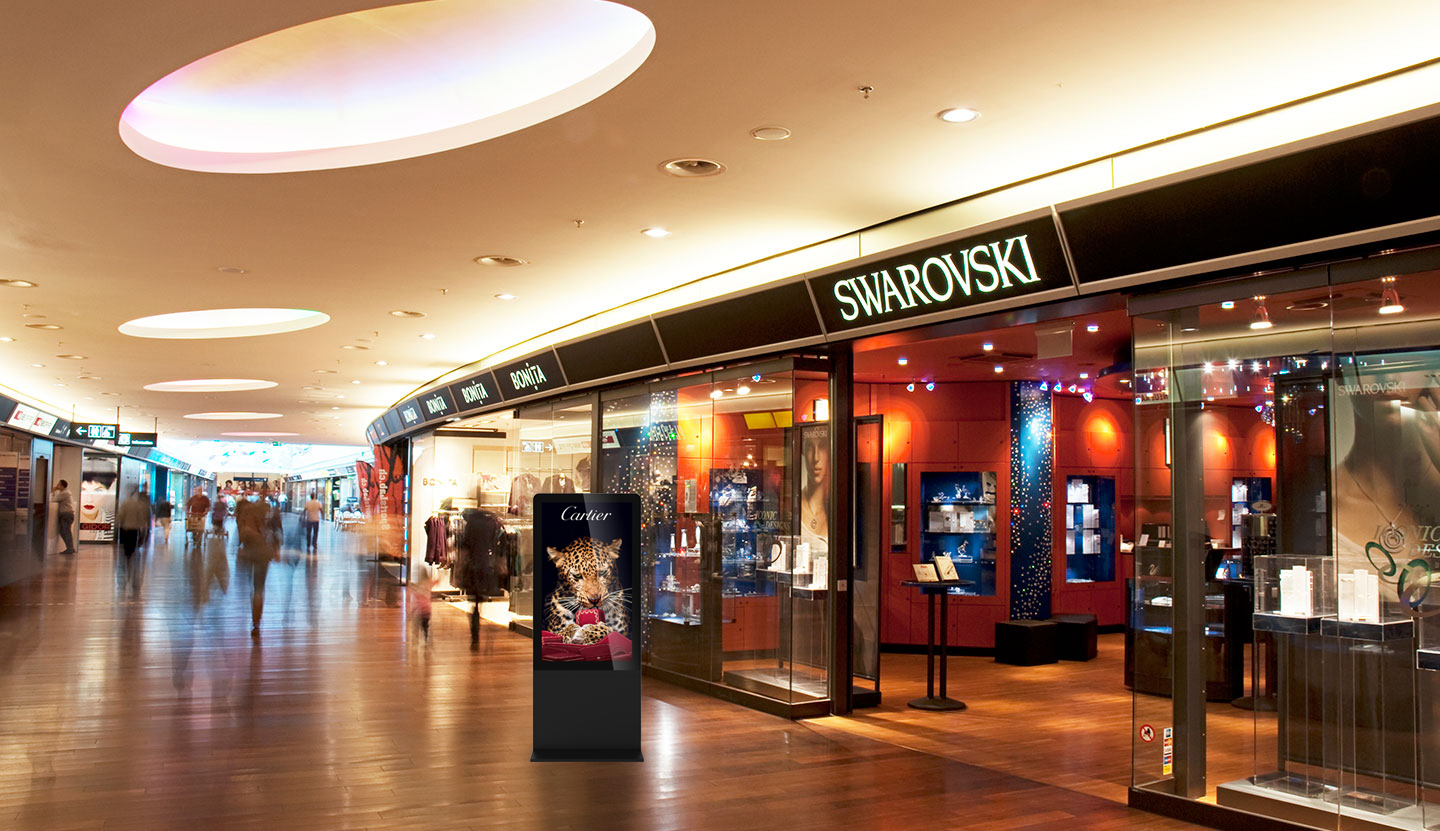

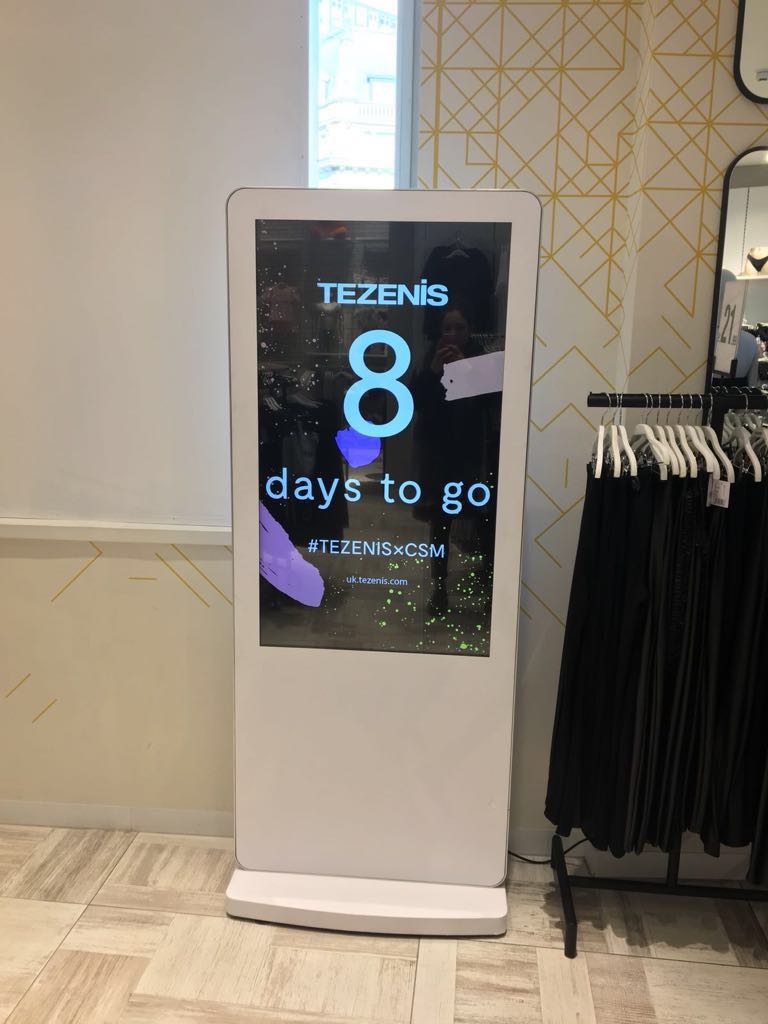

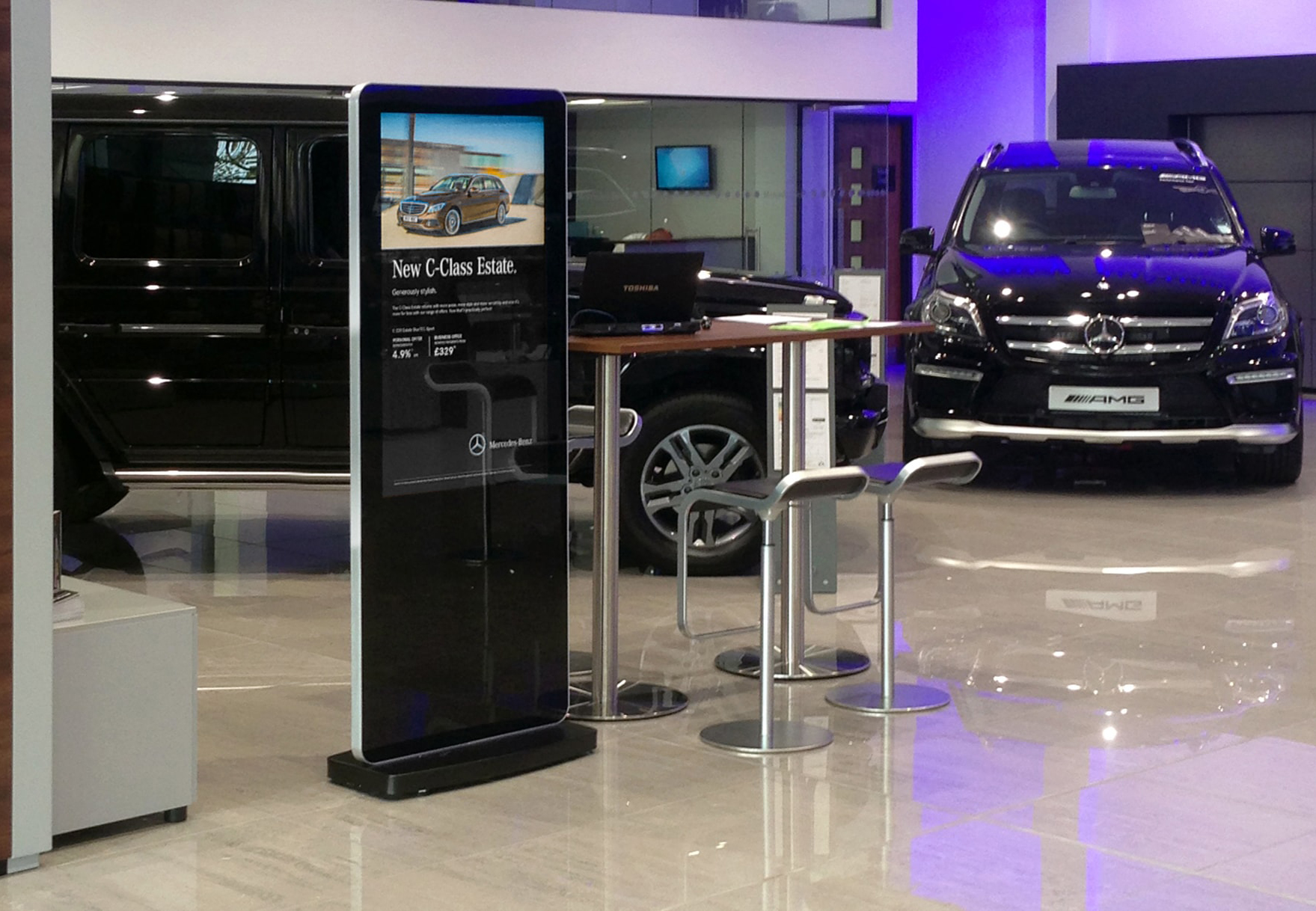

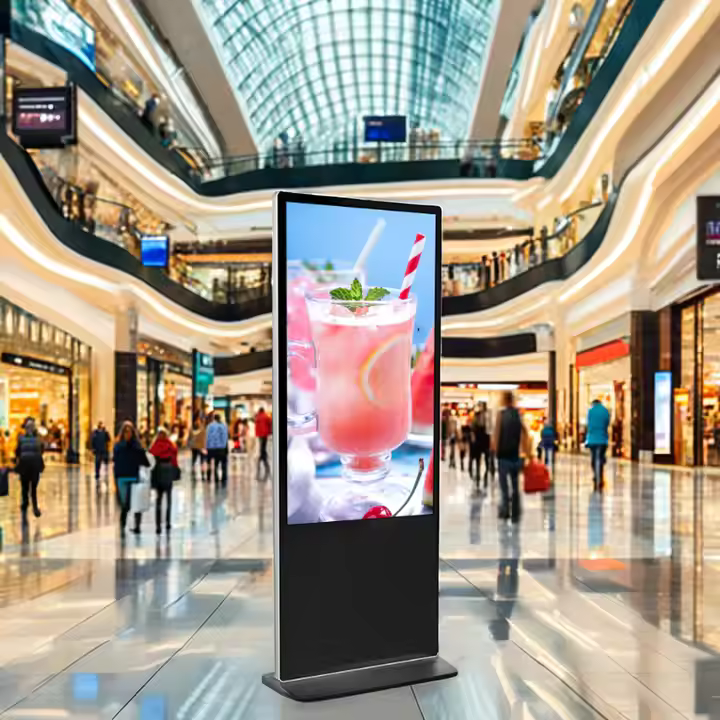

onQ's freestanding LCD digital kiosks are deployed across retail stores and shopping centres, hotel lobbies and hospitality venues, corporate office receptions, healthcare facilities, educational institutions, transport hubs, and government buildings. Their versatile format and configurable software make them suitable for virtually any public-facing digital communication or interactive self-service application.
End-to-End Supply, Installation and Support
onQ Digital provides end-to-end project management for freestanding LCD kiosk deployments, from initial site assessment and specification through to supply, installation, commissioning, and ongoing technical support. Our national field service team covers every major metro and regional centre in Australia, ensuring your kiosk network is installed correctly and supported throughout its operational life.

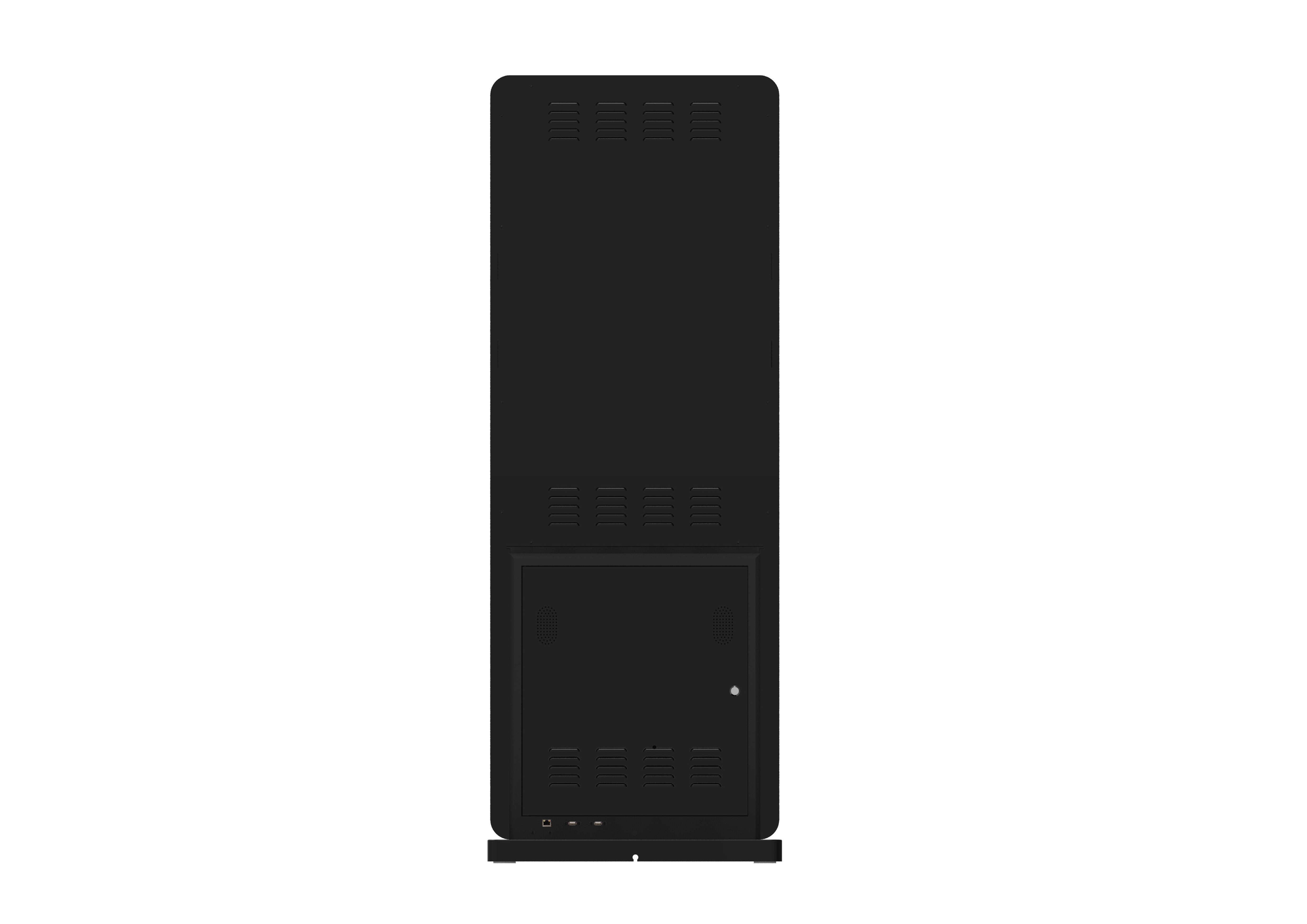

Internal Locker for Enhanced Media Management

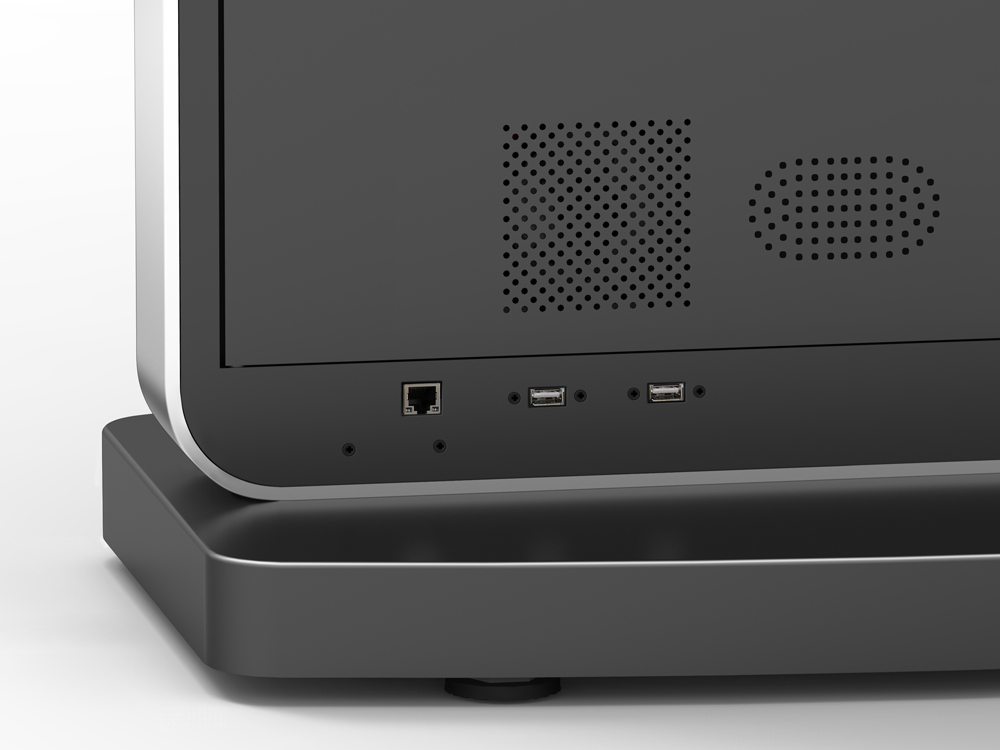

Each indoor digital kiosk comes with a convenient internal locker to simplify media management. With HDMI and VGA inputs, these kiosks can easily connect to external media sources, such as digital signage players or live streaming devices, providing dynamic and versatile content options.
Audio Integration:
For an immersive multimedia experience, each kiosk features a 3.5mm audio jack, allowing for seamless integration with external speakers or audio systems. Whether you're playing background music, delivering promotional announcements, or creating interactive displays, this capability ensures your indoor digital kiosk can captivate audiences with multi-sensory content.

Specifications
- Display Area: 541mm x 943mm
- Unit Size: 600mm x1795mm x 41mm
- Base Size: 600mm x 400mm
- Net Weight: 41kg
- Power Consumption (w): 100
Panel
- Resolution: 3840 x2160 – 4K
- Aspect Ratio: 16:9
- Brightness (cd/m2): 800
- Colour: 16.7M
- Viewing Angle: 178°
- Contrast Ratio: 5000:1
AV Inputs
- Video: HDMI, VGA
- Audio: Audio Socket (3.5mm)
Environmental
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -30°C to 60°C
- Operating Humidity: 10% to 80%
- Storage Humidity: 5% to 95%
- Speaker Type: AC100~240V(50-60Hz)
- Installation: 5W, 8Ω (x2)
Computer
- Media Formats: Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
- Media Resolution: 3840x2160/2160 x 3840
- Internal Memory: 16GB (32/64/128GB)
- CPU: RK3568 (3566/3399/3588)
- RAM: 2GB(4/8/16GB)
- Wi-Fi: 802.11b/g/n (Network version screen only)
- OS: Android 5.1.1
- Display Area: 682.4x1211.6
- Unit Size: 813x1965x50
- Base Size: 813x400
- Net Weight: 87kg
- Power Consumption (w): 120
Panel
- Resolution: 3840 x2160 – 4K
- Aspect Ratio: 16:9
- Brightness (cd/m2): 800
- Colour: 16.7M
- Viewing Angle: 178°
- Contrast Ratio: 5000:1
AV Inputs
- Video: HDMI, VGA
- Audio: Audio Socket (3.5mm)
Environmental
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -30°C to 60°C
- Operating Humidity: 10% to 80%
- Storage Humidity: 5% to 95%
- Speaker Type: AC100~240V(50-60Hz)
- Installation: 5W, 8Ω (x2)
Computer
- Media Formats: Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
- Media Resolution: 3840x2160/2160 x 3840
- Internal Memory: 16GB (32/64/128GB)
- CPU: RK3568 (3566/3399/3588)
- RAM: 2GB(4/8/16GB)
- Wi-Fi: 802.11b/g/n (Network version screen only)
- OS: Android 5.1.1
- Display Area: 805mm x 1430mm
- Unit Size: 912mm x 2084mm x 41mm
- Base Size: 912x400
- Net Weight: 71kg
- Power Consumption (w): 146
Panel
- Resolution: 3840 x2160 – 4K
- Aspect Ratio: 16:9
- Brightness (cd/m2): 800
- Colour: 16.7M
- Viewing Angle: 178°
- Contrast Ratio: 5000:1
AV Inputs
- Video: HDMI, VGA
- Audio: Audio Socket (3.5mm)
Environmental
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -30°C to 60°C
- Operating Humidity: 10% to 80%
- Storage Humidity: 5% to 95%
- Speaker Type: AC100~240V(50-60Hz)
- Installation: 5W, 8Ω (x2)
Computer
- Media Formats: Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
- Media Resolution: 3840x2160/2160 x 3840
- Internal Memory: 16GB (32/64/128GB)
- CPU: RK3568 (3566/3399/3588)
- RAM: 2GB(4/8/16GB)
- Wi-Fi: 802.11b/g/n (Network version screen only)
- OS: Android 5.1.1
- Display Area: 926mm x 1648mm
- Unit Size: 1015mm x 2010mm x100mm
- Base Size: 1015mm x400mm
- Net Weight: 106kg
- Power Consumption (w): 170
Panel
- Resolution: 3840 x2160 – 4K
- Aspect Ratio: 16:9
- Brightness (cd/m2): 800
- Colour: 16.7M
- Viewing Angle: 178°
- Contrast Ratio: 5000:1
AV Inputs
- Video: HDMI, VGA
- Audio: Audio Socket (3.5mm)
Environmental
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -30°C to 60°C
- Operating Humidity: 10% to 80%
- Storage Humidity: 5% to 95%
- Speaker Type: AC100~240V(50-60Hz)
- Installation: 5W, 8Ω (x2)
Computer
- Media Formats: Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
- Media Resolution: 3840x2160/2160 x 3840
- Internal Memory: 16GB (32/64/128GB)
- CPU: RK3568 (3566/3399/3588)
- RAM: 2GB(4/8/16GB)
- Wi-Fi: 802.11b/g/n (Network version screen only)
- OS: Android 5.1.1
Complete the form to download our spec sheet and get full details about this product
