Bespoke Outdoor Digital Signage Solutions Optimised for Crystal Clear Distant Viewing

LED Outdoor Large Format Displays

Digital directory boards are electronic displays that show directories, maps, or other information to help people navigate a building or campus. They are commonly used in hospitals, schools, office buildings, and other large facilities. Digital directory boards can be used in place of traditional paper directories, or as an additional display in addition to paper directories.

Digital directory boards can be created and managed using specialized software that allows the user to easily update and change the content, such as adding new locations or updating directions. They can also be programmed to display different information at different times of the day, such as office hours or emergency information. Digital directory boards may also include additional features, such as the ability to display images or interactive maps, or to provide real-time information, such as the location of available parking spaces.

Digital directory boards have several advantages over traditional paper directories, including cost-effectiveness, flexibility, and the ability to easily update and change the content. They can also be more engaging and visually appealing, which can help improve the user experience and reduce the burden on staff who would otherwise have to provide directions or answer questions.

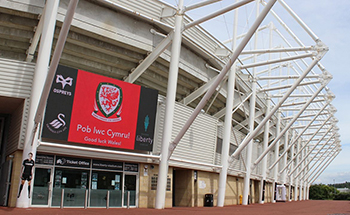

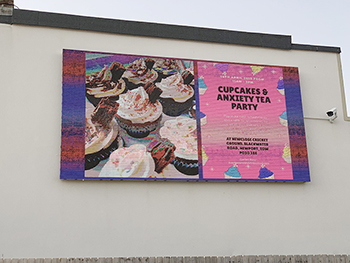

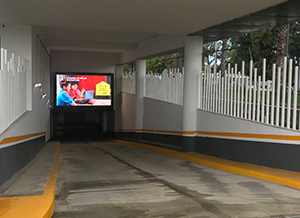

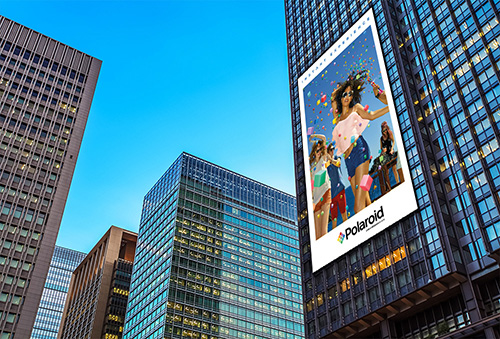

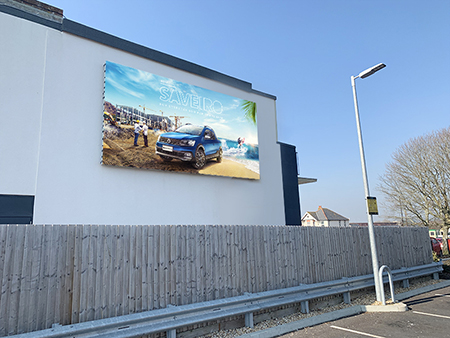

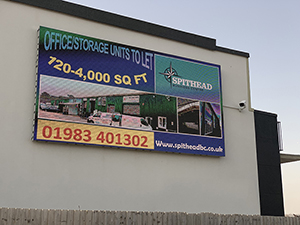

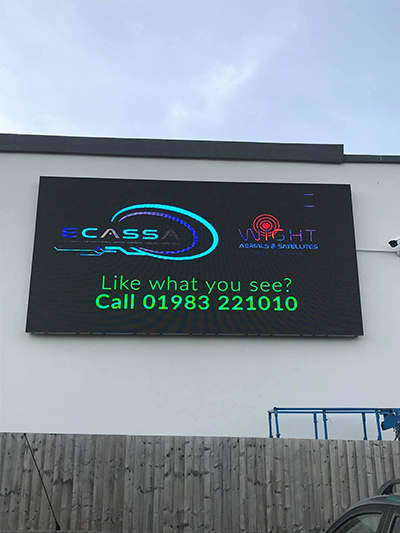

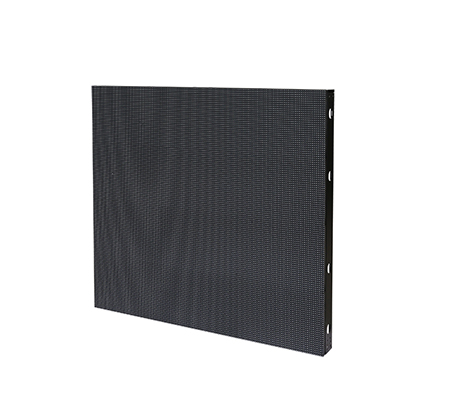

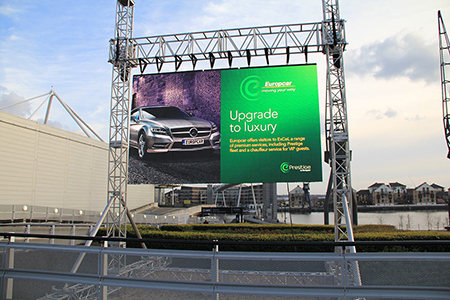

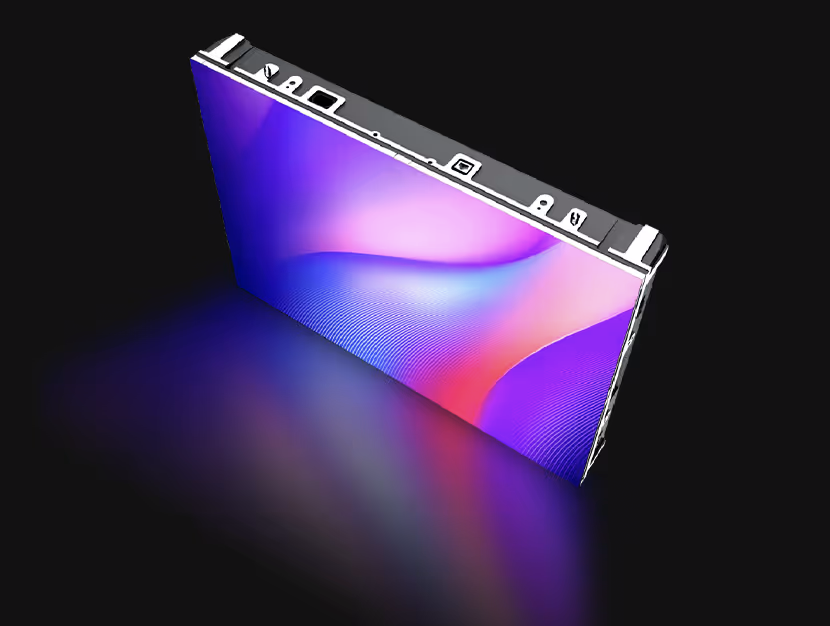

The onQ QA Series is the latest generation of onQ's fixed outdoor LED cabinets. The video wall displays in this series utilize a new aluminum profile that allows for an ultra-lightweight and ultra-slim cabinet structure. The onQ QA series are a perfect fit for large scale outdoor displays used in sports venues and DOOH.

  • 4, 6, and 10mm pixel pitch
  • up to 7,500-nit brightness
  • IP65 outdoor protection rating
  • Front and rear installation and service
  • Ultra-slim and ultra-light
  • Efficient power consumption

Product Features

Ultra-Slim and Ultra-Light

Compared with traditional fixed LED displays, the aluminum panel is of excellent precision and hardness, enabling a 54% reduction in thickness and 42% reduction in weight. As a result the cabinet weight is only 28kg/m². This greatly improves the installation and impact on the construction and fixation needs.

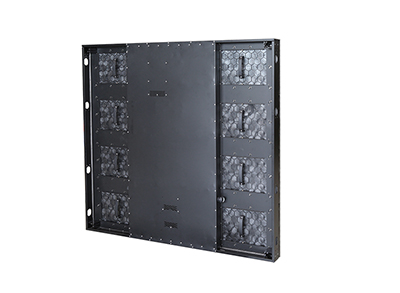

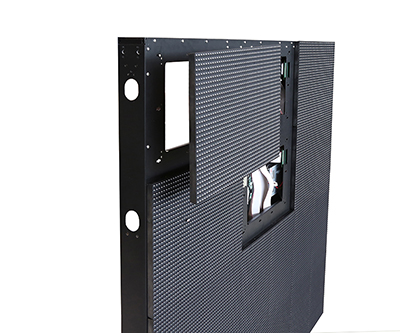

100% Front or Back Maintenance

The LED modules can be released from the front and removed both from the front or backside. The power control box is designed for quick, easy and efficient maintenance compared to the traditional multi-door designs. It also improves the flexibility and speed of serviceability.

Front Side Installation

The QA Series displays can be mounted close to the wall to save space and fit into a variety of installation environments.

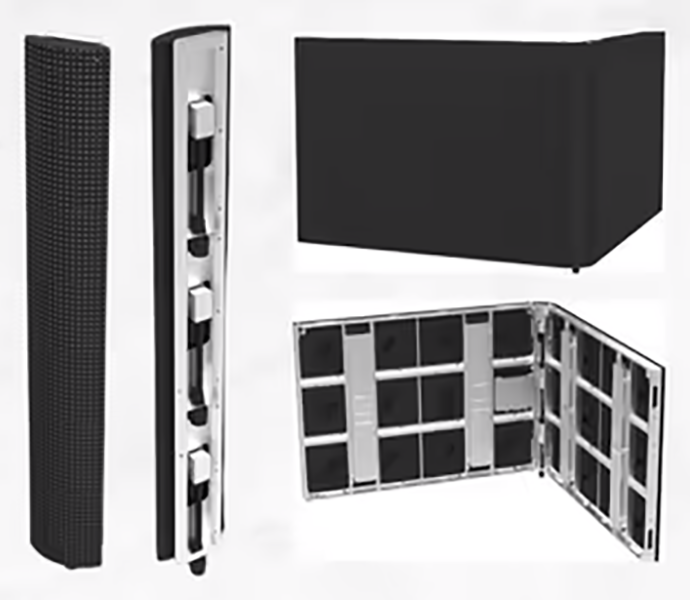

Corner Installation

For those installations that require a corner, such as for example a naked-eye 3D wall. We have optionally available a dedicated corner cabinet. This ensure a seamless 90° corner. With no gap or black line visible there is no interruption in the image and a true seamless solution can be created.

High Brightness

These high-brightness outdoor displays ensure vivid and clear image quality even in bright sunlight and are suitable for day and night use.

  • Brightness up to 7500nits
  • Lower power consumption. E.g. QA10S: it saves 25% power over a traditional cabinet; the average power is only 265W/m²

Weatherproof

  • Low temperature resistant design, operating temperature is -30° to 60°C.
  • No need for any additional fans, which reduces operating costs.
  • Full waterproof protection, both cabinet and module are water resistant. Full IP65 waterproof rating front and back side.

Stunning Image Quality

We use state of the art SMD-LED technology to create crystal clear image quality so that you can create timeless stunning visual displays. Our advanced video processing systems generate smooth image quality with zero image distortion. You’ll easily catch every eye inside, and outside the room.


Outstanding High Brightness

Our video walls emit an incredible brightness level of 6000cd/m2 for unparalleled visibility. Their image quality stays consistently strong even against direct sunlight, ensuring your content is seen 24/7.


Weatherproof

Every video wall is housed in a robust aluminum enclosure to give it maximum protection against the harshest environmental conditions. Our outer casings carry IP-rated certification, and can withstand extreme heat, moisture, wind and dust even over long periods.


Ultra High Contrast Ratio

All our LED Video Walls generate a contrast ratio of 6,000:1. This allows them to produce immersive color spectrums and outstanding visibility without compromising on image quality.


Easy Installation

Our quick-mount system is a dream for both permanent and temporary installations. With a simple design composed of magnetic modules, positioning pins and a simple cabinet structure, installation, removing and changing screens is nearly effortless.

Lightweight and Slim Design

Our sleek, lightweight screen design places minimal stress on their mounting systems. Each cabinet weighs only 28 kg, and has a depth of 100mm for easy installation and minimal intrusion.

Waterproof

Each video wall comes with an exceptional waterproof level, and is designed with high protective grades and for high weather resistance. Our fixed mounting module has only four screws and can be easily assembled and disassembled. Our screens come with a fully closed structure that safely protects the inner electronic components from oxidation.

Fittings

Screen can be customized to sit at 90 degree angles. We also include options for single sided & double sided lightbox screens, as well as wall mounting and customised curved screens

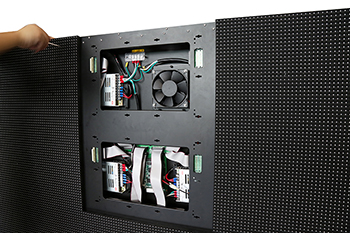

Front or Rear Serviceability

Service your screens quickly and efficiently through our user-friendly maintenance system. Our LED Video Walls can be serviced through a front or rear panel for easy access and painless maintenance.


Easy Installation

Our easy-mount system uses magnetic modules, positioning pins and a simple cabinet structure. This user-friendly mounting system makes our screens ideal for temporary or permanent installations, as well as rental jobs.


Lightweight and Slim Design

Every screen cabinet weighs just 28kg and has a depth of 100mm, making them some of the slimmest and most lightweight units on the current market. Our screens are designed to be lightweight to place minimal stress on the mounting structure.

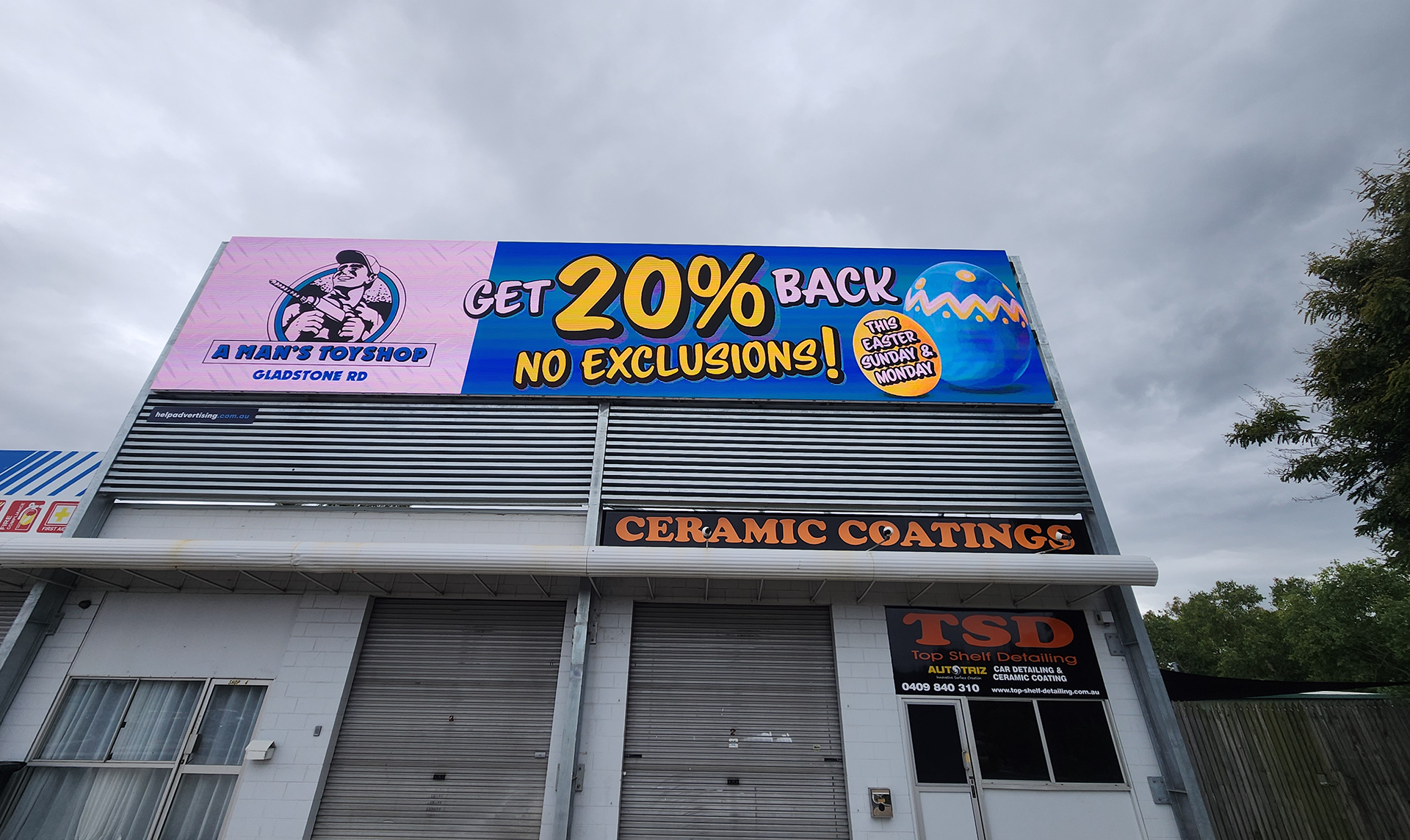

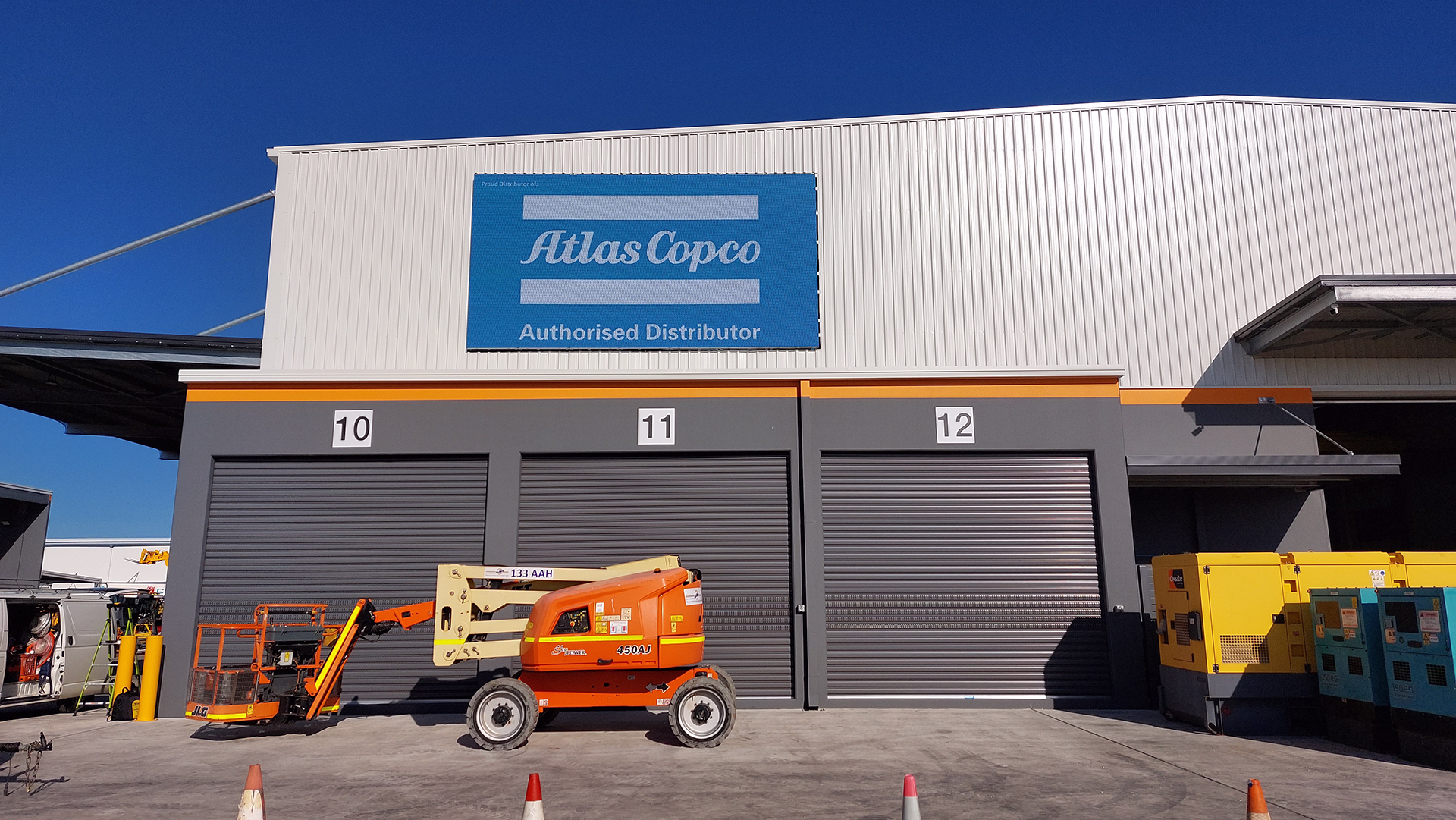

Project Videos

Product specs

Model QA04S QA06S QA10S
Pixel Configuration SMDSMDSMD
Physical Pixel Pitch (mm)4.446.6710
Module Resolution (WxH)72x7248x4832x32
Module Dimension (WxH, mm)320x320320x320320x320
Module Composition (WxH)Standard: 4x3Standard: 4x3Standard: 4x3
Cabinet Resolution (WxH)288x216192x144 128x96
Cabinet Dimension (WxHxD, mm)Standard: 1280x960x71 (Optional: 1280X640 / 640X960 / 640X640)Standard: 1280x960x71 (Optional: 1280X640 / 640X960 / 640X640)Standard: 1280x960x71 (Optional: 1280X640 / 640X960 / 640X640)
Cabinet Area (m²)Standard: 1.2288Standard: 1.2288Standard: 1.2288
Weight (kg/cabinet; kg/m²)35; 2835; 28 35; 28
Pixel Density (Point/m²)5062522500 10000
IP LevelIP65 Front/RearIP65 Front/Rear IP65 Front/Rear
Brightness (nits) 6000 75007500
Color Temperature (K) 3000-100003000-100003000-10000
Viewing Angle (horiz; vert) ° 150; 110150; 110 150; 110
Deviation of LED Luminance Center (after calibration)<3%<3% <3%
Contrast Ratio6000:16000:16000:1
Power Consumption(max; avg)/m²720W; 240W790W; 265W790W; 265W
Input Voltage (V)AC100~240V(50-60Hz)AC100~240V(50-60Hz)AC100~240V(50-60Hz)
Installation Front/RearFront/RearFront/Rear
MaintenanceFront/Rear accessFront/Rear accessFront/Rear access
Refresh Rate @60Hz≥3840≥3840≥3840
Frame Rate Processing (Hz)50 & 6050 & 6050 & 60
Operation Temperature (°C) -30 to 60-30 to 60 -30 to 60
Storage Temperature (°C) -40 to 60 -40 to 60 -40 to 60
Operation Humidity (RH) 10 - 90% 10 - 90% 10 - 90%
Storage Humidity (RH) 10 - 80%10 - 80%10 - 80%
