High-brightness outdoor LED billboard systems for roadside and venue advertising.

Outdoor LED Billboards

Outdoor Waterproof
Glassless design
Sunlight Readable Image
Ultra-Narrow Bezel
High Brightness
Heat Dissipation

Product Features

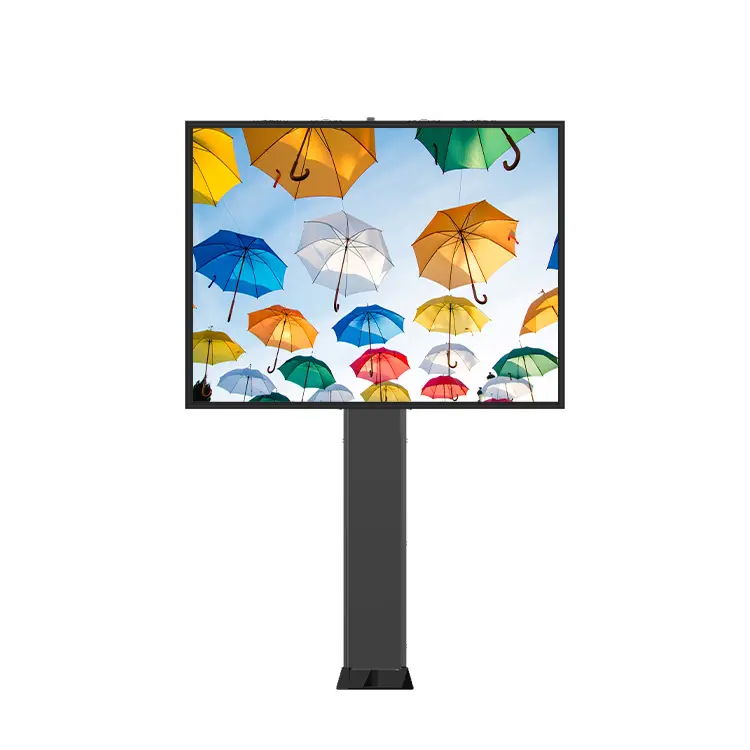

Enhanced Visibility and Engagement for Roadside Advertising

One of the primary advantages of outdoor LED billboards over traditional static billboard formats is the ability to display dynamic, animated content that captures motorist and pedestrian attention far more effectively than static imagery. Dynamic content, video, and animated graphics deliver significantly higher recall rates than static advertising, enabling advertisers to communicate more complex messages and achieve greater campaign impact from the same billboard location.

Ultra-High Brightness for Visibility at Roadside Distances

Roadside LED billboards must remain legible at viewing distances of 50 to 500 metres in direct sunlight. onQ's outdoor LED billboards deliver brightness levels up to 10,000 nits, ensuring vivid, legible content in the most challenging outdoor lighting conditions. Automatic brightness adjustment reduces power consumption at night while maintaining full brightness during daylight hours.

IP65 Weatherproof Construction for Long-Term Outdoor Operation

onQ's outdoor LED billboards carry an IP65 weatherproof rating, providing complete protection against dust and water ingress in the full range of Australian weather conditions. The robust enclosure design and high-quality LED components are engineered for long-term outdoor operation, minimising maintenance requirements and maximising the operational life of the billboard asset.

Flexible Advertising Inventory Management via onQ CMS

onQ's outdoor LED billboards integrate with onQ CMS for centralised advertising inventory management. Schedule multiple advertisers across time slots, manage campaign start and end dates, deliver proof-of-play reports to advertisers, and update creative assets remotely without requiring physical access to each billboard location.

Applications for Outdoor LED Billboards

onQ's outdoor LED billboards are deployed by outdoor media companies for roadside digital advertising networks, retailers for large-format exterior brand advertising, property developers for building facade advertising assets, sports stadiums for perimeter advertising and scoreboard applications, shopping centres for exterior tenant and event advertising, and any property owner seeking to monetise their outdoor advertising inventory through digital LED technology.

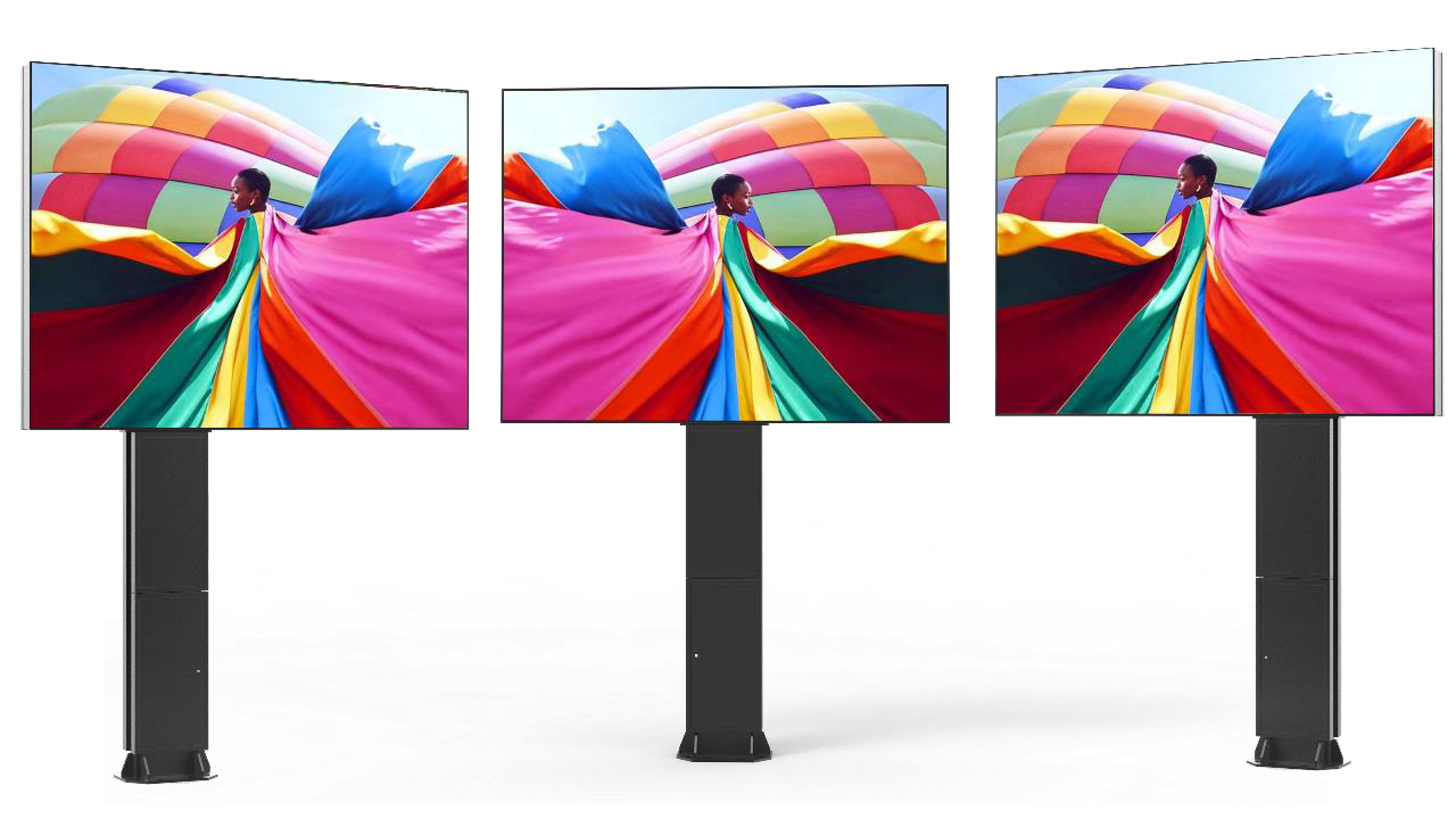

Real-Time Content Updates

The ability to update content in real-time offers businesses the agility to respond to market trends, news, or unforeseen events promptly. This responsiveness ensures that advertising content remains relevant and engaging, which can lead to increased consumer interest and higher conversion rates.​

Strategic Placement and Audience Targeting

Placing LED billboards in high-traffic areas such as highways, city centers, and commercial districts ensures maximum exposure. Coupled with data analytics, businesses can assess the effectiveness of specific locations and times, allowing for strategic planning and optimization of advertising efforts. This targeted approach enhances the likelihood of reaching potential customers, thereby increasing sales opportunities

Specifications

  • Pixel pitch: 10mm
  • Pixel density(dots/m2): 10000
  • LED encapsulation: SMD3535
  • Scan rate: 1/2 scan
  • Module size: 320 x 320 mm
  • Module Resolution: 32 x 32
  • Cabinet size: 960 x 960 x 100 mm
  • Cabinet Resolution: 96 x 96
  • Weight per Cabinet: 24.5 kg
  • Brightness(cd/m2): ≥6500(8000-10000)
  • Max. power consumption(W/m2): 450
  • Ave. power consumption(W/m2): 150
  • Energy Saving design: 2.8V & 3.8V Low voltage design
  • Degree of Protection: Front IP67/Rear IP65
  • Service: Front & Rear Dual service
  • Power Supply: AC120 /240V (50Hz) (optional)
  • Refresh Rate (Hz): ≥ 1920Hz ( 3840Hz Optional)

  • Pixel pitch: 8mm
  • Pixel density(dots/m2): 15625
  • LED encapsulation: SMD3535
  • Scan rate: 1/4 scan
  • Module size: 320 x 320 mm
  • Module Resolution: 40 x 40
  • Cabinet size: 960 x 960 x 100 mm
  • Cabinet Resolution: 120 x 120
  • Weight per Cabinet: 24.5 kg
  • Brightness(cd/m2): ≥6500 (8000-10000)
  • Max. power consumption(W/m2): 450
  • Ave. power consumption(W/m2): 150
  • Energy Saving design: 2.8V & 3.8V Low voltage design
  • Degree of Protection: Front IP67/Rear IP65
  • Service: Front & Rear Dual service
  • Power Supply: AC120 /240V (50Hz) (optional)
  • Refresh Rate (Hz): ≥ 1920Hz ( 3840Hz Optional)

  • Pixel pitch: 6,6mm
  • Pixel density(dots/m2): 22500
  • LED encapsulation: SMD2727
  • Scan rate: 1/6 scan
  • Module size: 320 x 320 mm
  • Module Resolution: 48 x 48
  • Cabinet size: 960 x 960 x 100 mm
  • Cabinet Resolution: 144 x 144
  • Weight per Cabinet: 24.5 kg
  • Brightness(cd/m2): ≥6000 (8000-10000)
  • Max. power consumption(W/m2): 450
  • Ave. power consumption(W/m2): 150
  • Energy Saving design: 2.8V & 3.8V Low voltage design
  • Degree of Protection: Front IP67/Rear IP65
  • Service: Front & Rear Dual service
  • Power Supply: AC120 /240V (50Hz) (optional)
  • Refresh Rate (Hz): ≥ 1920Hz ( 3840Hz Optional)

  • Pixel pitch: 5,3mm
  • Pixel density(dots/m2): 35156
  • LED encapsulation: SMD2727
  • Scan rate: 1/6 scan
  • Module size: 320 x 320 mm
  • Module Resolution: 60 × 60
  • Cabinet size: 960 x 960 x 100 mm
  • Cabinet Resolution: 180 x 180
  • Weight per Cabinet: 24.5 kg
  • Brightness(cd/m2): ≥5500 (8000-10000)
  • Max. power consumption(W/m2): 500
  • Ave. power consumption(W/m2): 175
  • Energy Saving design: 2.8V & 3.8V Low voltage design
  • Degree of Protection: Front IP67/Rear IP65
  • Service: Front & Rear Dual service
  • Power Supply: AC120 /240V (50Hz) (optional)
  • Refresh Rate (Hz): ≥ 1920Hz ( 3840Hz Optional)
