Outdoor Wall Mounted LCD Digital Displays

Digital directory boards are electronic displays that show directories, maps, or other information to help people navigate a building or campus. They are commonly used in hospitals, schools, office buildings, and other large facilities. Digital directory boards can be used in place of traditional paper directories, or as an additional display in addition to paper directories.

Digital directory boards can be created and managed using specialized software that allows the user to easily update and change the content, such as adding new locations or updating directions. They can also be programmed to display different information at different times of the day, such as office hours or emergency information. Digital directory boards may also include additional features, such as the ability to display images or interactive maps, or to provide real-time information, such as the location of available parking spaces.

Digital directory boards have several advantages over traditional paper directories, including cost-effectiveness, flexibility, and the ability to easily update and change the content. They can also be more engaging and visually appealing, which can help improve the user experience and reduce the burden on staff who would otherwise have to provide directions or answer questions.

Image 1
Category: Outdoor LCD Digital Signage Tags: DOOH Digital signage, DOOH KIOSK, Outdoor Digital Kiosk, Outdoor Kiosk, Outdoor LCD digital signage, wall mount outdoor digital signage
  • IP55 Wall Mounted Outdoor LCD Digital Signage
  • High Brightness: 2500 nits ~3500nits (Truly Sunlight Readable, No blacking)
  • Weatherproof Technology: fully-enclosed design allows for 24/7 outdoor use
  • Wide working temp: -20~+50℃ & IP55, capable of exposure to direct sunlight, rain, snow, and dust
  • Guaranteed performance: 50000 hours
  • Aluminum Frame Work Design for Using in Coastal cities.
  • Industrial-grade LCD panel with wide working temperature.

Project Videos

Product specs


  • Long-lasting brightness: Thanks to the high-efficiency LED backlight panel from the Huaview R&D team, 24 x 7 is achievable; besides, the monitor is also excellently viewable from every angle even under strong sunlight, which attracts passengers’ visual attention.
  • Temperature & humidity control: Embedded heater, fans & sensors are comprehensively working together to keep the whole unit with a correct working temperature against hot/cold/ humid weather.
  • Temperature & humidity control: Embedded heater, fans & sensors are comprehensively working together to keep the whole unit with a correct working temperature against hot/cold/ humid weather.
  • Ambient brightness sensor: The brightness is automatically adjusted according to environmental brightness, night mode(lowest brightness) will be activated at the night, and the highest brightness will be turned on at noon with strong sunlight.
  • Slim Thickness: 120mm Thickness
  • Installation: Wall Mounted, portrait, or landscape is optional.

Wall Mounted Outdoor LCD Digital Signage Specification sheet:

Model Rustless Aluminum Wall Mounted Outdoor LCD Digital Signage
Panel Size
Panel Size (inch) 43″ 49″ 55″ 65″ 75″
LCD Manufacturer LG / BOE
Active Display Area (h x w mm) Standard size
Resolution (pixel) 1920*1080, FHD/4K
Aspect Ratio 16: 9
Brightness (nits) 2000~2500nits
Contrast Ratio 4000: 1
Grey to Grey Response Time (ms) 6 ms
Viewing Angle (H/V) 178°/178°
Backlight Configuration LED light
Operational Life Cycle-MTBF (hours) 50000
Input Voltage AC220/110 V ± 10%, 50 / 60 HZ
Leakage Protection 30mA/0.1S
Input Voltage AC220 / 110V ± 10%, 50 / 60 HZ
Max Power Consumption (w) TBD
Enclosure Material
IP Rating IP55
Enclosure Material Aluminum framework and no rust in any coastal city

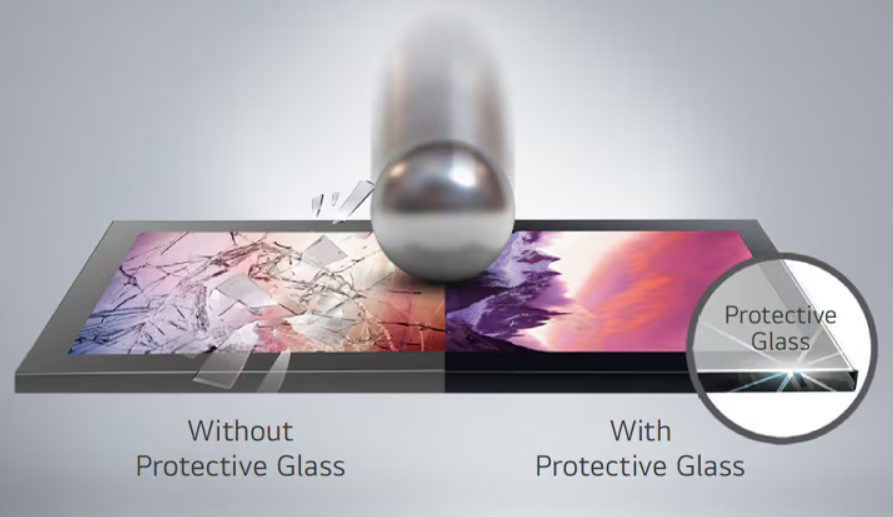

Glass Type Tempered glass with AR coating
Glass Characteristics Transmissivity > 93%, Reflectivity < 2%
Unit Dimension (w x h x d mm) 1040 x 2200 x 180
Bezel Width (mm) 120
Weight (kg) TBD
Operating Environment Full Outdoor
Operating Temp. -20℃ ~ +50℃
Operating Humidity 5% ~ 98%
Operating Altitude (m) ≤ 2000
Media & Connectivity
Option Windows / Android / TV Board
4G /3G
Touch Screen: Nano Touch/PCAP Touch/ Optical bonding PCAP Touch
