Transparent LED Adhesive Film

Digital directory boards are electronic displays that show directories, maps, or other information to help people navigate a building or campus. They are commonly used in hospitals, schools, office buildings, and other large facilities. Digital directory boards can be used in place of traditional paper directories, or as an additional display in addition to paper directories.

Digital directory boards can be created and managed using specialized software that allows the user to easily update and change the content, such as adding new locations or updating directions. They can also be programmed to display different information at different times of the day, such as office hours or emergency information. Digital directory boards may also include additional features, such as the ability to display images or interactive maps, or to provide real-time information, such as the location of available parking spaces.

Digital directory boards have several advantages over traditional paper directories, including cost-effectiveness, flexibility, and the ability to easily update and change the content. They can also be more engaging and visually appealing, which can help improve the user experience and reduce the burden on staff who would otherwise have to provide directions or answer questions.

Transparent LED Adhesive Film

In recent years, there has been a growing demand for innovative and creative ways to enhance communication and visual display. One such technology that has emerged as a gamechanger is Adhesive Transparent LED Film. This unique technology has become increasingly popular due to its versatile applications in various industries.

Adhesive Transparent LED Film is a cutting-edge technology that is designed to provide an efficient and flexible solution for visual communication. Unlike traditional display technologies that require bulky screens and significant support systems, Adhesive Transparent LED Film is a thin, transparent film that can be applied to various surfaces. It is made up of micro LED lights connected by a printed circuit board (PCB) that allows it to display high-resolution images and videos.

Adhesive Transparent LED Film, as the name implies, is a thin and clear film that can be applied directly to a glass surface. The film comprises of thin and flexible layers, allowing it to comply with the shape of the surface. The LED chips are mounted on the film along with the required electronics, making it ready to use when applied. The resulting display is transparent and can create a stunning visual effect.

One of the benefits of Adhesive Transparent LED Film is that it is lightweight and easy to install. It can be cut to any size and shape, making it ideal for a wide range of applications, from advertising to interior design. The film's transparency also means that it can be used in environments where natural light is important, such as storefronts and museums.

Another advantage of Adhesive Transparent LED Film is that it is energy-efficient. The LED lights consume less power than traditional display technologies, making it a cost-effective solution for businesses and organizations of all sizes.

Transparent LED Adhesive Film

Transparent LED Film Application

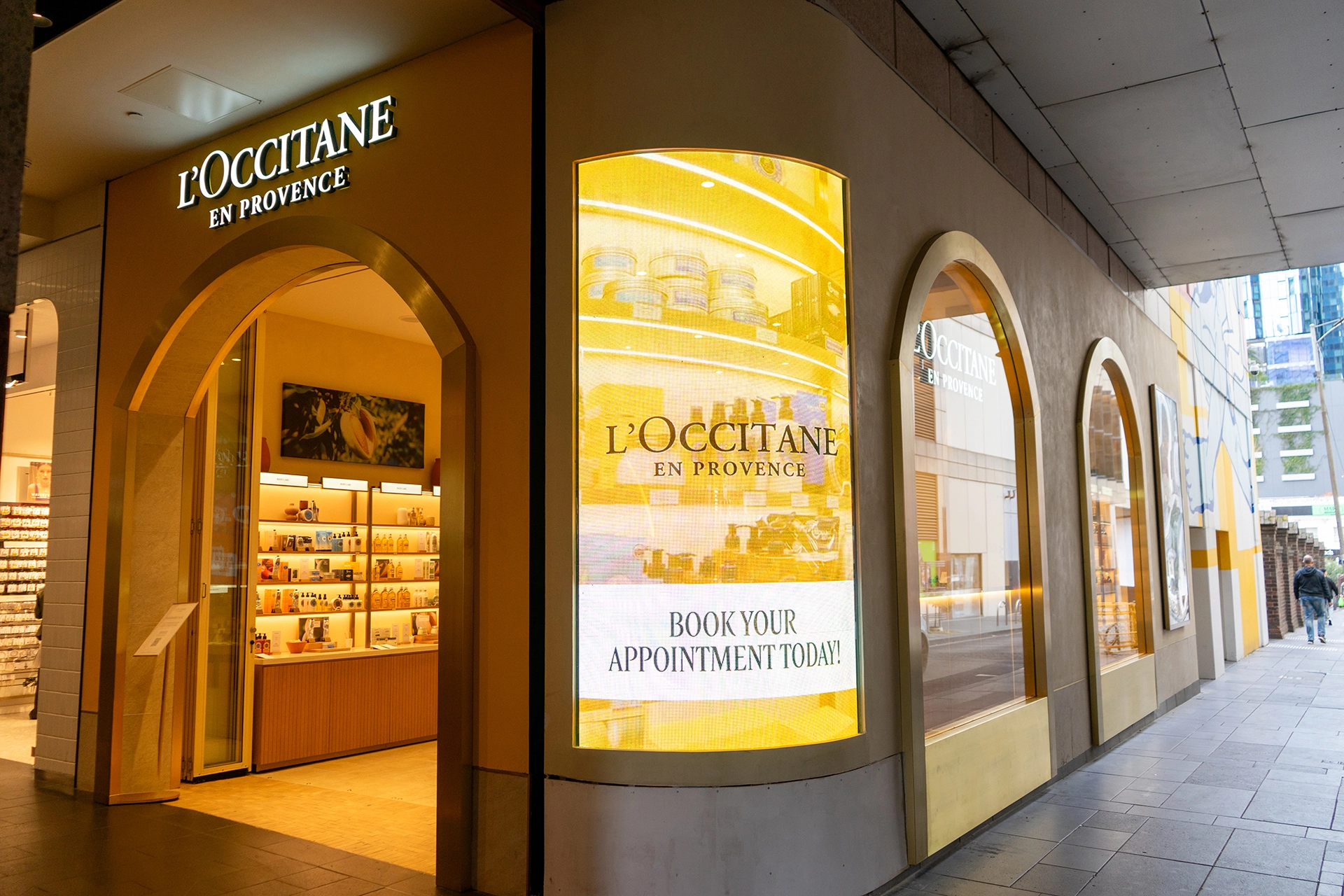

Applied Directly to Glass

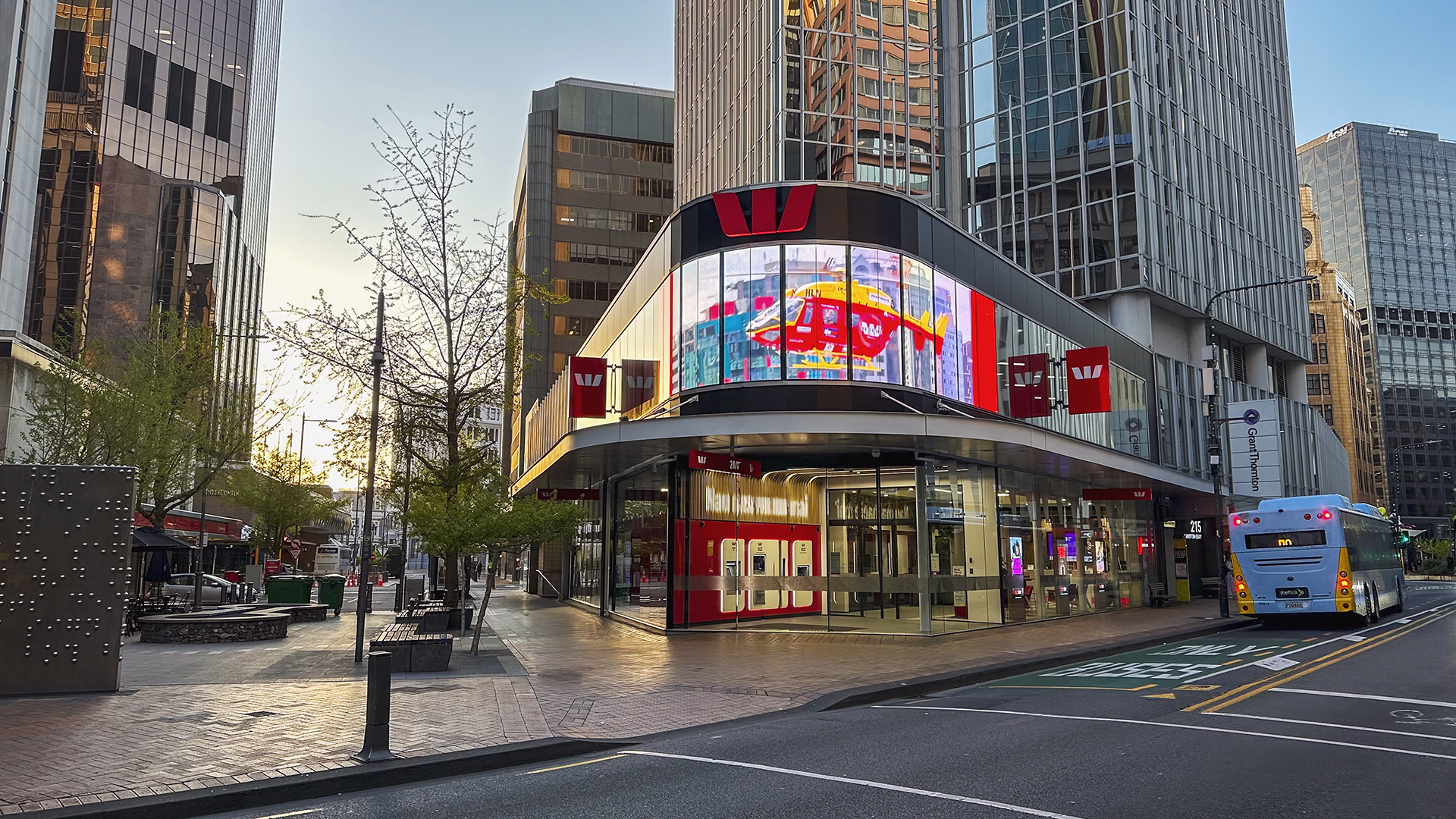

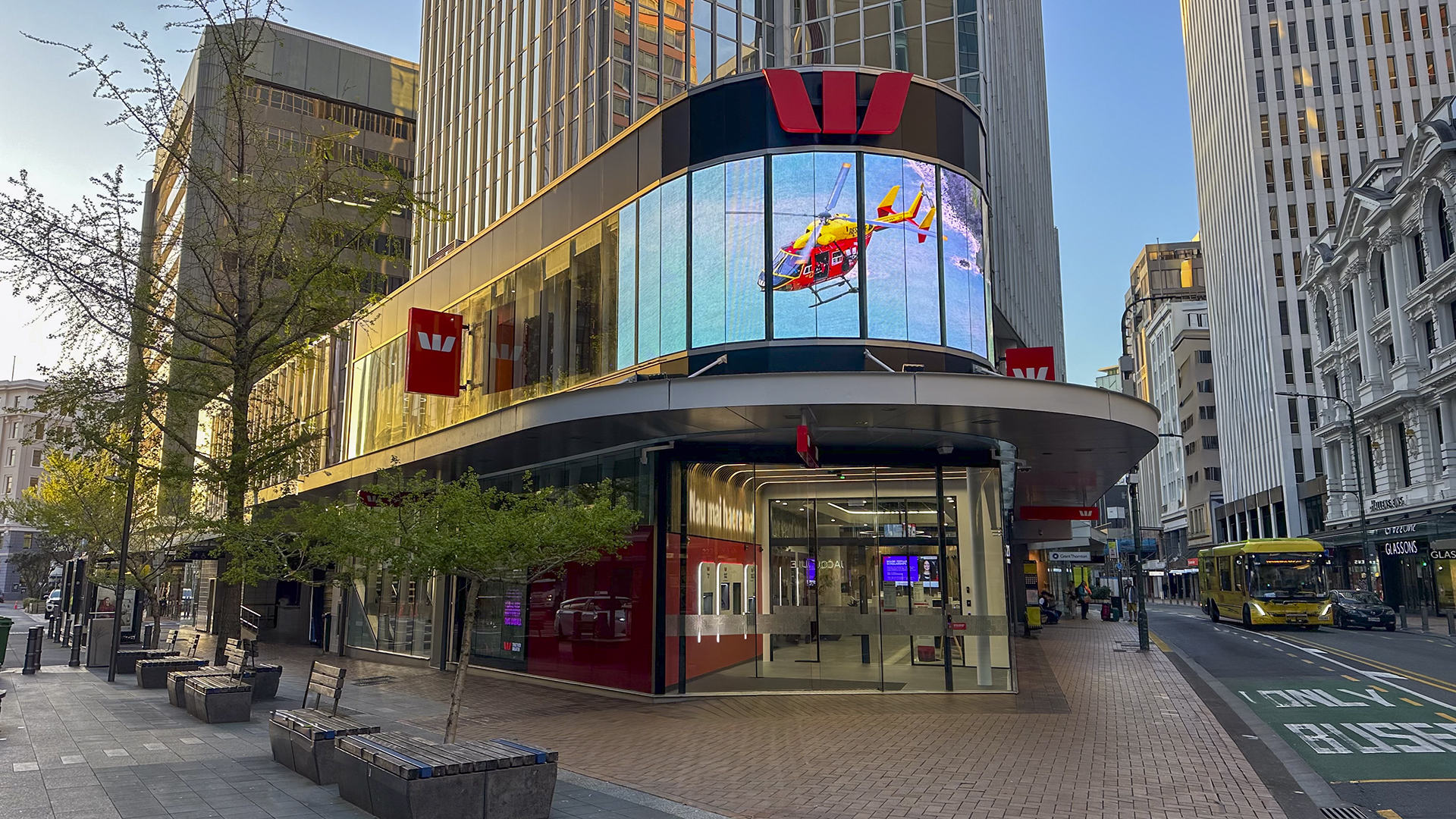

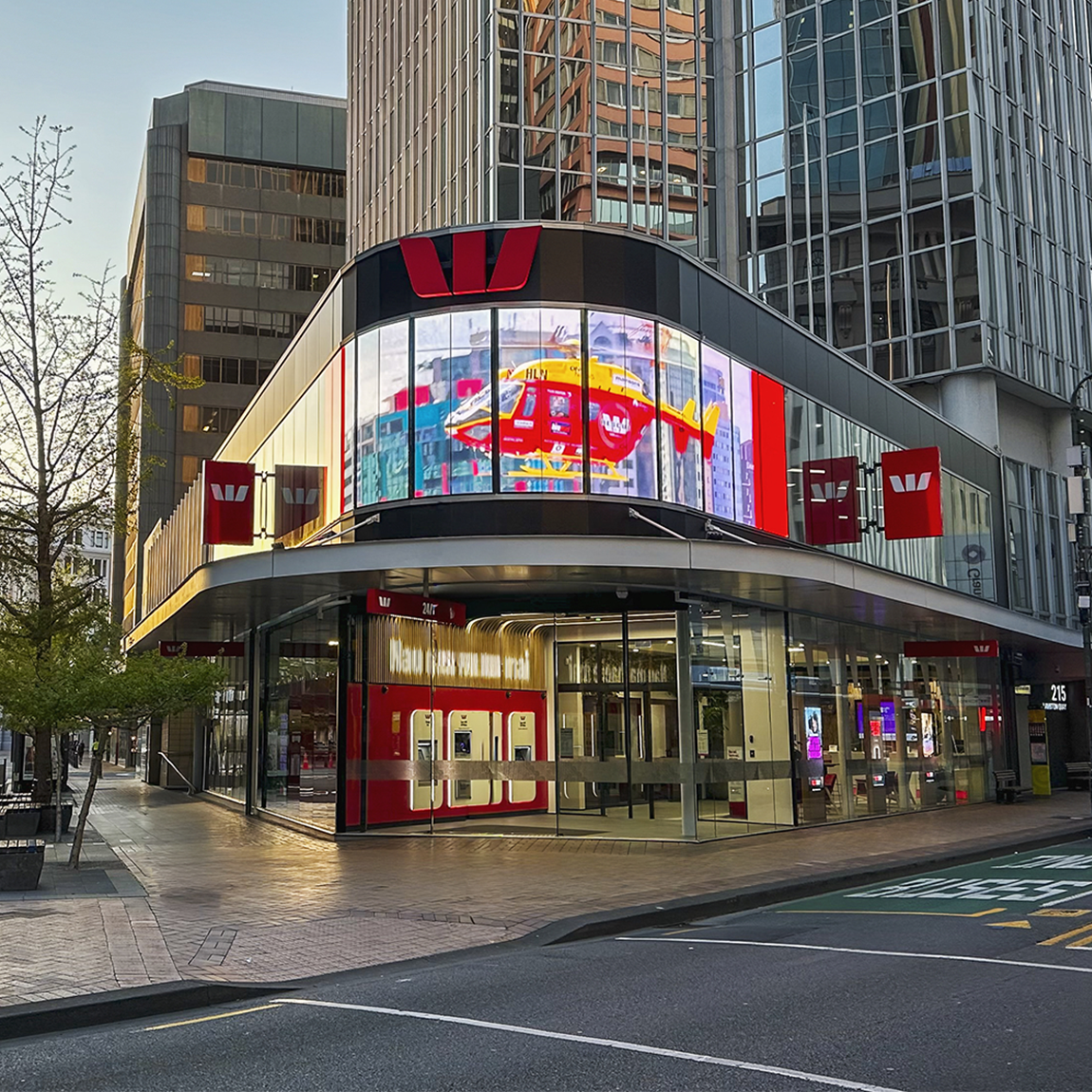

High-end materials that are extremely clear, thin, and resistant to high temperatures are employed in the construction of the Transparent LED Film. With a meticulous design, the board achieves up to 90% transparency. The screen body, which does not require a structural skeleton, can be seamlessly assembled horizontally and vertically, reaching display dimensions of 2.4 metres in height or width. This versatile LED film is ideal for commercial windows, glass curtain walls, and various indoor and outdoor settings.

Module dimension:M3.91/M6

Control Box

Transparent LED Adhesive Film

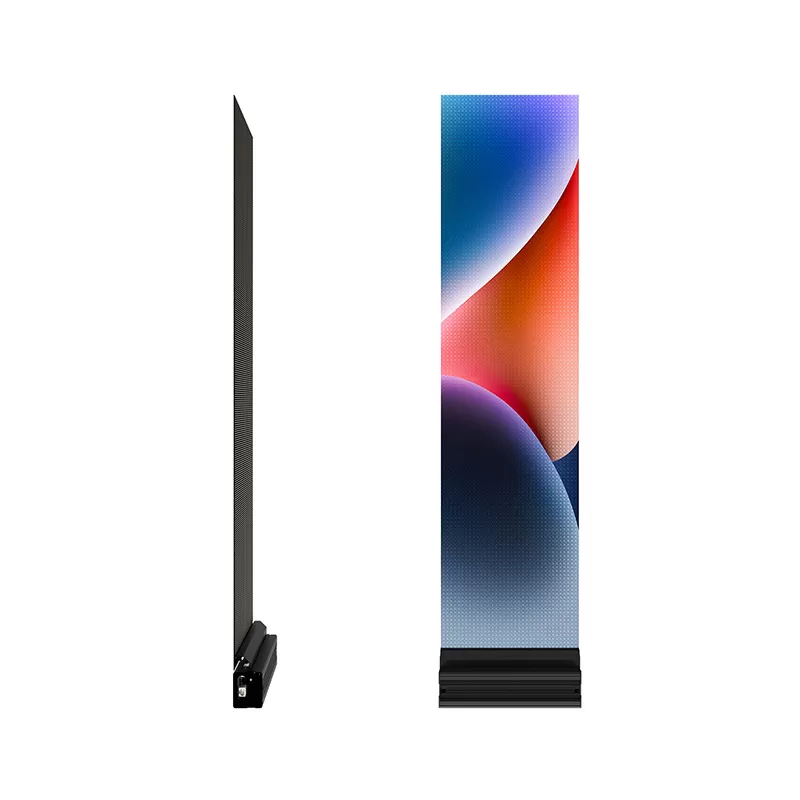

Floor Standing

We offer an alternative LED poster design that is freestanding and portable. The display modules can be easily added or removed to accommodate different usage environments such as exhibitions, stages, and other scenarios.

Hanging Up

Additionally, we have a hanging option available that is lightweight and effortless to install. It is ideal for stage performances, door curtains, and other advertising scenes.

External dimension:1000*2000mm

External dimension:2000*2000mm


Statement: The relevant parameters in the table are subject to real-time update, and the data is for reference only.
Upgrade will be made without further notice.

System Topology

  • Signal Line
  • Audio Line
  • Available Function

Synchronous function and asynchronous functions are optional or both are available at the same time

Transparent LED Film Specifications (Floor Standing & Hanging)

Item M3 M3
Size (mm) 1000*2000 2000*2000
Pixel Pitch (mm) (horizontal / vertical) P3.91/P3.91 P3.91/P3.91
Pixel Density (dot/m2) 65536 65536
Profile Dimension (mm) (w*h) 1021x2452x500 2021x2452x500
Display Dimension (mm) (w*h) 1000x2000 2000x2000
Resolution (dot) (w*h) 256x512 512x512
Weight (kg/set) 37 58
Brightness(cd/m2) 4000
Encapsulation Type Light Board & Driving Board Integrated
Scanning Mode Static Driving (Single pixel single control)
Lifespan ≥ 100,000.00 hours
Pixel Configuration RGB 3-In-1
Grey Scale 65536(16bit)
Average Power Consumption (w/m2) 280
Maximum Power Consumption (w/m2) 800
Control System Colorlight / Novastar
Connection Type Supporting WiFi / DVI / HDMI / DP / USB / RJ45 / Network Remote Control(Based on the controller model)
Input Voltage AC100~240V 50/60Hz
Working Voltage for Module DC4.2~5V ±0.2V
Frame Material Aviation Aluminum Alloy
Maintenance Way Front
Installation Environment Indoor
Working Temperature & Humidity Temperature: -20~40°C Humidity: 10%-90% (Without condensation)
Working Temperature & Humidity Mobile Frame

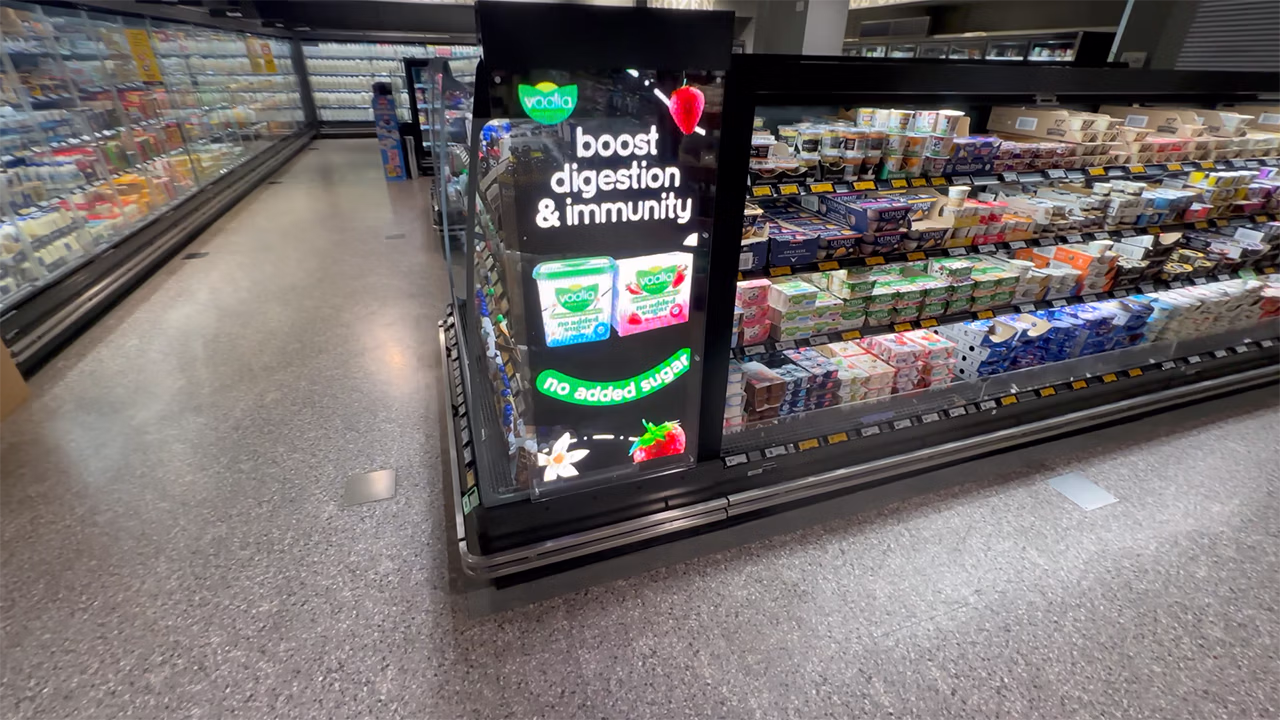

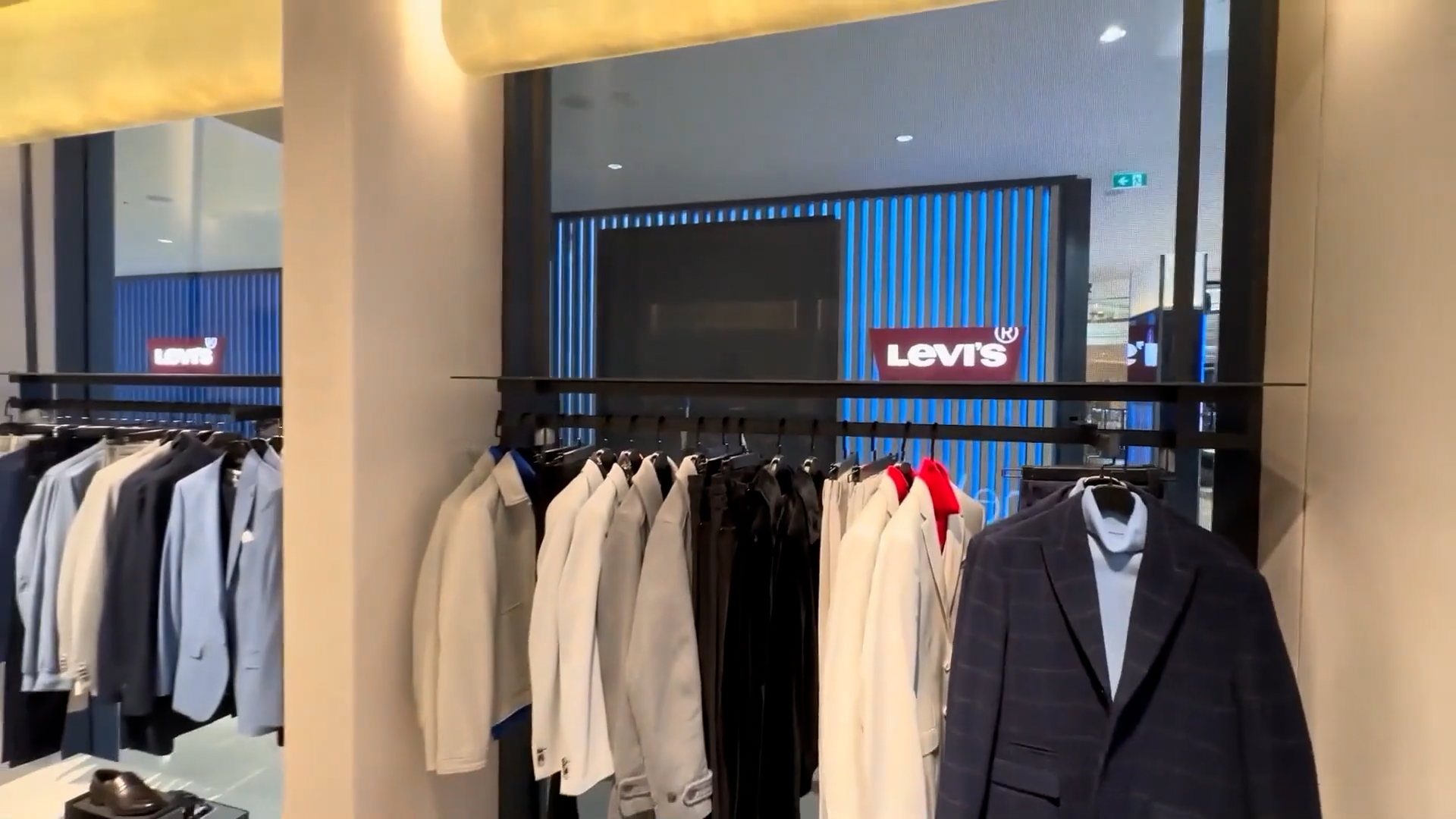

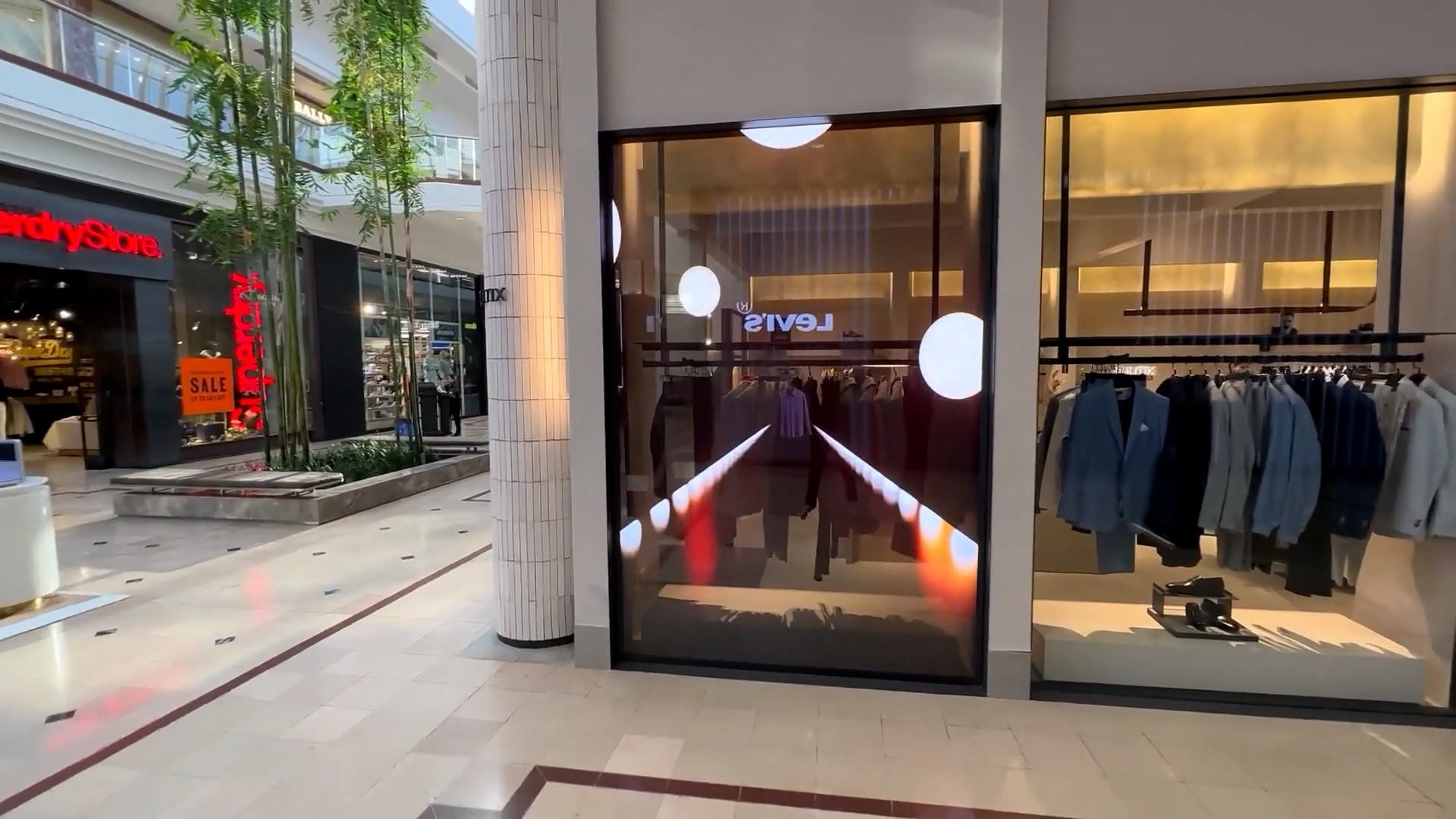

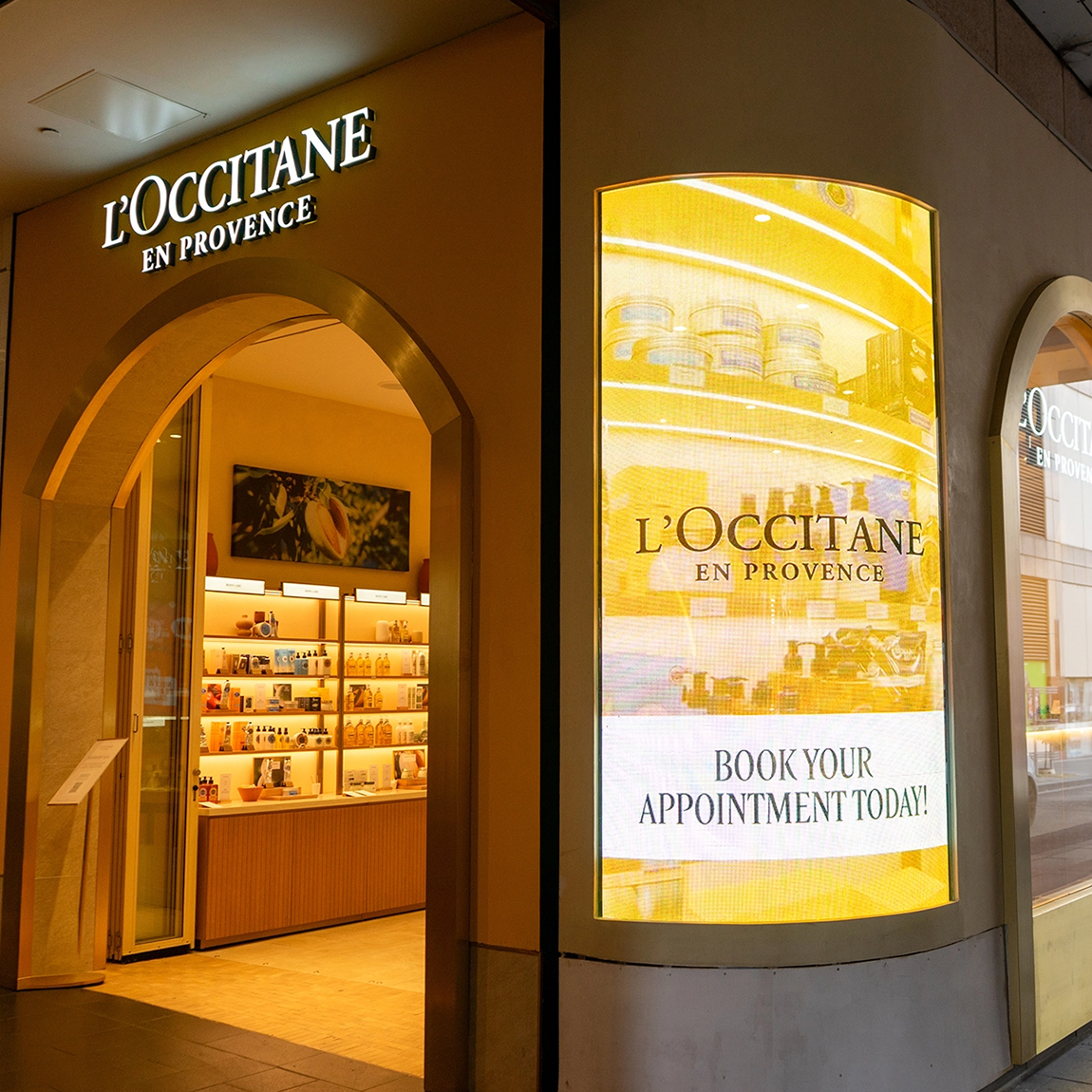

Widely used in creative displays, shopping malls, retail windows, exhibition displays and other commercial premises

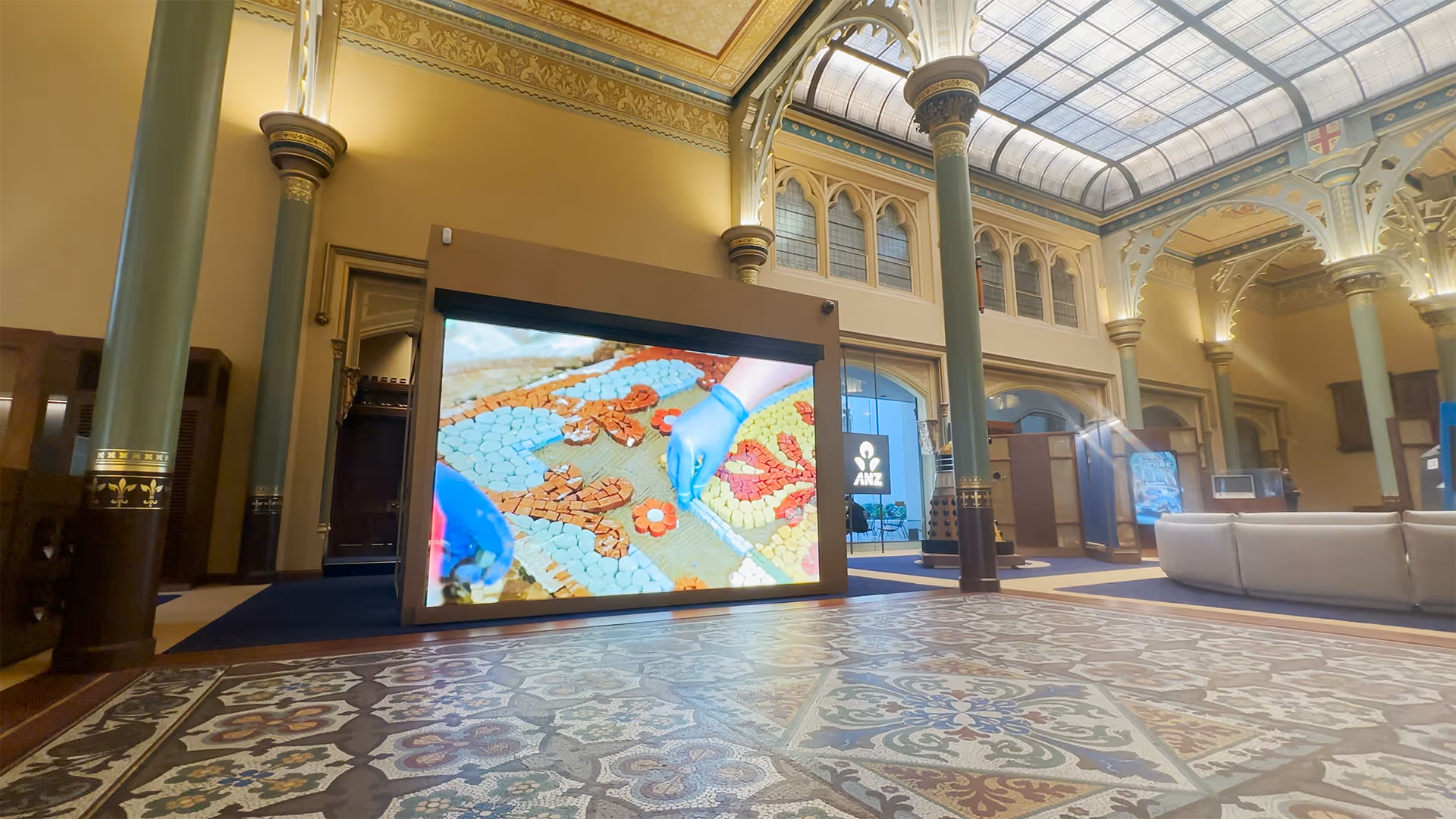

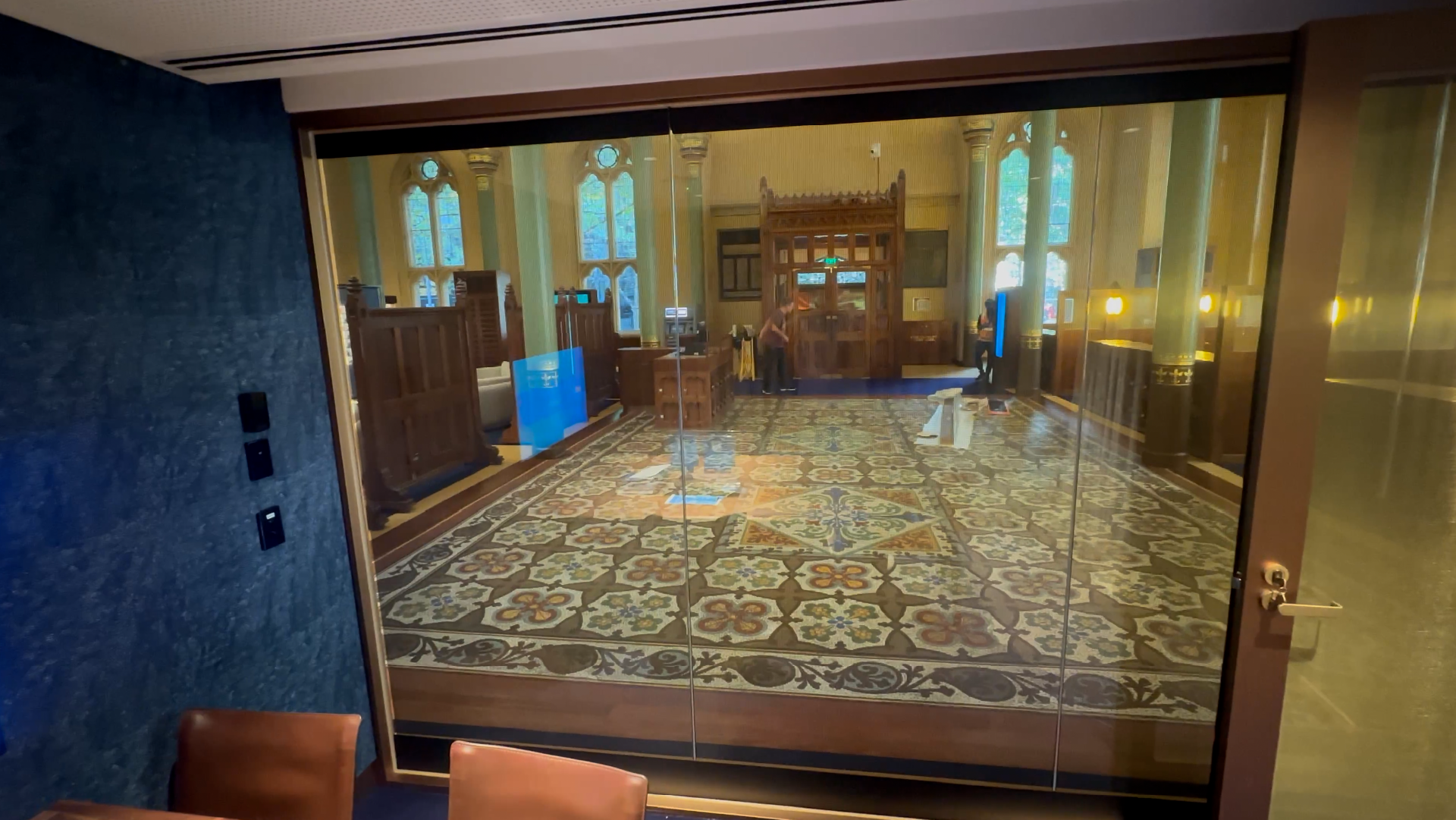

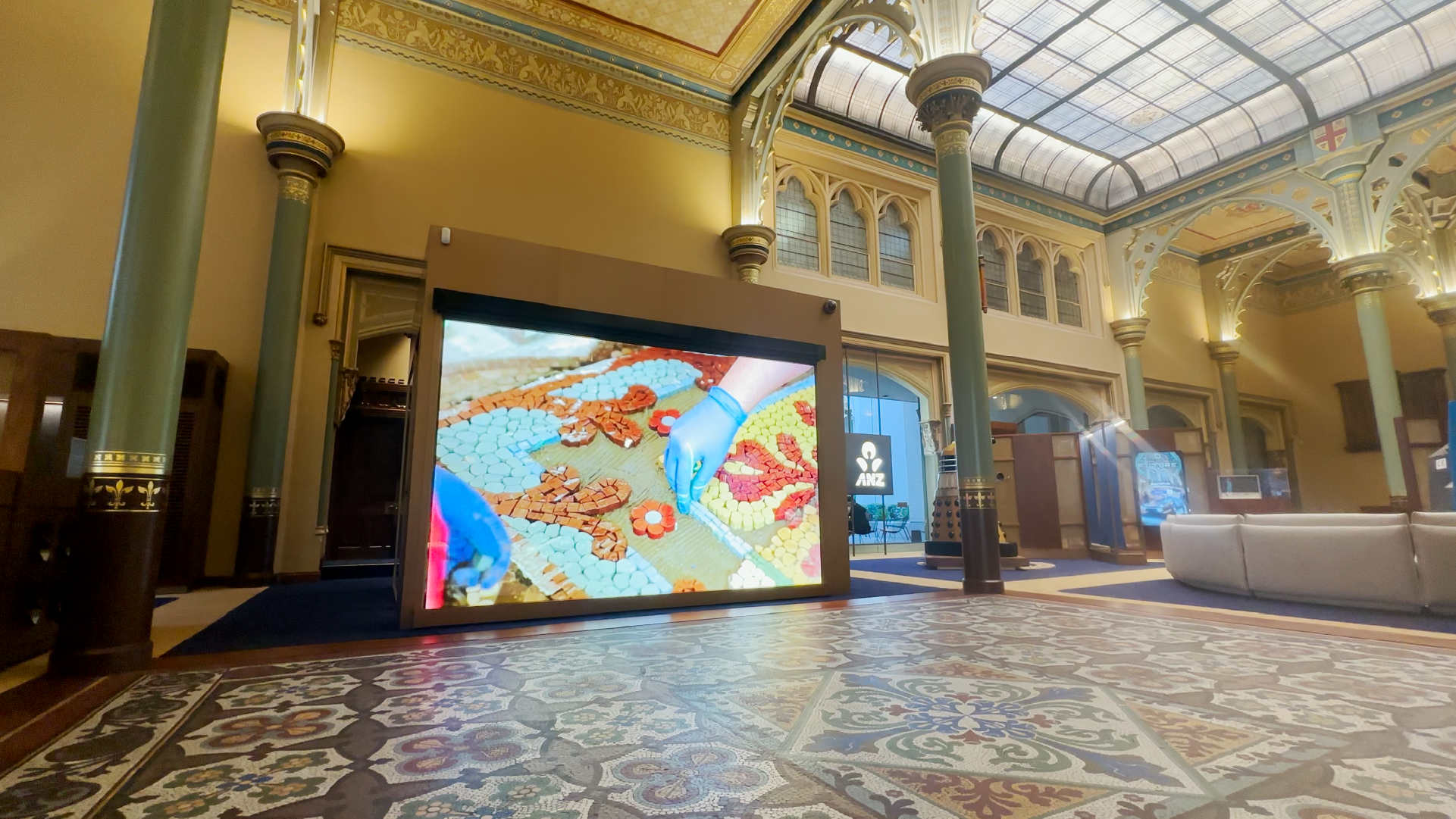

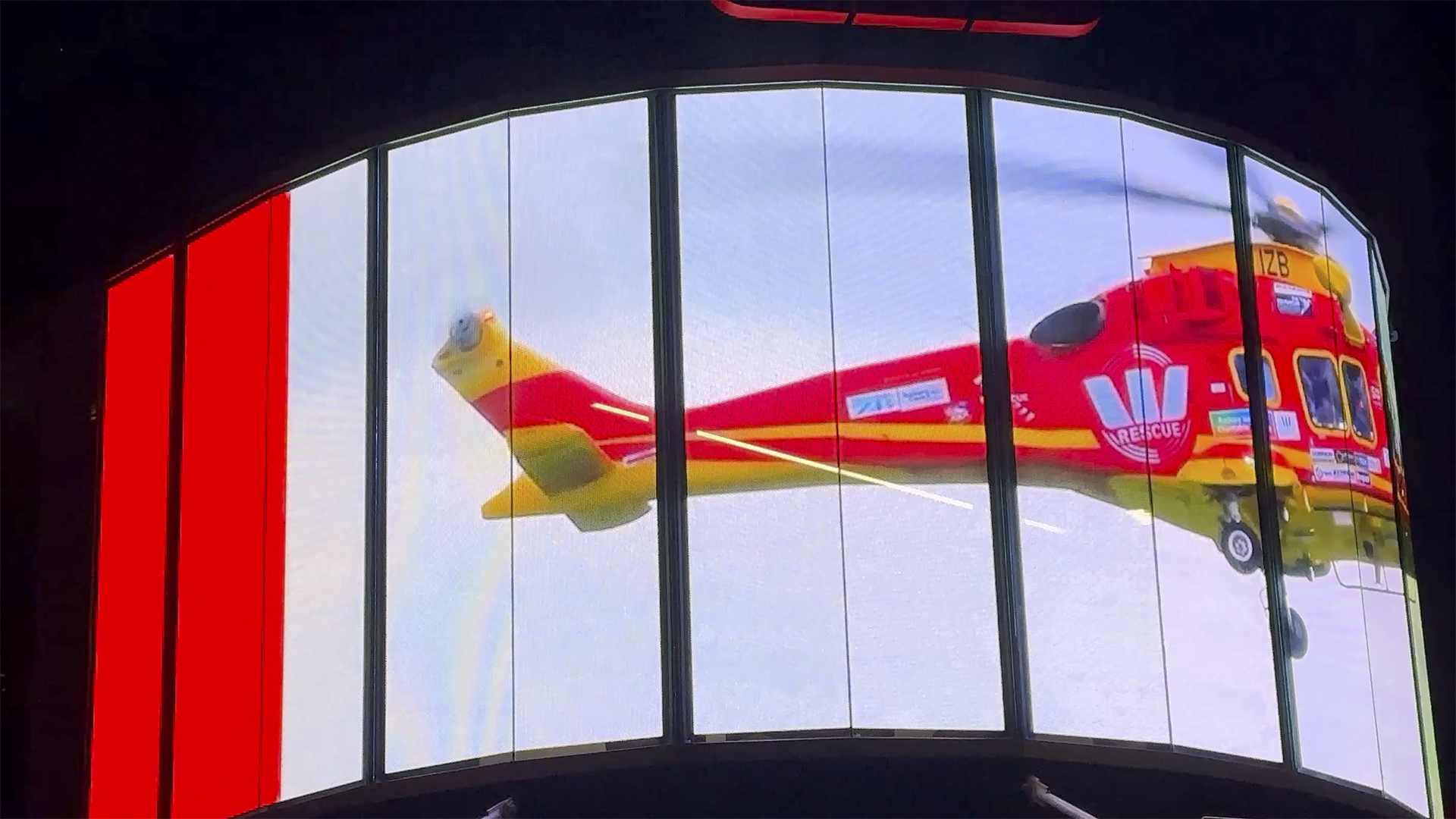

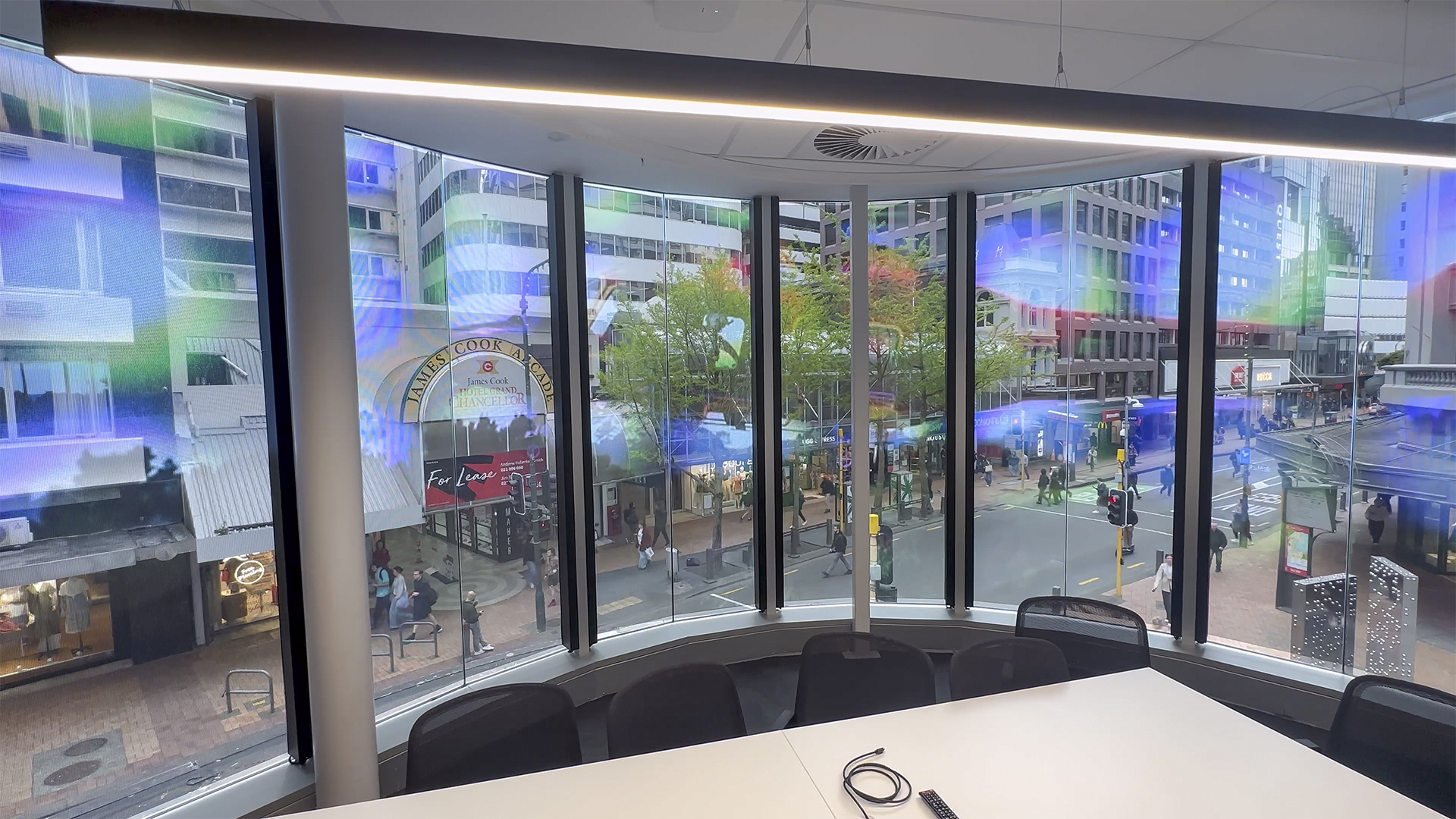

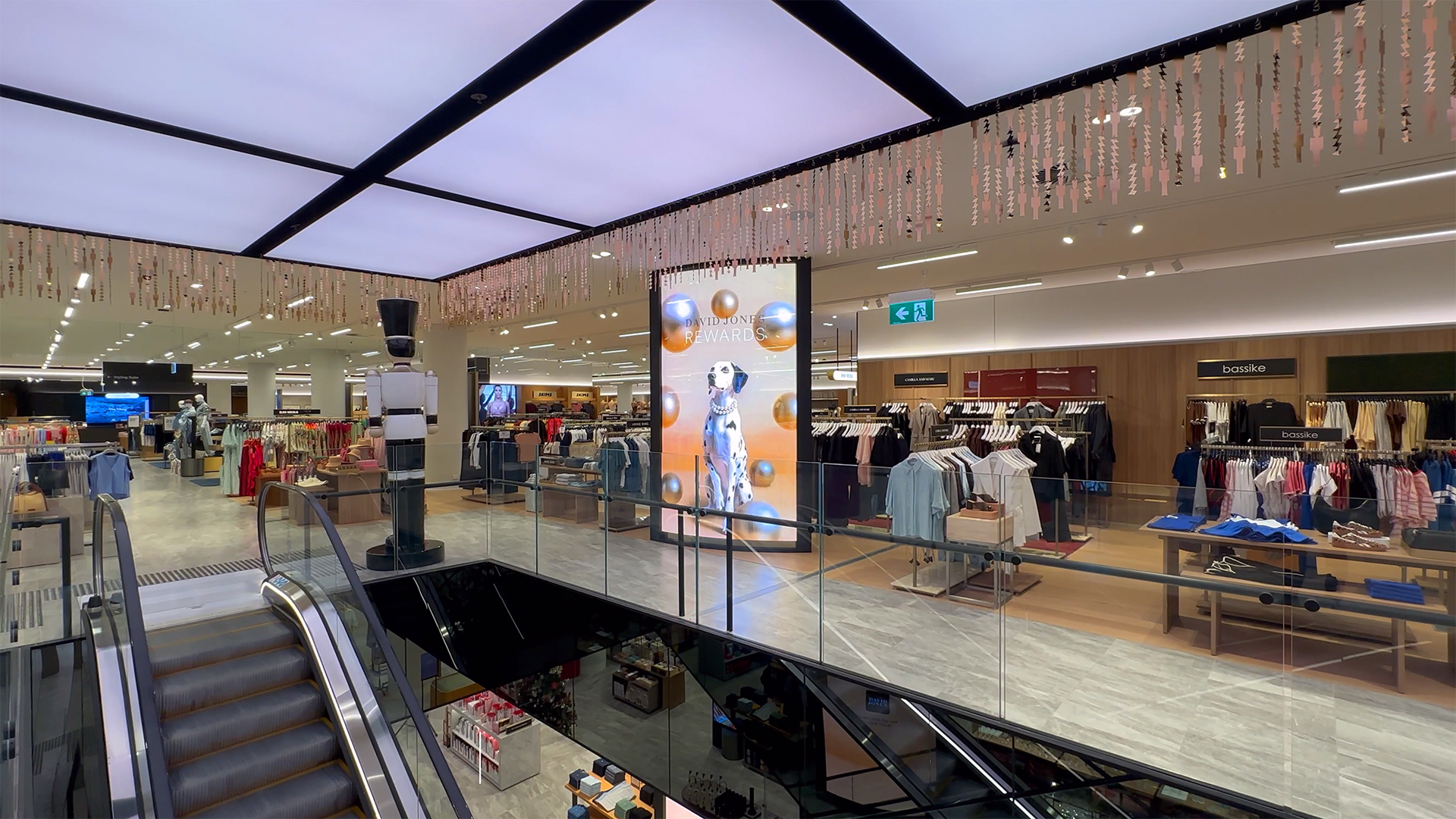

Project Videos

Product specs

Installation Videos


1. How is Transparent LED Film installed on to the glass ?

Please click on this link to view the installation video -

2. What is the maximum width and height of Transparent LED Film?

The single led module size for our M3 (3.91mm pitch) is 250mm(W) x1000mm(H) or 250mm(W) x1200mm(H), the maximum screen height for our M3 is 2.4m.

The single led module size for our M6 (6.25mm pitch) is 250mm(W) x1200mm(H) or 250mm(W) x1500mm(H), and the maximum screen height for our M6 is 3m;

There is no limitation of the screen width for M3 or M6 model. If the screen height exceeds 2.4m/3m in height, there will be control box bar which will need to be installed at the intersection every 2.4m/3m in height. This control box bar can also be installed vertically and the maximum width before each additional vertical control box would therefore be 2.4m/3m

3. Can the Transparent LED Film be installed on the backside of the glass or acrylic?

Yes, you can. The Transparent LED Film can be adhered to the front of the glass/acrylic or backside of the glass/acrylic

4. Can this product be used outdoors?

The Transparent LED Film is not weather rated for outdoor use. It is however High Brightness (4000-5000 nits) and can be viewed under direct sunlight when installed behind a window /glazing

5. What type of adhesive does the film use and can the element/panel be removed easily from the glass after us

It's a transparent and patented adhesive. The led module can be removed easily however it is primarily for fixed installations and it is not recommended to remove and re-install the led modules repeatedly. The maintenance is easier than traditional led screens and you can use a soldering iron to change the defective led pixels or send these back to the factory for professional repair

6. How does the Transparent LED Film perform in a extreme heat or cold environment

The Transparent LED Film has been tested in conditions of +50°C and -20°C without issue or failure

7. Have you tested the Transparent LED Film and LED pixels you use in a high UV-radiation environment and can it still work reliably for a long time?

Yes. The Transparent LED Film comes with a 2 year Warranty and is rated for at least 100,000 working hours

8. Is it possible to have the element/panel with transparent plastic power box instead of black as an option?

No transparent plastic power box is currently available but other colours like white can be customized and supplied
